PET Plastic Glass 3 In 1 Monobloc Gas Drink Beverage Water Wine Bottling Machine / Equipment / Line / Plant / System

PET Plastic Glass 3 In 1 Monobloc Gas Drink Beverage Water Wine Bottling Machine / Equipment / Line / Plant / System

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: DCGF12-12-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 20000-50000USD
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Dimension(L*W*H): 2250*1650*2250mm Automatic Grade: Automatic
Weight: 2500KG Power: 4.4KW
Packaging Type: PET Plastic Bottle Capacity: 2000-3000BPH
Highlight:

soft drink bottling equipment

,

csd filling machine

Product Description

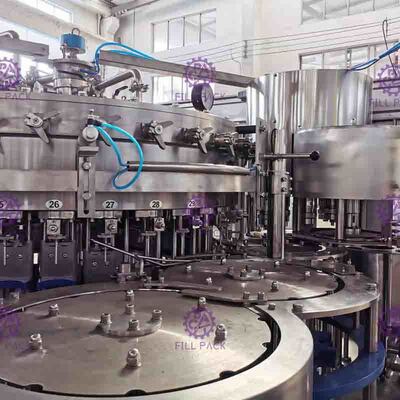

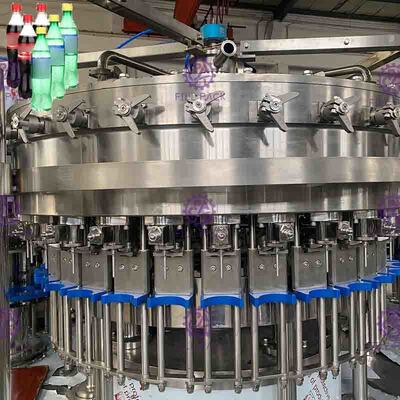

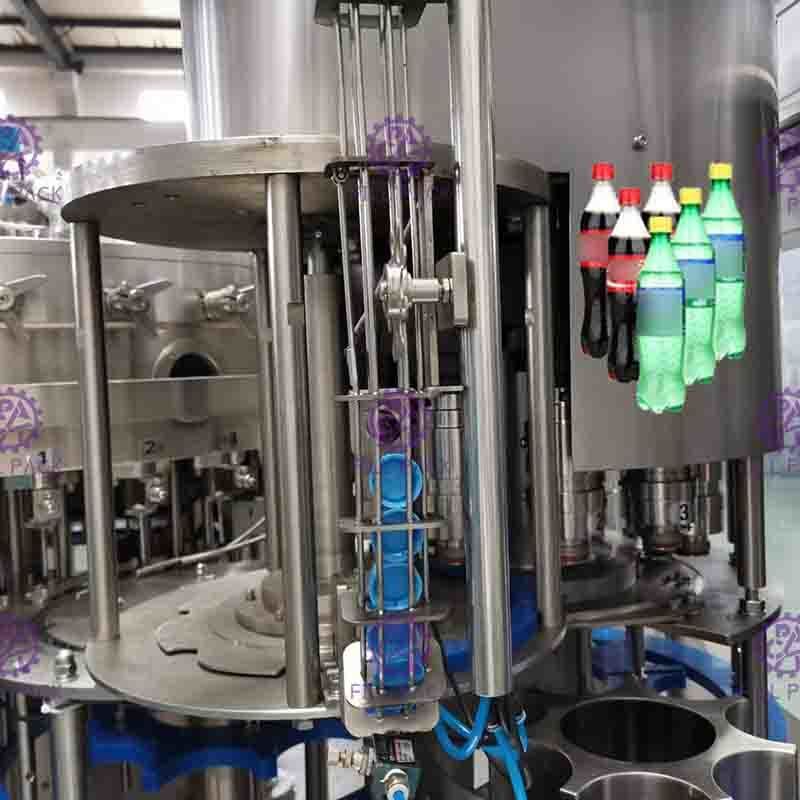

Description of DCGF18-18-6 Plastic Bottle Filling machine

Bottle Filling
1) The rotate plate is made of SUS 304, large flat toothed bearing. 2)The filling system has a CIP circulation system to wash the pipeline. This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.
3) This filling system has an automatic temperature control system.

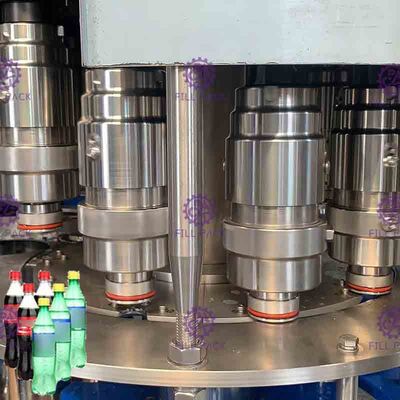

4) The filling valve opens and begins filling whenthe pressure is balance between inside bottle and liquid tank, the filling valve move up and leave the bottleneck when it finishes filling.
5) The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.
PET Plastic Glass 3 In 1 Monobloc Gas Drink Beverage Water Wine Bottling Machine / Equipment / Line / Plant / System 0
PET Plastic Glass 3 In 1 Monobloc Gas Drink Beverage Water Wine Bottling Machine / Equipment / Line / Plant / System 1

Teachnical parameters of DCGF12-12-4
Filling precision
≤+/-1mm(liquid level)
Filling pressure
≤0.4MPa
PET bottle specification
(Bottle diameter)50-115mm (Height)160-320mm
Suitable cap shape
Plastic or other material screw cap
Filling temperature
0℃—5℃

Our family of plastic bottle carbonated filling machine
There's always one suitable for you
Model
Rinsing filling capping heads
Capacity(BPH)
Power(kw)
Weight(Kg)
Dimension(mm)
DCGF12-12-4
12/12/4
2000-3000
4.4
2500
2250*1650*2250
DCGF18-18-6
18/18/6
3000-5000
5.2
3500
2600*1965*2250
DCGF24-24-8
24/24/8
5000-7000
6.2
4500
2980*2200*2250
DCGF32-32-10
32/32/10
7000-10000
6.2
6000
3880*2200*2250
DCGF40-40-12
40/40/12
10000-15000
7.5
7200
4000*2250*2500
DCGF50-50-15
50/50/15
16000-20000
11
10000
5500*2250*2500
DCGF60-60-15
60/60/15
20000-24000
15
11500
6500*5500*2550

If you need glass bottle carbonated filling machines, please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.

Auxiliary equipment


Warmer Bottle Machine
1/Mainly for cooling and sterilization
2/The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
3/Nozzles are manufactured using U.S. technology and spray water evenly
4/Conveyor belt adopts Rexnor technology, flat surface with small wear
5/Smooth and reliable operation with low energy consumption.



Automatic labeling machine
1/Heat shrink sleeve labeling machine
2/OPP Hot melt labeling machine
3/PVC label stick labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
