Soft Beverage Carbonated Drink Filling Machine Line Glass Bottle Crown Cap 1000BPH
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | QS-12/DG-12/FXZC-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 17050USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 15 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 Sets Per Months |
|
Detail Information |
|||
| Capacity: | 1500BPH | Bottle Type: | Glass Bottle |
|---|---|---|---|
| Cap Type: | Crown Cap | Filling Material: | Carbonated Drinks |
| Filling Heads: | 12 | Filling Accuracy: | ±1mm |
| Filling Pressure: | 0.2-0.3Mpa | Applicable Bottle: | D<90mm,H<300mm |
| High Light: | Carbonated Soft Drink Filling Line,1000BPH Carbonated Soft Drink Filling Line,0.2Mpa Carbonated Drink Filling Machine |
||
Product Description

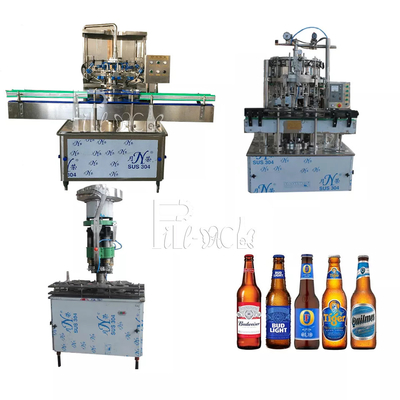

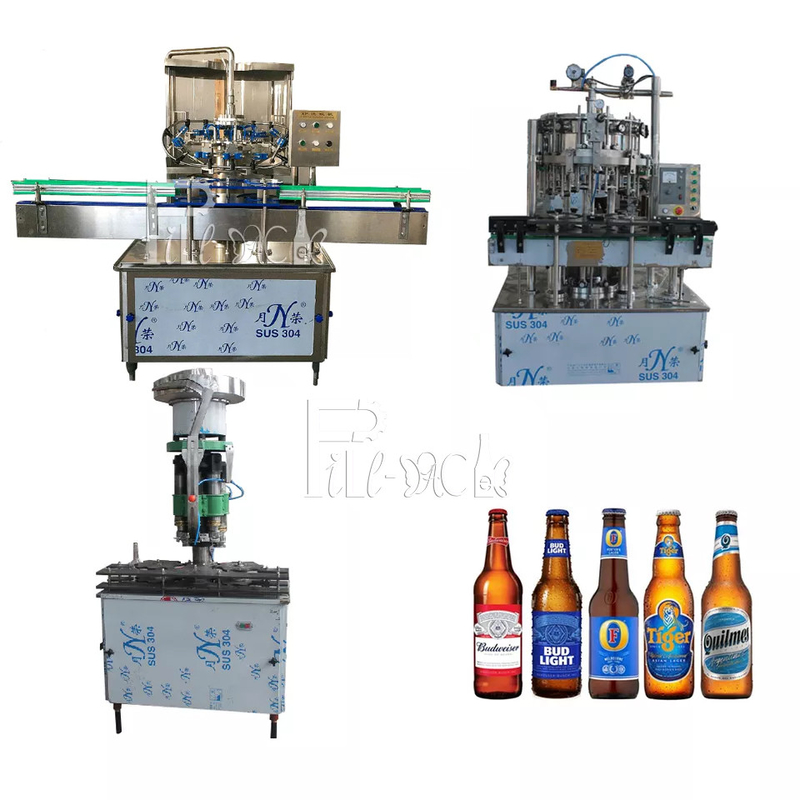

1000-1500BPH 0-2L Fully Automatic Glass Bottle Crown Cap Soft Drink Beverage Carbonated Drink Filling Machine Line

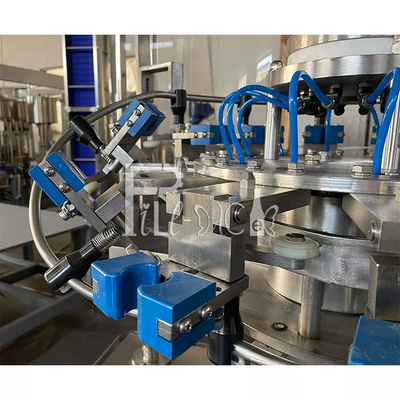

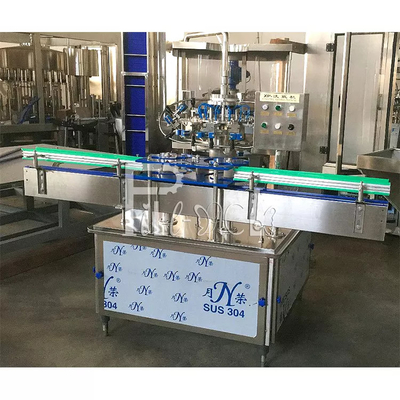

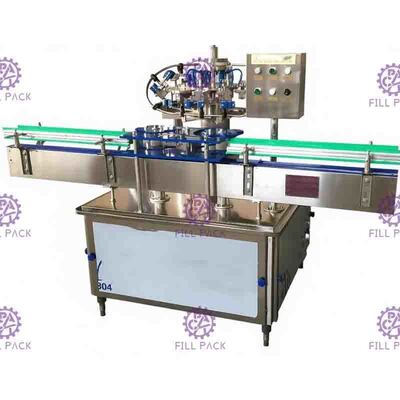

Rotary bottle washer:

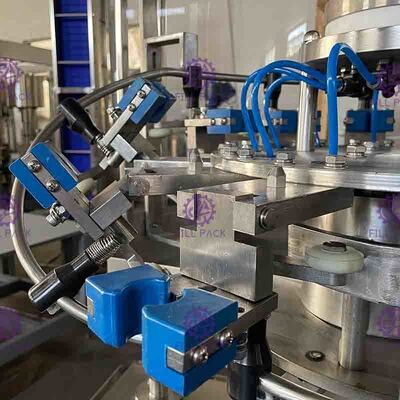

Principle: This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The rinser is the ideal choice for drink factories of small and middle size. The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station. The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.
Parameters:
Rising heads: 12 pcs
Applicable bottle: D∮50-100mm,H 50-350mm
Capacity: 0-3000BPH (each bottle rinsing time 4s)
Power: 0.92KW Dimension: 1050*1050*1900mm
Weight: 450KG

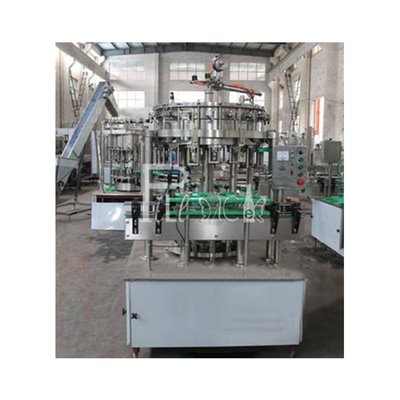

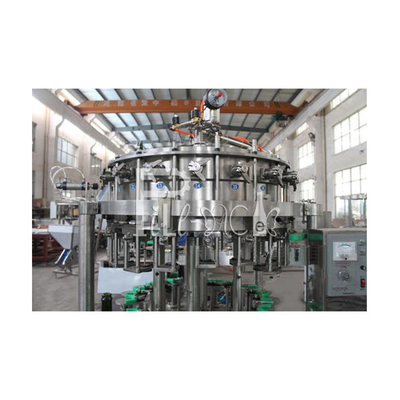

Filling part:
This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling gas-containing drink, such as aerated water, cola sparkling wine , fruit tea and so on .It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The filler is the ideal choice for drink factories of small and middle size.
|
Model :
|
DG -12
|
|
Production Capacity:
|
1000-2000b/h
|
|
Bottle /standard:
|
Glass bottle , PET bottle , Pop-top can
|
|
Applicable bottle:
|
D∮90mm,H<300mm
|
|
Filling Pressure:
|
0.2-0.3Mpa
|
|
Filling Temperature
|
2-6 ℃
|
|
Power:
|
1.1kw
|
|
Overall Dimensions:
|
1100×1050×1800 mm
|
|
Weight :
|
1000kg
|

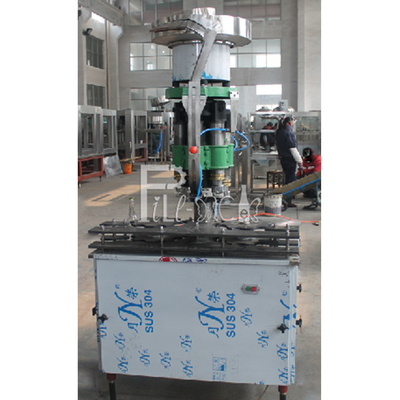

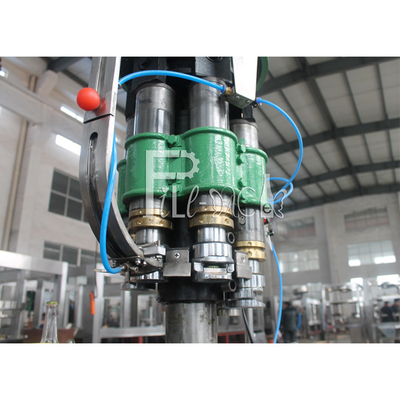

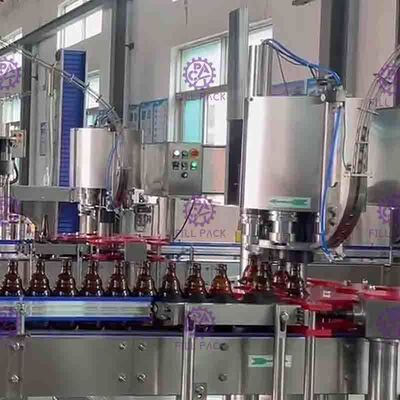

Capping part:
General specifications: The machine is sued for high speed crown capping for glass bottles; The machine is set with bottle dia-plate for automatic bottle entrance; Workers put caps into cap loader, Oscillating coil will unscramble and load bottle automatically, with help of compressed air, caps will load correctly to capping head; By the main motor driven energy, the capping tube move up and down to finish the capping job; When one bottle capping finish, the spring in the capping tube will flick off the done bottle and start for a new one; Comparing with 2000BPH capper, this one is using adjustable speed motor to control speed, and transmission part develop to upgrade speed also; The machine is produced with high quality SUS304, is with reasonable construction, easy for bottle change, easy for maintenance;
Parameters:
Capacity: 0-2300BPH
Capping head: 6 pcs
Capping tube stroke: 58mm
Applicable bottle: glass bottle, mouth<27mm
Applicable cap: crown cap, cap height 6.6±0.05mm, cap thickness 0.28±0.02mm
Main motor power: 1.1KW
Oscillating coil: 0.3KW
Suggested compressor: 0.6m3/min 0.7Mpa
Dimension: 950*850*2400mm
Weight: 500kg
Construction and function:
1, Frame desk, to support;
2, Cap loader, to make disordered caps loading into cap loading rail in order, and make sure cap mouth face to floor, inversed caps will be eliminated;
3, Cap sealing system, to sealing automatically when cap loading on bottle mouth;
4, Conveyor rail;
