Home Products5 Gallon Water Filling Machine

Bucket / Barrel / Gallon Bottle Water Bottling Equipment / Plant / Machine / System / Line

Bucket / Barrel / Gallon Bottle Water Bottling Equipment / Plant / Machine / System / Line

    • Bucket / Barrel / Gallon  Bottle Water  Bottling Equipment / Plant / Machine / System / Line
    • Bucket / Barrel / Gallon  Bottle Water  Bottling Equipment / Plant / Machine / System / Line
  • Bucket / Barrel / Gallon  Bottle Water  Bottling Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: ZhangJiaGang JiangSu China
    Brand Name: FILL PACK
    Certification: CE, ISO9001
    Model Number: QGF-200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD $40000-$60000/set
    Packaging Details: Blanket cloth or wooden case
    Delivery Time: 15-20working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Capacity: 200BPH Weight: 1500kg
    Sutabel Bottle: 5 Gallon Bottle Dimension(L*W*H): 4500*1600*2400mm
    Automatic Grade: Automatic Power: 1.75kw



    Description of our 200BPH 5 gallon filling line



    How to find a suitable 3 Gallon water equipment?
    1. The capcity of the gallon filler? How many barrels are produced per hour? How many barrels are produced per hour?We can provide 120BPH-2000BPH.
    2. Is the cover press-cap or screw-cap?
    3. You only need a gallon filler, or would you like to have a complete line containing the packaging part?



    200BPH double line barrel water filler 3 in 1 gallon bucket for mineral water
    Items
    Name of machine
    Model
    Size(mm)
    1
    Semi-auto de-capper and washer with full SUS304
    BG-1
    800*800*1200
    2
    Monoblock rinser-filler-capper with full SUS304
    CGF-200
    3400*1000*1750
    3
    Light checker
    /
    /
    4
    Roller conveyor
    /
    /
    5
    Label shrink tunnel
    /
    600*600*1000
    6
    Ink jet code printer
    PM-168
    347*220*100



    Main part for 3 Gallon water equipment

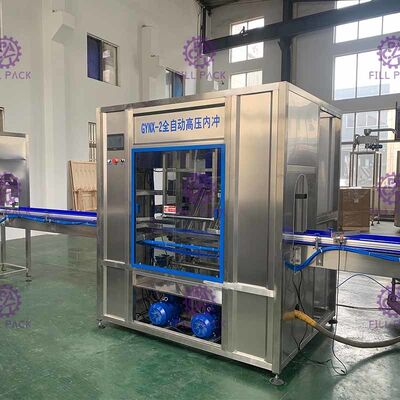

    1, Semi-auto de-capper and washer
    Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of the machine-washing position. After the jar putting in, the window need to be closed. Then the washer will be started by itself

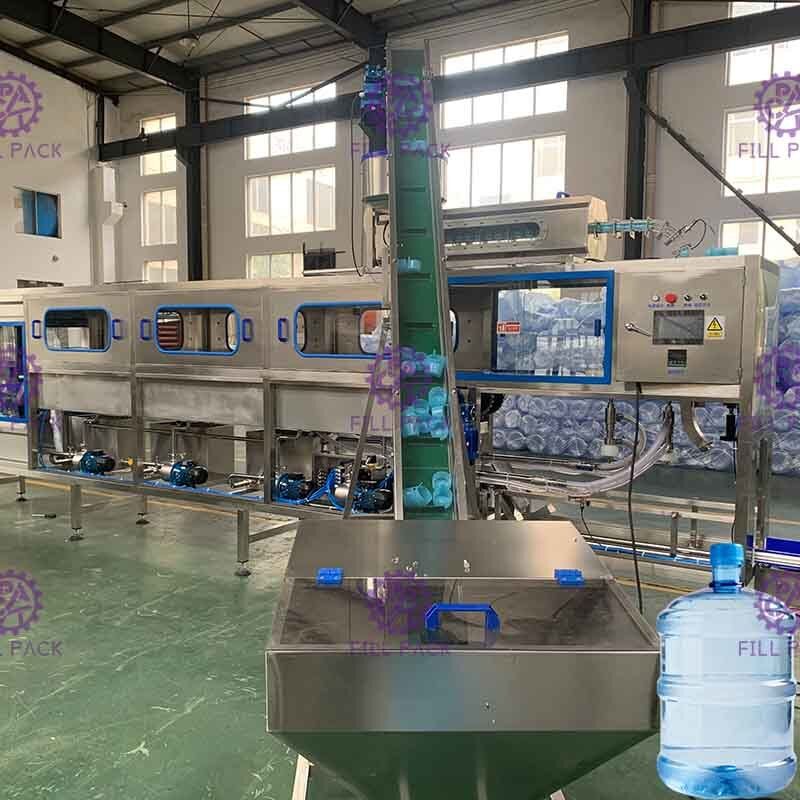

    2, Monoblock rinser-filler-capper

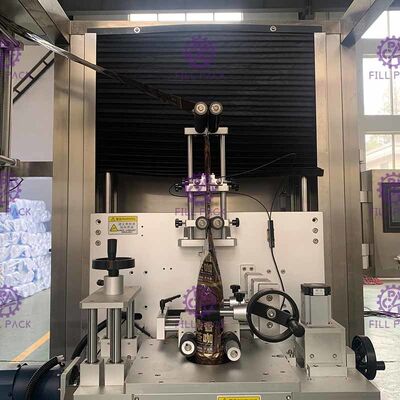

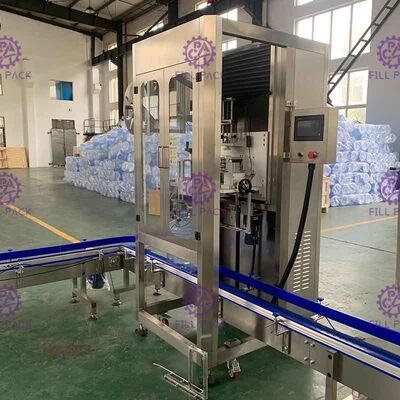

    3, Light checker, label shrink tunnel,conveyor



    Ink jet code printer
    It has a Built-in pinyin input method of national Primary and Second Chinese character(more than 6000 Chinese characters).



    Parameters for semi-auto de-capper and washer

    Parameters
    Power
    1.12KW without heating, 2.12KW with heating
    Dimension
    800*800*1200mm
    Weight
    110kg





    Parameters for monoblock rinser-filler-capper

    Parameters
    Cylinder
    Air tech-Taiwan
    Magnetic valve
    Air tech-Taiwan

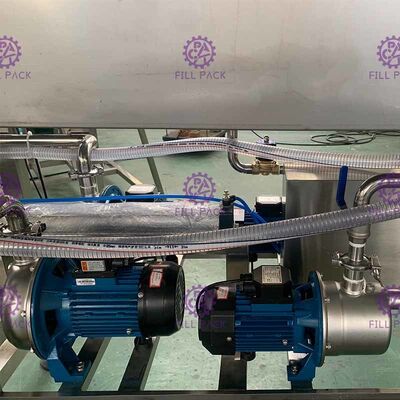

    Rising pump-filling pump
    Nanfang
    Motor
    TWT Taiwan
    PLC
    Mitsubishi Japanse
    Power
    5.3KW
    Dimension
    3400*1000*1750mm
    Weight
    500kg



    Bucket / Barrel / Gallon  Bottle Water  Bottling Equipment / Plant / Machine / System / Line

    Bucket / Barrel / Gallon  Bottle Water  Bottling Equipment / Plant / Machine / System / Line
