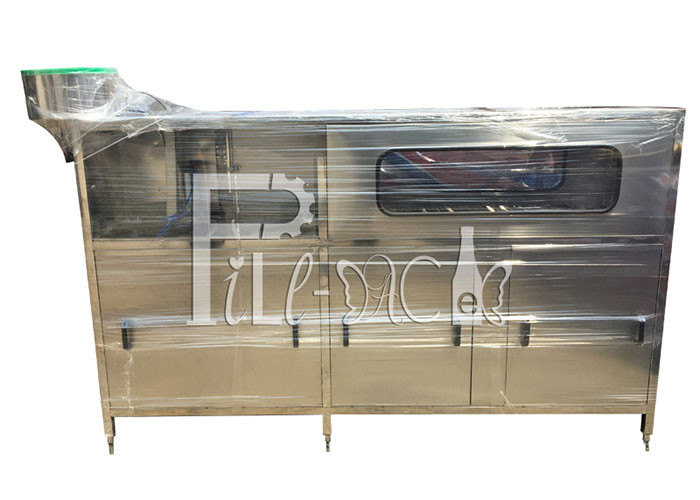

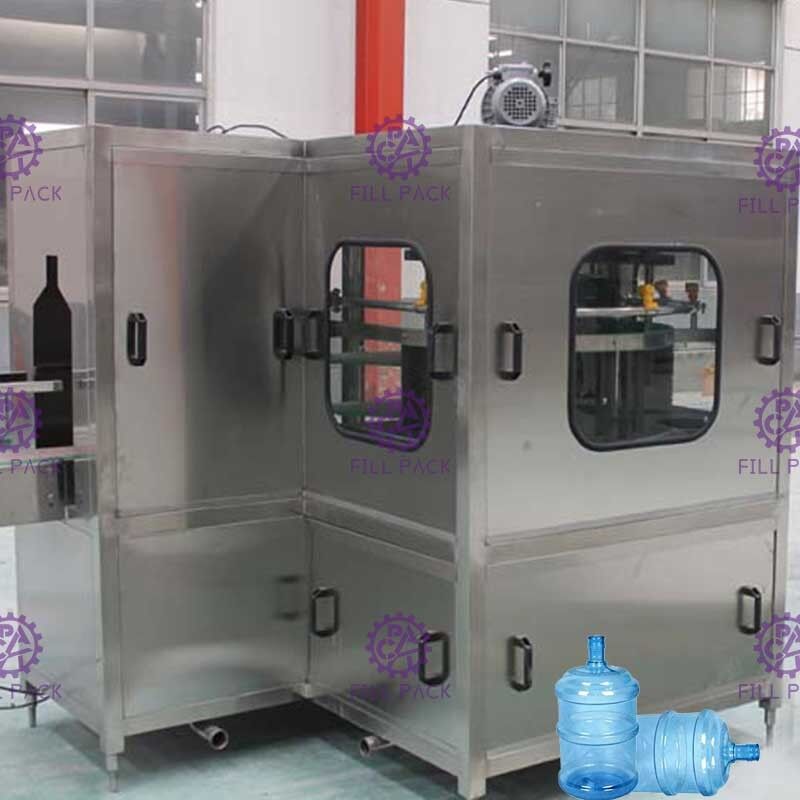

9.75Kw 900BPH 5 Gallon Water Filling Machine With Washer Filler Sealer
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FILLPACK |
| Certification: | CE,ISO |
| Model Number: | QGF-900 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Blanket cloth or wooden case package as machine need |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 30 sets/month |
|
Detail Information |
|||
| Processing Type: | 5 Gallon Bottle Filling | Material: | Stainless Steel |
|---|---|---|---|
| Capacity: | 900BPH | Sutabel Bottle: | 5 Gallon Bottle |
| Power: | 9.75Kw | Filling Heads: | 6 |
| Highlight: | 900BPH 5 Gallon Water Filling Machine,9.75Kw 5 Gallon Water Filling Machine,900BPH 5 gallon water bottling machine |
||
Product Description
Automatic 900BPH 6 lines type gallon filling machine with Nanfang pump
Gallon filling machine---Detailed parameter
| Model |
QGF-900 |
| Capacity | 900 barrels / hour |
| Filling head | 6 |
| Material | SUS304 |
| Suitable bottle | 5 gallon |
| Motor power | 9.75 KW |
| Dimension | 5000*4000*1600 |
| Weight | 3500kg |
Gallon filling machine----Product introduction
Gallon filling machine specially produces gallons bottled drinking water, whose types (b/h) are: 100 type, 200 type, 300 type, 450 type, 600 type, 900 type.

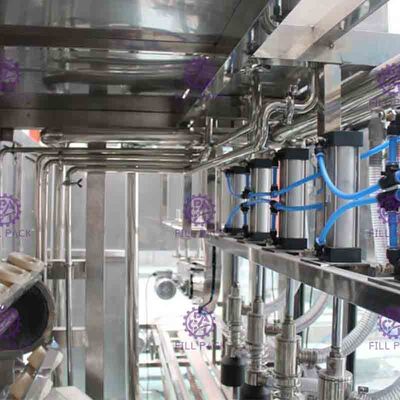

Gallon filling machine integrates bottle washer, filler and sealer into one unit, in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer. Washing solution can bo used circularly. The sealer can seal bottle caps automatically carry out bottle feeding, washing, sterilizing, filling, capping, counting and products discharging.

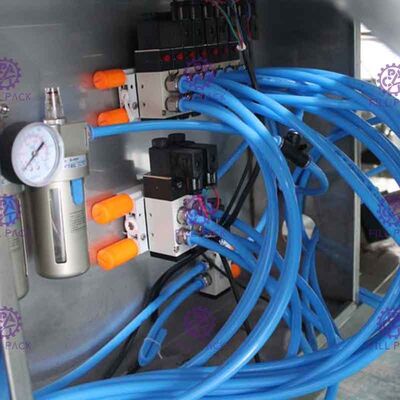

The Bottle Washer Filler and Sealer is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.
Gallon filling machine----More details
| model | production capacity | power | overall dimensions |
| QGF---120 | 120B/H | 2.8kw | 2500*900*1445 |
| QGF---200 | 200B/H | 3.3kw | 3000*1350*1560 |
| QGF---300 | 300B/H | 4.5kw | 3500*1400*1560 |
| QGF---600 | 600B/H | 5.7kw |
4500*3000*1560 |
| QGF---900 | 900B/H | 9.75kw |
5000*4000*1600 |
Advantages:
A. The device employs key components of electrical appliances and metal materials manufactured
by name brand factories from home and abroad.
B. It is not only with the advanced technology, high automatization, easy operation and reliable
performances as the genuine device from abroad, but also features with small size, small weight
and beautiful appearance,
C. Anti-corrodibility, thorough disinfection, effective anti-air pollution and high quality.
D. Available for the production of 5 & 3 gallons bottle filling, Capacity: 900B/H
E. Apply to the food & drink industry, medical industry and chemical industry widely
please kindly click the play button to watch the video
