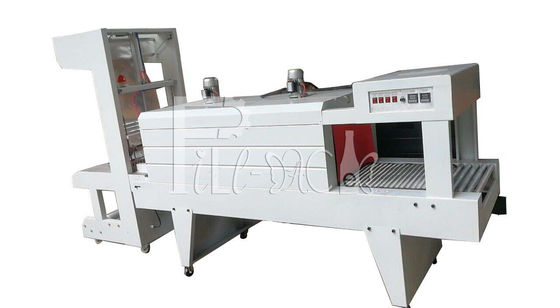

Semi Automatic PE Film Wrapping Cutting Shrink Tunnel Packing Machine

Semi Automatic PE Film Wrapping Cutting Shrink Tunnel Packing Machine

Product Details:

Place of Origin: Zhangjiagang city Jiangsu province China
Brand Name: FILLPACK
Certification: CE
Model Number: BZJ-5538,BSE-6040

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 3000-3300 PER SET
Packaging Details: WOODEN CASE PACKAGE
Delivery Time: 15 WORK DAYS
Payment Terms: T/T, , MoneyGram, D/P, D/A, L/C
Supply Ability: 15 SETS PER MONTH
Get Best Price Contact Now

Detail Information

Keyword: PE Film Wrapping Machine Machine Type: Semi Automatic
Shrinkage Film Material: PE Thermos Shrinkage Film Packing Size: 300ml-2.5L Bottles
Packing Speed: 0-5 Packs/ Min Pressure: 380/220V

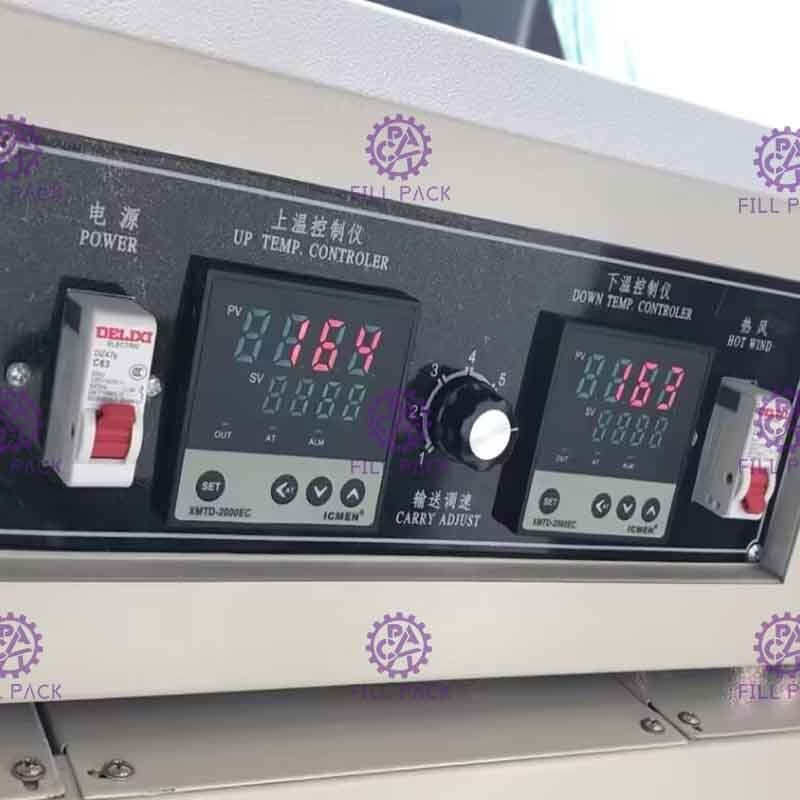

Machine Weight: 460kgs Thermo Shrinkage Tunnel Temperature: 160 - 260°can Adjust At Will
High Light:

PE shrink tunnel packing machine


wrapping shrink tunnel packing machine


PE heat tunnel shrink wrap machine

Product Description

Semi automatic PE film wrapping cutting shrink tunnel bottle packing machine


Quick Detail:

1,  Pneumatic component 1set
2,  Speed adjustment motor 1 set
3,  Stainless iron wing type heating tube
4,  Stainless steel convey belt
5,  Thermos sealing knife cast aluminum heating board has the character as even temperature, long life, is our special product.
6,  Whole machine outer plastic-sprayed, the frame is made of high-quality carbon steel, main part adopt to stainless steel.



Description & Working principles:

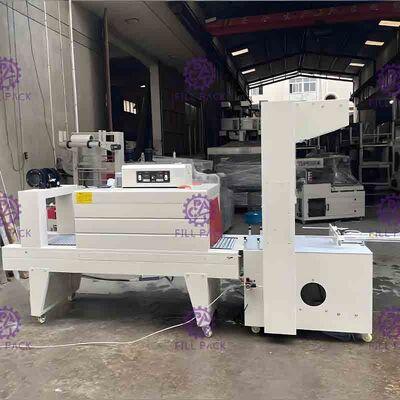

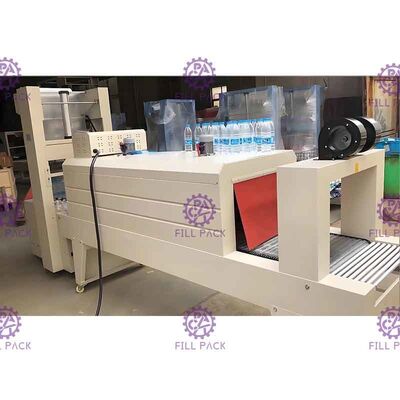

This is a combined machine, divided into two parts:PE Film wrapping-cutting unit and Pack shrink tunnel


Shrink packing is one of the developed packing method in current market, it uses shrink film wrapping outside the products. after heating, the film will shrink, it will show the goods better and it will improve sales of the goods, increase value of the goods.
At the meantime, the goods after packing will be prevented from moisture and pollution, it will buffer the outside conflict, especially when the goods is easy to break, it will stop the scatter. Workers put bottles as arranged group requirement, we will give group arrangement helping device for easy arrangement, after bottle arrangement, worker press start to indicated the wrapping device to wrap PE film on the group of bottles, then film cutting, group transmission and final shrinkage will be done by machine automatically.

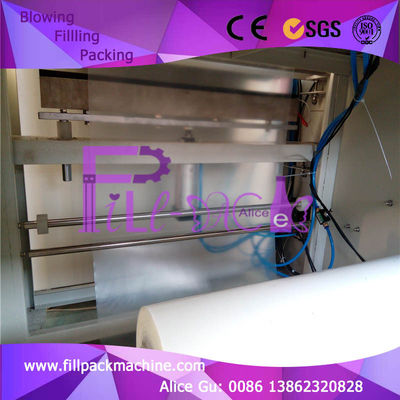

PE Film wrapping
-cutting unit

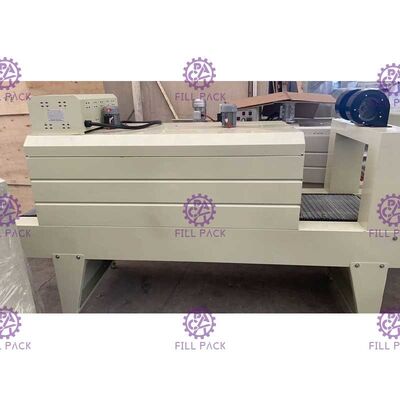

Pack Shrink tunnel
Max wrapping size:
Tunnel inner size:
Max sealing length:
Shrinkage Power source:
AC 380 V 3PH
Working air pressure requirement:
Shrinkage Power:
Power source:
AC220-240V 50/60HZ
1set 60W
Conveyor motor:
AC 220V /120W
Conveyor speed:
Max loading:



Competitive Advantage:


1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project


Semi Automatic PE Film Wrapping Cutting Shrink Tunnel Packing Machine 0Semi Automatic PE Film Wrapping Cutting Shrink Tunnel Packing Machine 1
