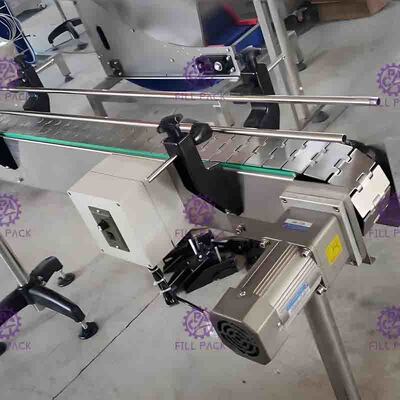

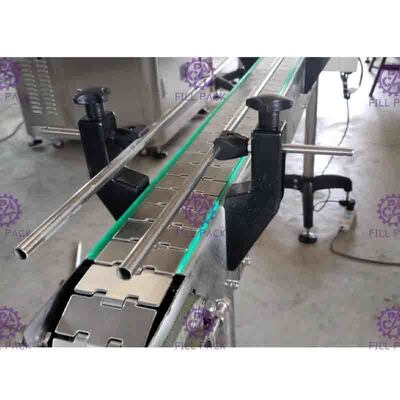

80m/min  Plastic Water Bottle Uv Sterilizer Conveyor low friction

80m/min Plastic Water Bottle Uv Sterilizer Conveyor low friction

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: Chain plate

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Sea worthy package
Delivery Time: 15 days after deposit receipt
Payment Terms: TT / LC / , D/A, D/P, MoneyGram
Supply Ability: 30 sets / month
Get Best Price Contact Now

Detail Information

Max Speed: 80m/min V-lubricant, 50m/min V-dry Characters:: Low Friction
Operating Temperature Range:: -40℃ To 90℃ Material: SUS304 Or Plastic
Max Conveying Length:: 12m(pom)/15m (SUS304) Packing:: 10ft=3.048m/box 1metel=26pcs
High Light:

plastic bottle uv sterilizer conveyor


water bottle uv sterilizer conveyor


bottle uv disinfection conveyor belt

Product Description

Stainless Steel 304 Plastic Bottle Reverse Sterilizer chain plate Conveyor For production Line



Quick Detail:


1, Processing type: Beverage or food production line

2, Material: SUS304 or plastic steel chain plate

3, Sterilizing the bacterias in bottle mouth and bottle cap

4, Belt width: 63.5mm-304.8mm

5, Voltage: 380V/220V 50HZ / Customize





This kind of chain plate conveyor is used in the beverage and food production lines to other transferring lines. It is used to convey PET bottles, glass bottles, pop-top cans and other containers like tetra pack etc,. The length and width as well as material of this conveyor can be made according to clients' requirements. It is widely used for automatic transmission, distribution and packaging in food, tin cans, drugs, beverage, cosmetics, cleaning products, paper products, spices, dairy and tobacco.





1. The conveying surface is flat and smooth, the friction force is small, and the transition of materials between the conveying lines is smooth;

2. The chain plate is made of stainless steel and engineering plastics, with various specifications and varieties. It can be selected according to the conveying materials and process requirements, and can meet the different needs of all walks of life;

3. The conveying speed is accurate and stable, which can ensure accurate synchronous transportation;

4. Generally, chain conveyor / chain conveyor line / chain plate assembly line can be directly washed with water or directly immersed in water. The equipment is clean and convenient, which can meet the hygienic requirements of food and beverage industry;

5. The equipment layout is flexible. Horizontal, inclined and turning conveying can be completed on one conveyor line;

6. The equipment has simple structure and convenient maintenance.



Chain plate Parameter :

Max speed: 80m/min V-lubricant, 50m/min V-dry
Spindle: Stainless steel
Operating temperature range: -40℃ to 90℃
Packing: 10ft=3.048m/box 1metel=26pcs
Chain plate material Pom.AC/Stainless steel
Max conveying length: 12m(pom)/15m (SUS304)
Max loading tension:
  • Liner plastic steel chain plate:1100N
  • Liner SUS304 chain plate:2250N
  • Turn plastic steel chain plate:2100N
  • Turn SUS304 chain plate:2250N
Characters: low friction
Back curved radius: 50mm /150mm (US304)


Motor parameter:

Power HP Volt hertz ampere EFF r/min cosφ
0.37KW 0.5 380V/220V 50HZ 1.12A/1.96A 67% 1400 0.75
0.75KW 1 380V/220V 50HZ 2.03A/3.52A 73% 1400 0.76
0.55KW 0.75 380V/220V 50HZ 1.64A/2.85A 70% 1400 0.75

Remarks:If the conveying length is less than 6 meters, use 0.37 kW motor;

if the length is more than 6 meters and less than 12 meters, use 0.55 kW or 0.75 kW motor.


80m/min  Plastic Water Bottle Uv Sterilizer Conveyor low friction 0

                                       Belt width 82.6mm Linear chain plate Conveyor design for ref


Conveyor Structure:

80m/min  Plastic Water Bottle Uv Sterilizer Conveyor low friction 1

Structural drawing of linear chain conveyor for ref


80m/min  Plastic Water Bottle Uv Sterilizer Conveyor low friction 2

Structural drawing of turn chain conveyor


Competitive Advantage:


1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
