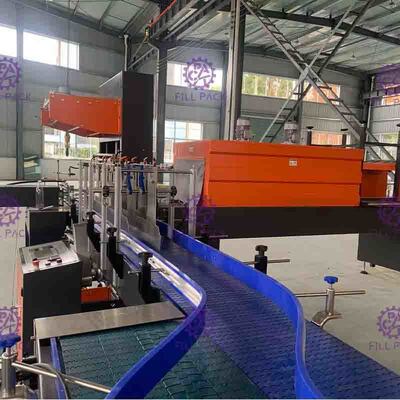

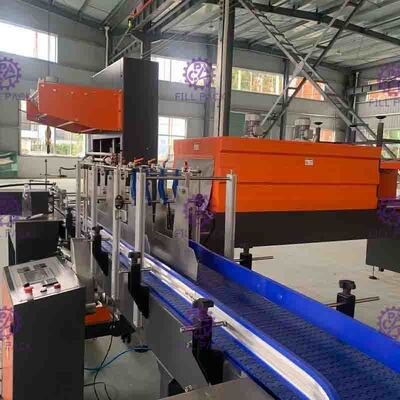

10pcs/Min Bottle Shrink Wrap Machine Touch Screen For Juice Cola
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE. ISO9001 |
| Model Number: | WD-150A |
| Operation mode: | Automatic / manual |
|---|---|
| Automation: | PLC control |
| Application: | Shrink wrapping for containers |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 35-40 days after deposit receipt |
| Payment Terms: | TT / LC / |
| Supply Ability: | 1 set / month |
|
Detail Information |
|||
| Application: | Beverage, Food | Warranty: | 1 Year |
|---|---|---|---|
| Packaging Type:: | Film | Facility Power:: | 28Kw |
| Weight:: | 1200KG | Automatic Grade:: | Automatic |
| High Light: | 10pcs/min bottle shrink wrap machine,cola bottle shrink wrap machine,PLC bottle wrapping machine |
||
Product Description
10 pcs/min teflon conveyor bottle shrink wrapper for juice / cola
Product description
● Frequency converter speed adjust,two segment convey device.
● Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
● Proximity switch control film length.
● Touch screen, PLC system greatly increase facility movement reliability.

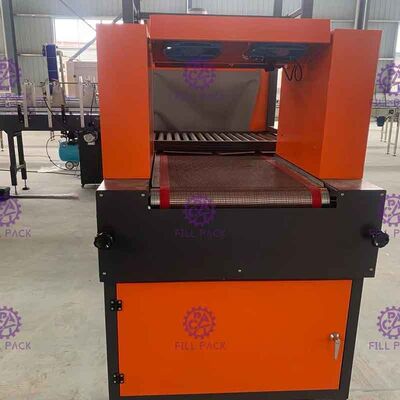

● Double-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
● Super big wind-volume cooling system, ensure quickly get into shape .
● Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
● Frequency limitless speed adjust convey belt frame.
● Convey belt height can make according client requirement, adjust range:±50mm
● Bottle convey machine can meet with client bottle forward direction requirement, can lengthen or shorten.
● Wing stainless steel heating system, endurance.
● Meet with product instant stop requirement product-bearing rack device ensure production line consistency.
Main component detail list
| no | Name | spec | number | brand | |
| 1 | board production component | ||||
| 2 | Plant metal component | ||||
| 3 | pneumatic component | 1 | Taiwan Airtec | ||
| 4 | Electric controlling component and accessory | ||||
| Photoelectric switch | 4 | South Korea Autonics | |||
| Proximity switch | 2 | South Korea Autonics | |||
| PLC | 1 | Thinget | |||
| Touch screen | 1 | Thinget | |||
| Frequency converter | 3 | Taiwan Telta | |||
| AC contactor | 3 | France Schneider | |||
| Mid-relay | 8 | France Schneider | |||
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
please kindly click the play button to watch the video
