Automatic 3 in 1 Soft Drink Bottling Equipment Food Stage Stainless Steel
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE & ISO & TUV & SGS |
| Model Number: | DCGF12-12-4 |
| Color: | Silver Gray |
|---|---|
| Control: | PLC Control With Touch Screen |
| Processing: | Japan & Germany |
| Suitable Bottle Size: | 0.3-2L PET Bottle |
| Cap Style: | Plastic Screw Cap |
| Capacity: | 3000-4000BPH |
| Electrical Brand: | Mitsubishi, OMRON, SIEMENS |
| Warranty: | 1 Year for Spare Parts |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 20000-50000USD |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
| Payment Terms: | TT & L/C |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Highlight: | coke filling machine,csd filling machine |
||
|---|---|---|---|
Product Description

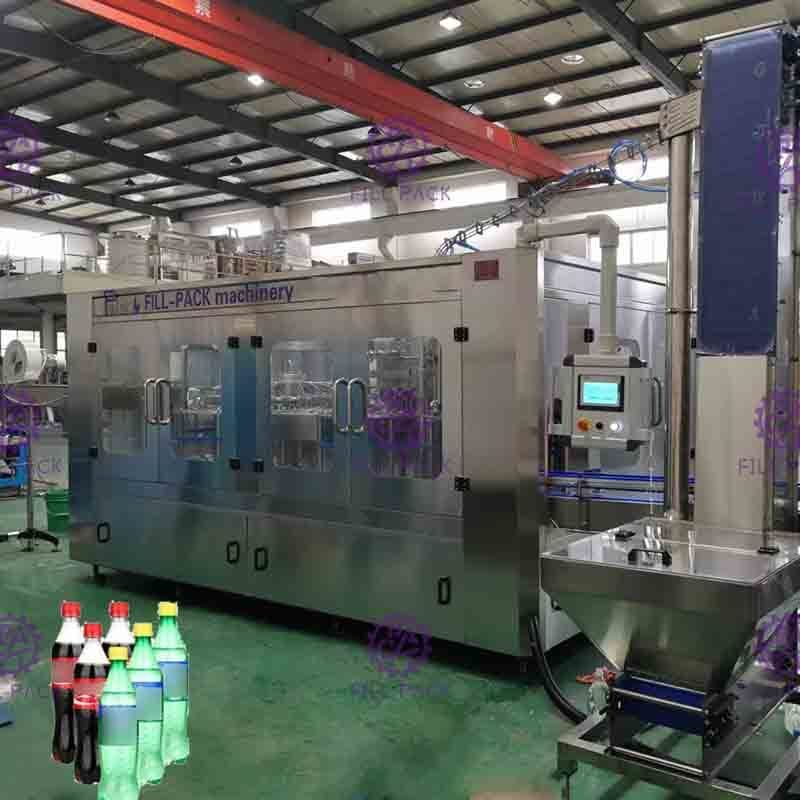

Automatic 3 in 1 Soft Drink Bottling Equipment Food Stage Stainless Steel
Quick Detail:
Name: Automatic 3 in 1 Carbonated Drink Filling Machine Bottled Drink Production Line
Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 3000-4000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: washing filling capping 3 in 1
Technology: Advanced
After-sales service provided: Engineers available to service machinery overseas .
Description:
1. This automatic 3 in 1 carbonated drink filling machine bottled drink production line has a compact structure, perfect control system, easy to operate and highly automated.
2. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
3. By adopting high speed filling valve, the liquid level is precise and have no waste. That guarantees the demand of filling technology.
4. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
5. This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
6. Equipped with perfect clean management system to ensure the bottle clean.
7. Only by changing the star-wheel, can realize filling the different bottle shape.
8. The machine adopts perfect overload protective device to ensure the operator and machine safe.
9. This automatic energy drink filling machine adopts adjustable frequency converter.
10. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12. The electric components and pneumatic components are all introduced from world famous brand products.
Specifications:
| Model | DCGF12-12-4 | DCGF 18-18-6 | DCGF 24-24-8 | DCGF G32-32-10 |
| Production B/H(600ml) | 3000-4000 | 4000-6000 | 6000-8000 | 8000-12000 |
| Bottle standard | Neck:φ50-100mmHeight150-320mm | |||
| Water pressure of washing bottle | 0.18-0.25Mpa | |||
| Water consumption for washing bottle (kg/h) | 1300 | 2000 | 3000 | 4000 |
| Spraying position | 4 | 7 | 10 | 14 |
| Dripping bottle position | 3 | 5 | 8 | 10 |
| Filing precision | +5MM | |||
| Gas source pressure | 0.4Mpa | |||
| Gas consumption(m³/min) | 0.3 | 0.4 | 0.5 | 0.7 |
| Total power(KW) | 4.2 | 4.5 | 5 | 6.2 |
| Total weight (T) | 2 | 2.5 | 3 | 4 |
| Dimension (L*W*H)mm | 2100*1600*2100 | 2500*1750*2100 | 2700*2100*2100 | 3500*2100*2100 |
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
