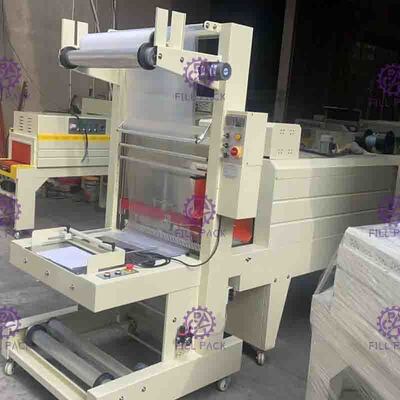

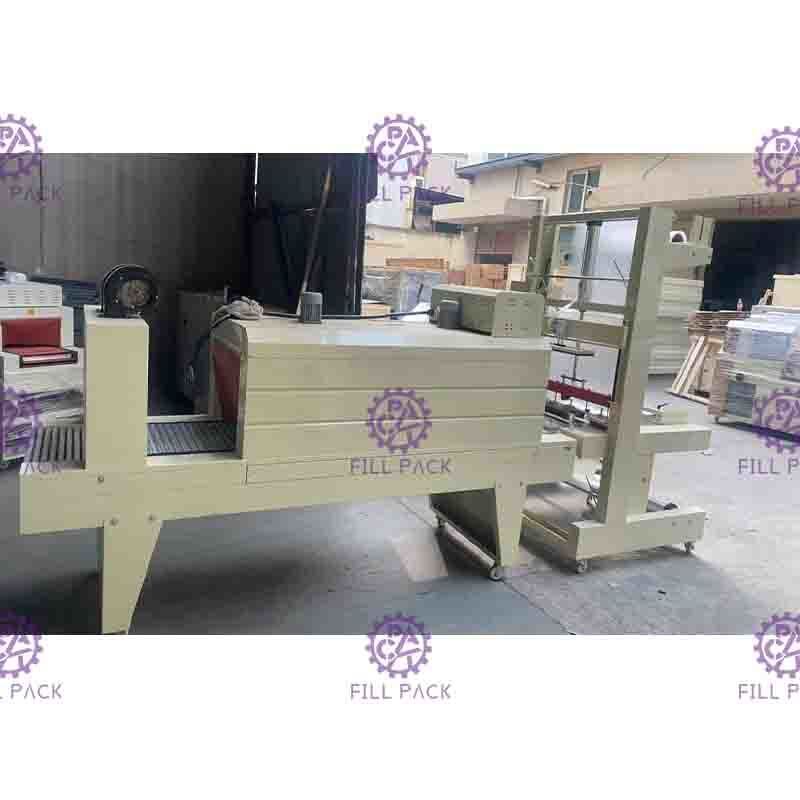

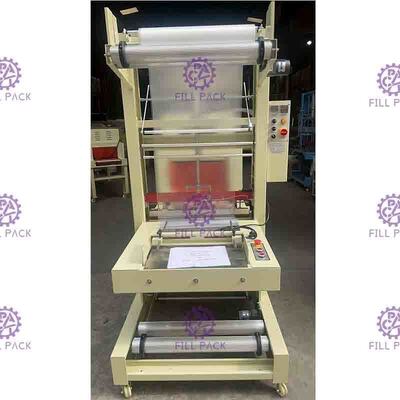

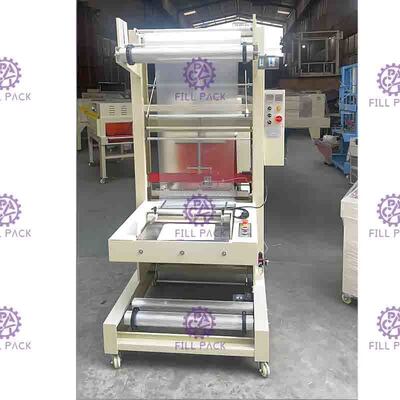

Semi automatic wrapping shrink Bottle Packing Machine for cartons box
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE. ISO9001 |
| Model Number: | WD-250B-YF |
| Operation mode: | Automatic / Manual |
|---|---|
| Automation: | Automatic |
| Application: | Shrink wrapping for big containers |
| Machine size: | Customize according to real product |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 25 days after deposit receipt |
| Payment Terms: | TT / LC / |
| Supply Ability: | 1 set / month |
|
Detail Information |
|||
| Shrink Film Material: | PE,PVC,POF | Voltage: | 380/220V |
|---|---|---|---|
| Max Output Per Minute: | 0-8pcs | Facility Power: | 18Kw |
| Actual Power: | 15Kw/h | Facility Weight: | 0.65T |
| Highlight: | Bottle packaging machine,Shrink Packing Machine |
||
Product Description
Semi automatic wrapping shrink Bottle Packing Machine for cartons box
Quick Detail:
1, Capacity: 3-5 bags / min
2, Automation: Automatic cutting film, shrinking film
3, Suitable for shrinking carton box and big containers
4, Operation mode: Automatic / Manual
Description & Working principles:
The bottle packing machine is not only used to pack beverage bottles, but also the big containers like carton box.
Workers manually put carton box on the packing table, the air cylinder will automatically push the box forward. Then the shrink film will pull down and cut by the heating blade. After the second box is coming, the previous one will be moved forward through shrinking tunel.
There several heating lamps installed in shrinking tunnel to shrink the film tightly on the box.
Specifications:
| Facility type | WD-250B-YF |
| External dimension of the facility | L3600×W1200×H1880mm (Customize basing on real products) |
| Max Dimension of wrappage | L560×W300×H300mm |
| Shrink film material | PE,PVC,POF |
| Shrink film thickness | 0.06-0.12mm |
| Thermo-shrink tunnel Max temperature | 160-230°( can be adjusted freely) |
| Max output per minute | 0-8pcs |
| Facility power | 18Kw |
| Actual power | 15Kw/h |
| Voltage | 380/220V |
| Facility weight | 0.65T |
| Fan | 40w 220V 2units, 120w 380V 2units |
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
