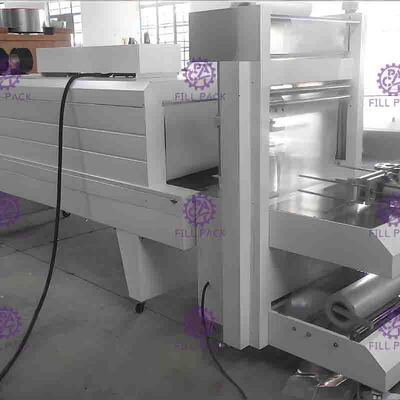

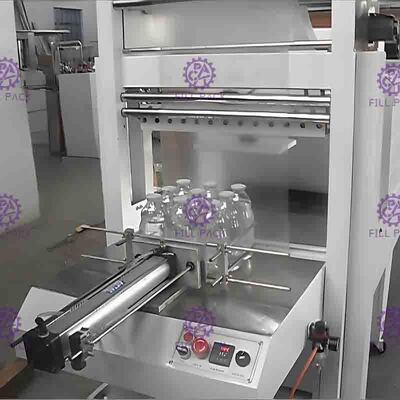

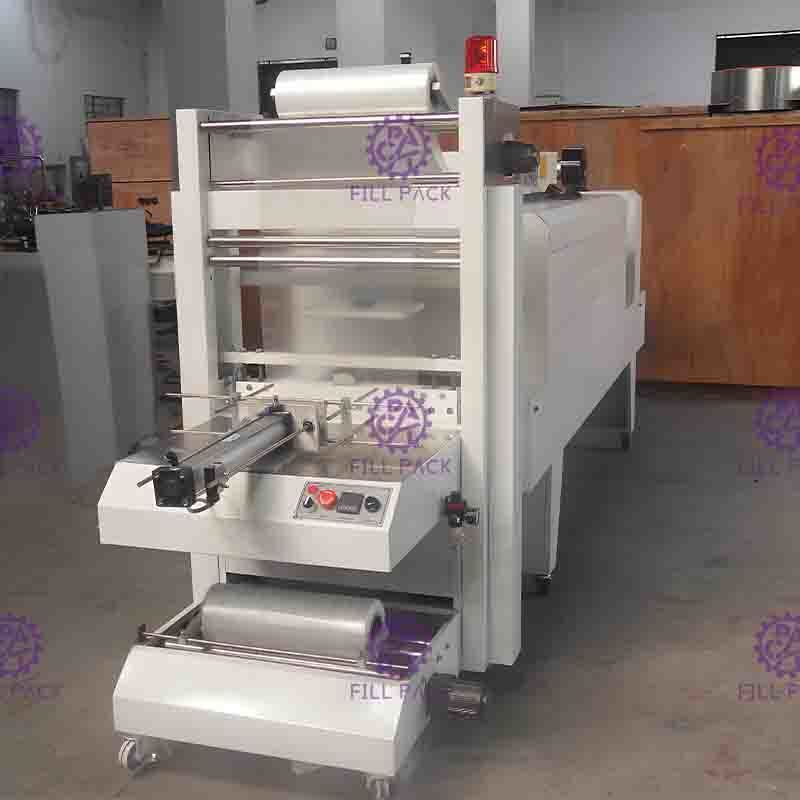

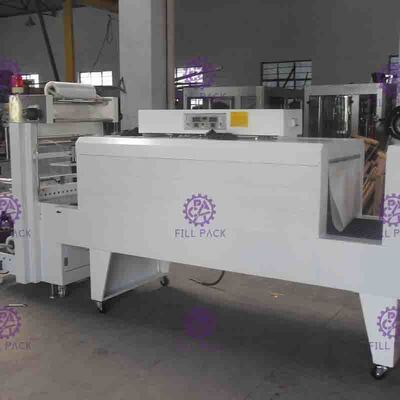

Manual Paper Pallet Bottle Packing Machine For Beverage Processing 8 bags / min

Manual Paper Pallet Bottle Packing Machine For Beverage Processing 8 bags / min

    • Manual Paper Pallet Bottle Packing Machine For Beverage Processing 8 bags / min
    • Manual Paper Pallet Bottle Packing Machine For Beverage Processing 8 bags / min
    • Manual Paper Pallet Bottle Packing Machine For Beverage Processing 8 bags / min
    • Manual Paper Pallet Bottle Packing Machine For Beverage Processing 8 bags / min
  • Manual Paper Pallet Bottle Packing Machine For Beverage Processing 8 bags / min

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE. ISO9001
    Model Number: WD-250B
    Automation: Semi-automatic
    Bottle type: Plastic bottles

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Sea worthy package
    Delivery Time: 25 days after deposit receipt
    Payment Terms: TT / LC / Western union
    Supply Ability: 1 set / month
    Contact Now
    Detailed Product Description



    Manual Paper Pallet Bottle Packing Machine For Beverage Processing 8 bags / min





    Quick Detail:



    1, Capacity: 8 bags / min

    2, Automation: Semi - automatic

    3, Bottle type: Plastic / glass bottles / cans

    4, Operation mode: Manual





    Description & Working principle:



    The bottle packing machine is used to pack various bottles with paper pallet. Workers should load the formed paper pallet on the packing table, and then put bottles into the pallet. The shrinking film will pull down an cut by the heating blade. The sceond one will be operated by the same way, and push the fist pallet forward and through the shrinking tunnel.





    Specifications:



    Facility type WD-250B
    External dimension of the facility L3600×W830×H1880mm
    Max Dimension of wrappage L560×W300×H300mm
    Shrink film material PE,PVC,POF
    Shrink film thickness 0.06-0.12mm
    Thermo-shrink tunnel Max temperature 160-230°( can be adjusted freely)
    Max output per minute 0-8pcs
    Facility power 18Kw
    Actual power 15Kw/h
    Voltage 380/220V
    Facility weight 0.65T
    Fan 40w 220V 2units, 120w 380V 2units





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project
