Carbonated Drink Bottled Automatic Sterilizer , Juice Processing Equipment

Carbonated Drink Bottled Automatic Sterilizer , Juice Processing Equipment

    • Carbonated Drink Bottled Automatic Sterilizer , Juice Processing Equipment
    • Carbonated Drink Bottled Automatic Sterilizer , Juice Processing Equipment
    • Carbonated Drink Bottled Automatic Sterilizer , Juice Processing Equipment
    • Carbonated Drink Bottled Automatic Sterilizer , Juice Processing Equipment
  • Carbonated Drink Bottled Automatic Sterilizer , Juice Processing Equipment

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE. ISO9001
    Model Number: PL
    Material: SUS304

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Sea worthy package
    Delivery Time: 35-40 days after deposit receipt
    Payment Terms: TT / LC / Western union
    Supply Ability: 1 set / month
    Contact Now
    Detailed Product Description

    Carbonated Drink Bottled Automatic Sterilizer , Juice Processing Equipment





    Quick Detail:



    1, Processing type: Beverage warming system

    2, Warming material: Pure water

    3, Material: SUS304





    Description:

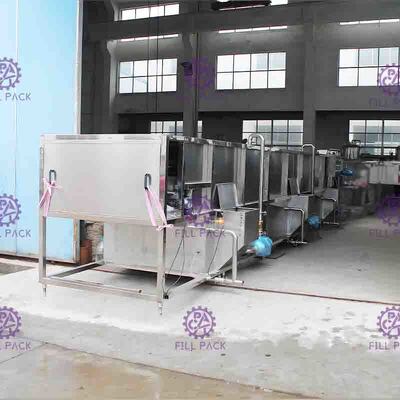

    The bottled warming machine is applied to PET bottle carbonated drink filling production line. For hot filling, it can put down the temperature of hot filling drink to 36-40. For low -temperature filling, it can get up the temperature to 36-40 to eliminating the condensed water on the external wall of PET bottes, to keeping bottles dry and clean. So convenient to following-up labeling and packing process.





    Specifications:



    Production capacity (BPH) 3000-5000 6000-9000 10000-15000 24000-36000
    Heating temperature (℃) 37-45 37-45 37-45 37-45
    Cooling time (min) 12-15 12-15 12-15 12-15
    Linear conveyoring speed (m/min) 100-550 100-550 100-550 100-550
    Width of mesh conveyor (mm) 1.22 1.22 1.22 1.22
    Vaport pressure (Mpa) < 0.4 < 0.4 < 0.4 < 0.4
    Vapor consumption (kg/h) 80 120 240 280
    Water circulation volum (m3/h) 6 9 15 28
    Installed power (kw) 6 7.55 8.6 18
    Dimension (L*W*H) 620*1500*1700 1580*1500*1700 1580*1800*1700 22000*800*1700
    Weight (KG) 2500 3200 4300 5600

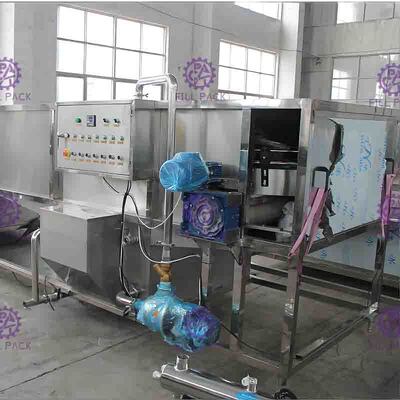

    Beverage cooling system - Characteristics



    1. The main is stainless steel frame-board structure

    2. The tunnel spraying cleaning is continuous transmission

    3. Main drive is frequency conversion and infinite speed, convey by plastic chain net or stainless steel chain net

    4. Heat by coiled pipe hot vapor

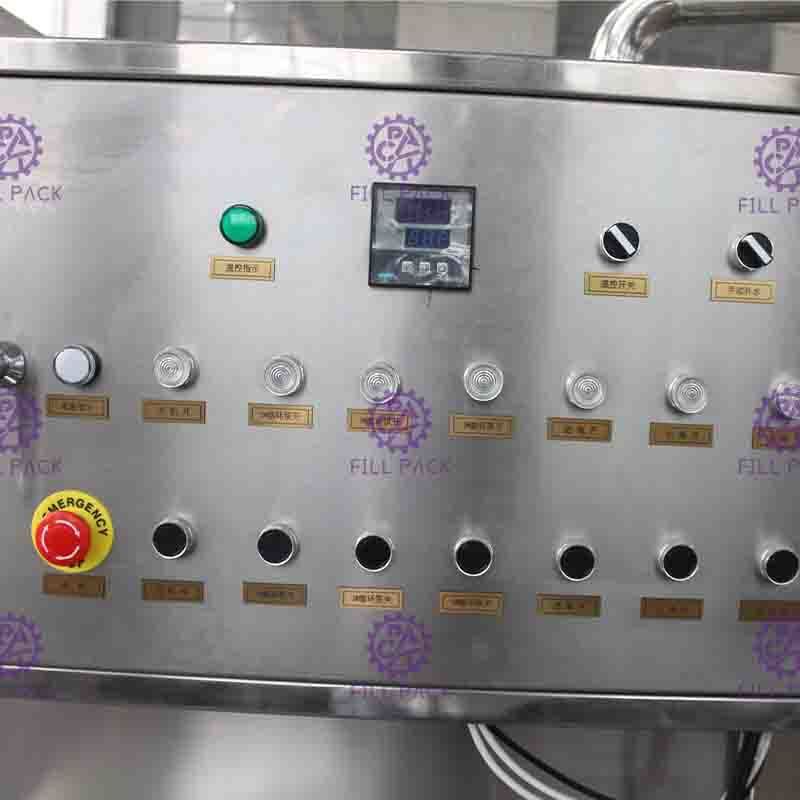

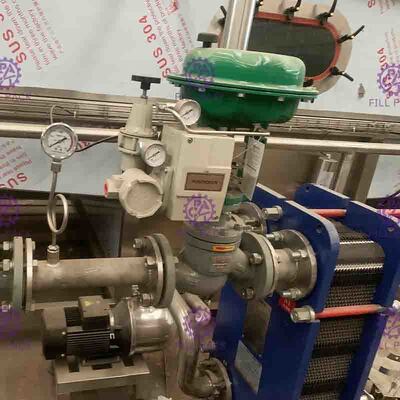

    5. Temperature control adopts PLC control film regulating valve





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project
