Industrial Bottle Packing Machine , Plastic Bottle Sterilizing Equipment
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE. ISO9001 |
| Model Number: | PL |
| Material: | SUS304 |
|---|---|
| Application: | Juice sterilizing and cooling |
| Cooling and sterilizing material: | Pure water |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 35-40 days after deposit receipt |
| Payment Terms: | TT / LC / |
| Supply Ability: | 1 set / month |
|
Detail Information |
|||
| Highlight: | Bottle packaging machine,Shrink Packing Machine |
||
|---|---|---|---|
Product Description
Industrial Bottled Juice Sterilization Machine , Plastic Bottle Sterilizing Equipment
Quick Detail:
1, Processing type: Bottled juice sterilizing and cooling machine
2, Cooling and sterilizing material: Pure water
3, Material: SUS304
4, Different temperature zones
Description:
This machine can reduce the temperature of hot filling drinks to 36℃-40℃, or increase the temperature of cold filling carbonic acid drinks to 36℃-40℃. (can choose only one function).It is used in PE bottles hot tea drinks and carbonic acid drinks hot filling production line. Productivity: 5000-36000bottles/hour, spray time: about 15-20 minutes.
Specifications:
| Production capacity (BPH) | 3000-5000 | 6000-9000 | 10000-15000 | 24000-36000 |
| Heating temperature (℃) | 37-45 | 37-45 | 37-45 | 37-45 |
| Cooling time (min) | 12-15 | 12-15 | 12-15 | 12-15 |
| Linear conveyoring speed (m/min) | 100-550 | 100-550 | 100-550 | 100-550 |
| Width of mesh conveyor (mm) | 1.22 | 1.22 | 1.22 | 1.22 |
| Vaport pressure (Mpa) | < 0.4 | < 0.4 | < 0.4 | < 0.4 |
| Vapor consumption (kg/h) | 80 | 120 | 240 | 280 |
| Water circulation volum (m3/h) | 6 | 9 | 15 | 28 |
| Installed power (kw) | 6 | 7.55 | 8.6 | 18 |
| Dimension (L*W*H) | 620*1500*1700 | 1580*1500*1700 | 1580*1800*1700 | 22000*800*1700 |
| Weight (KG) | 2500 | 3200 | 4300 | 5600 |
Beverage cooling system - Characteristics
1. High reliability conveying device and flexibility speeding system; The conveying belt for bottles is high strength plastic chain net which has god strength and abrasion proof. The driving conveying adopts stepless motor which can change the speed of conveying belt easily.

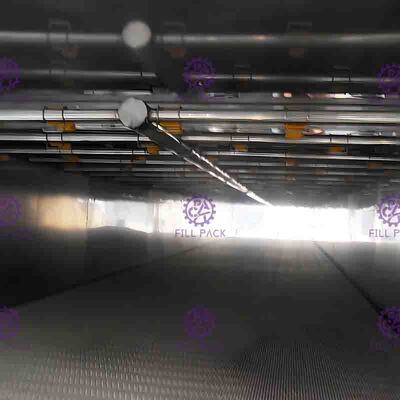

2. High effective spraying system. Via arranging the atomization nozzles on the chain plate in order to spray the bottles evenly, the spraying water can be utilized completely and the spraying covers large area.
3. The temperature can be controlled flexibly and easily set. The machine adopts temperature controlling system which can control the temperature exactly and be sensitive to the response. Press the button to set temperature between 0-100℃
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
please kindly click the play button to watch the video
