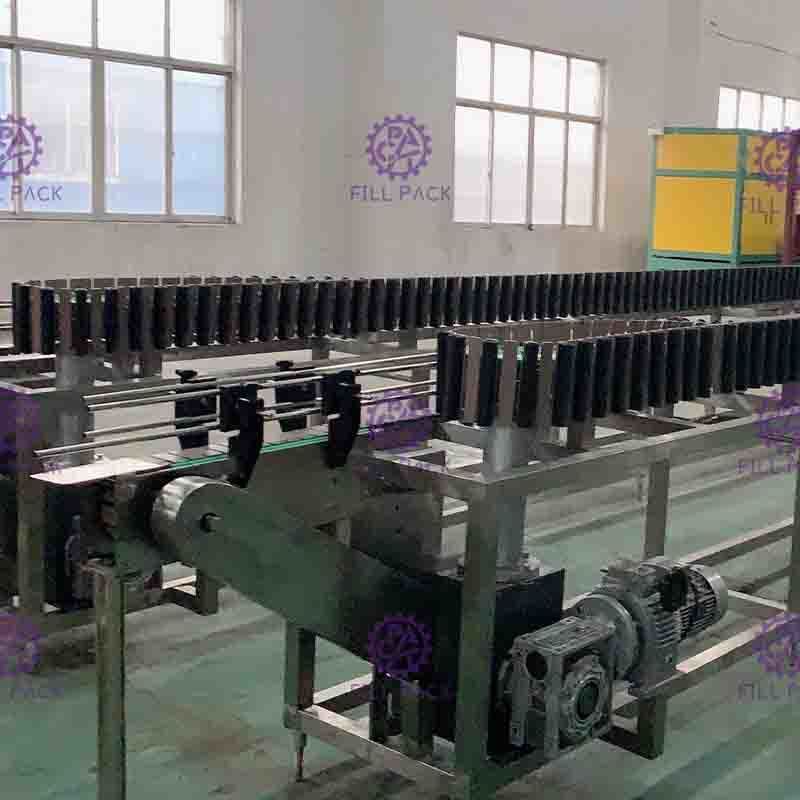

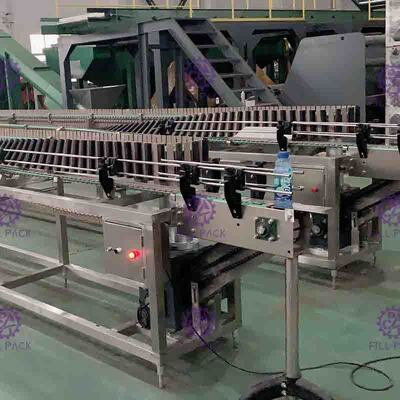

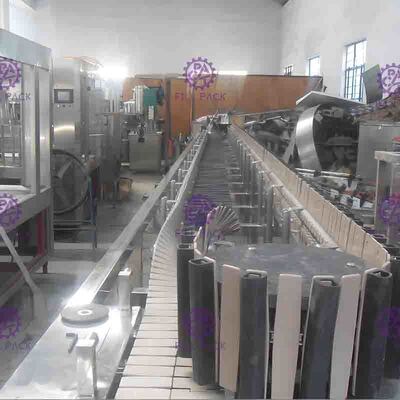

Reverse Sterilizer System PET Bottle With Conveyor Adjustable Speed

Reverse Sterilizer System PET Bottle With Conveyor Adjustable Speed

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: DP
Frame material: SUS304
Conveyor width: 220mm
Length: Basing on the capacity
Bottle type: Plastic bottles

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Sea worthy package
Delivery Time: 35-40 days after deposit receipt
Payment Terms: TT / LC /
Supply Ability: 1 set / month
Get Best Price Contact Now

Detail Information

High Light:

Sterilizer System

,

Bottle packaging machine

Product Description

Reverse Sterilizer System PET Bottle With Conveyor Adjustable Speed





Quick Detail:



1, Processing type: Beverage sterilizing system

2, Material: SUS304

3, Bottle overturn angle: 96 or 110degrees
4, Sterilizing time adjustable: 30 to 40 sec
5, Cap sterilizing: beverage temperate





Description:



It is mainly used in sterilizing PET bottle mouth and surface of caps. In which haven't been disinfected by thermal tea. Fruit juice which having been filled in PET bottle. It mainly consist of chief conveying chain system, support, bottle reversing chain system, bottle reversing guiding rod and bottle repositioning rod. Use its inner thermal medium to disinfect bottle mouth and caps without any other heat souce. So is can save energy. The machine is fully made of SUS304 stainless steel, more convenient in operation.





Feature:



1. DP Series Bottle Inverse Sterilize Machine is mainly consist of chief conveying chain system, support, bottle reversing chain system, bottle reversing guiding rod and bottle repositioning rod.



2. Use its inner thermal medium to disinfect bottle mouth and caps without any other heat souce, so it save energy.





Specifications:



Output 100-250 bottles/min
Application scope Plastic bottles, Glass bottles
Sterilizin time 12-40s
Chain speed 4.5-25m/min
Motor power 1.6KW
Weight 1800kg





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
