3000BPH Carbonated Beverage Filling Machine / Soft Drink Glass Bottle Pulling Ring Cap
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | QS-12，DG-18G，FXZR-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 12300USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Machinery Capacity: | 3000BPH | Usage: | Carbonated Drinks Filling |
|---|---|---|---|
| Applicable Bottle: | D:90mm,H<300mm | Bottle Type: | Glass Bottle |
| Cap Type: | Pull Ring Cap | Filling Heads: | 18 |
| Filling Pressure: | 0.2-0.3Mpa | Filling Temperature: | 2-6 ℃ |
| Dimension(L*W*H): | 7800*1750*2300mm | Weight: | 3450 KG |
| High Light: | Pulling Ring Cap Beverage Filling Machine,3000BPH Carbonated Beverage Filling Machine,0.2Mpa Carbonated Beverage Filling Machine |
||
Product Description

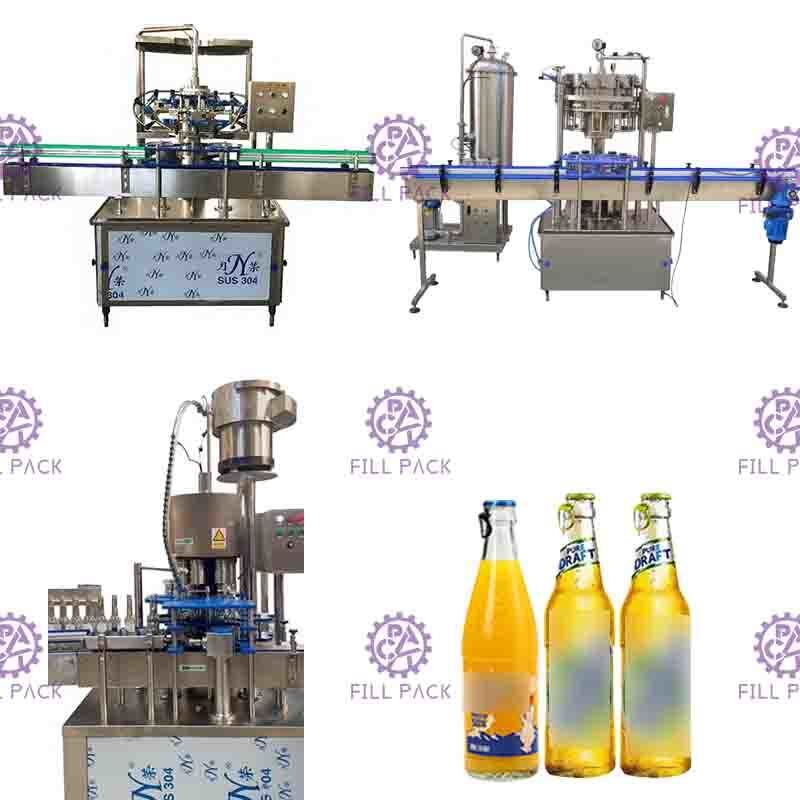

3000BPH Automatic Carbonated Beverage Filling Machine / Soft Drink Soda Water Filling Line Glass Bottle Pulling Ring Cap

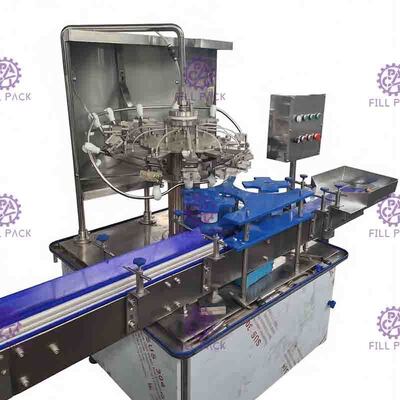

1.Rotary bottle washer
Principle:
This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The rinser is the ideal choice for drink factories of small and middle size. The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station. The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.
Parameters:
Rising heads: 12 pcs
Capacity: 0-3000BPH (each bottle rinsing time 4s)
Power: 0.92KW
Dimension: 1050*1050*1900mm
Weight: 450KG
Applicable bottle: D∮50-100mm,H 50-350mm
|
Production Capacity:
|
0-4000b/h
|
|
Bottle /standard:
|
Glass bottle , PET bottle , Pop-top can
|
|
Applicable bottle:
|
D∮<92mm,H<310mm
|
|
Filling Pressure:
|
0.2-0.3Mpa
|
|
Filling Temperature
|
2-6 ℃
|
|
Power:
|
3kw
|
|
Overall Dimensions:
|
1750*1750*2000mm
|
|
Weight :
|
1800kg
|
|
Capacity
|
0-3000BPH
|
|

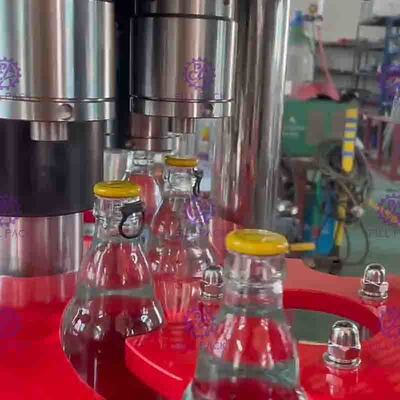

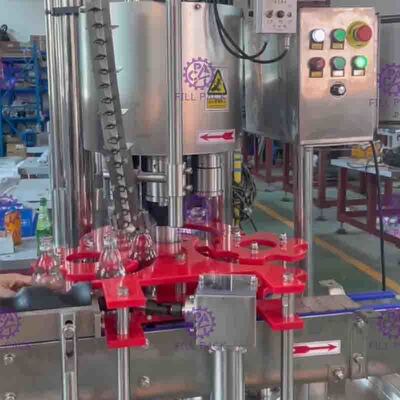

Capping head
|
3
|
|
Capping tube stroke
|
58mm
|
|
Applicable bottle
|
Glass bottle
|
|
Applicable bottle cap
|
Pull ring cap
|
|
Main motor power
|
0.75KW
|
|
cap sorter power
|
0.3KW
|
|
Suggested compressor
|
0.6m3/min 0.7Mpa
|
|
Dimension
|
1000*750*2300mm
|
|
Weight
|
950kg
|
