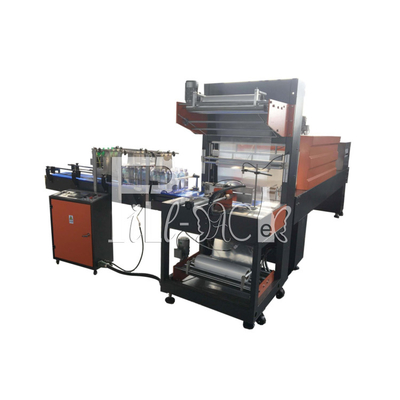

Automatic L Type PE Shrink Film Wrapper Water Beverage PET Glass Bottle Can Equipment

Automatic L Type PE Shrink Film Wrapper Water Beverage PET Glass Bottle Can Equipment

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FILLPACK
Certification: CE/ISO9001
Model Number: FP-150A

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 8000USD
Packaging Details: Wooden case
Delivery Time: 25-30 working days
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Packing Speed: 10 Packs/min Shrink Film: PE Film
Facility Power: 28Kw Working Pressure: 0.6-0.8MPa
Keyword: Bottle Shrink Wrapper Shrinkage Thermo Thickness: 0.03-0.15mm
Dimension(L*W*H): 5050*3300*2100mm Weight: 1200KG
High Light:

L Type PE Shrink Film Wrapper

,

10 packs/min PE Shrink Film Wrapper

,

28Kw PE Shrink Film Wrapper

Product Description

Automatic L Type PE Shrink Film Wrapper Water Beverage PET Glass Bottle Can Packaging Wrapping Machine Equipment



Product description
● Frequency converter speed adjust,two segment convey device.
● Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
● Proximity switch control film length.

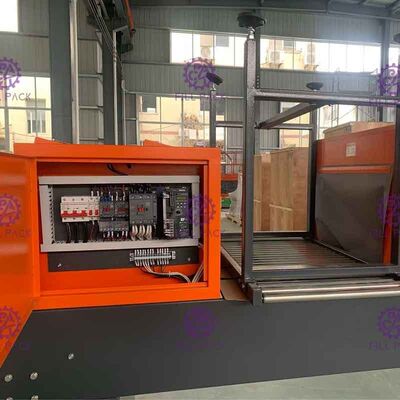

● Touch screen, PLC system greatly increase facility movement reliability.

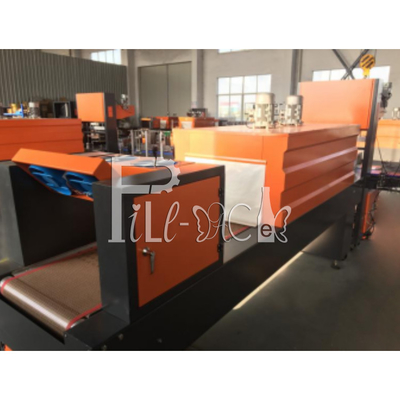

● Double-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
● Super big wind-volume cooling system, ensure quickly get into shape .
● Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
● Frequency limitless speed adjust convey belt frame.
● Convey belt height can make according client requirement, adjust range:±50mm

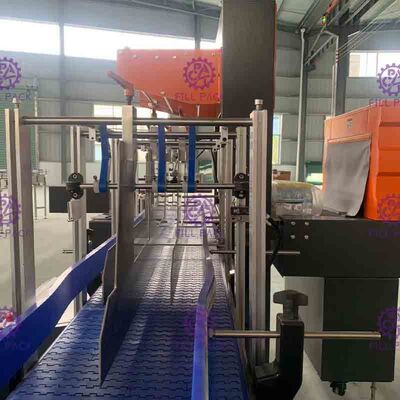

● Bottle convey machine can meet with client bottle forward direction requirement, can lengthen or shorten.
● Wing stainless steel heating system, endurance.
● Meet with product instant stop requirement product-bearing rack device ensure production line consistency.



Function

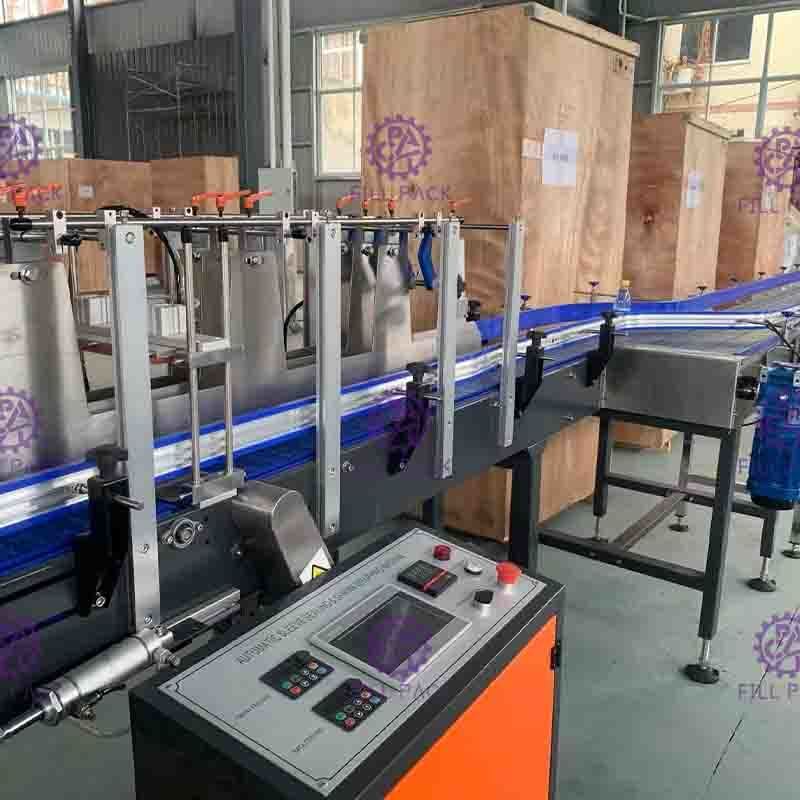

1. Auto convey fracture; joint filling machine convey belt, divide two passage or one passage, control via frequency converter, speed adjust freely, can auto divide and sort bottles .

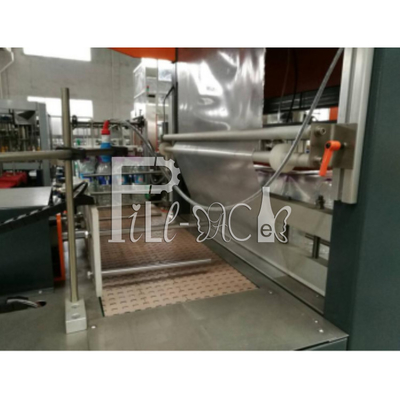

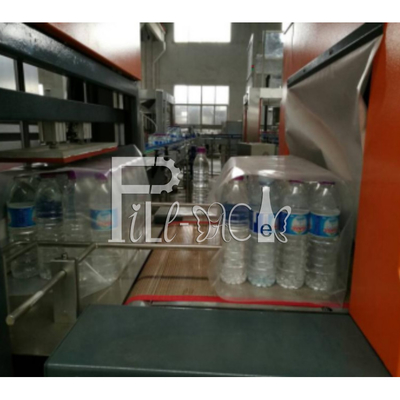

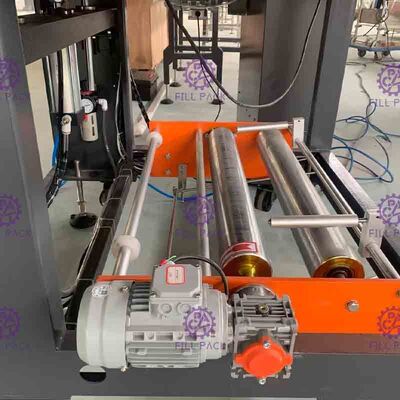

2. Automatic film wrappage fracture, cam complete wrappage auto film covering and sealing, cutting function.

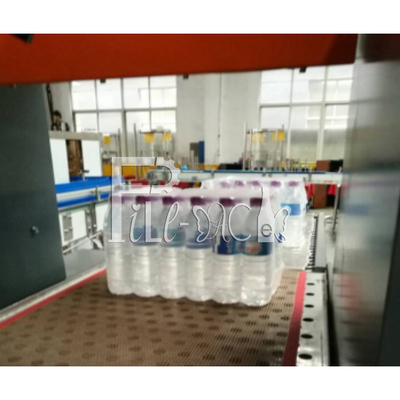

3. Auto thermo shrinkage cooling fracture, can auto contraction and cooling function after film covering.



Production procedure for bottle shrink wrapper
Wrappage from single-line 90°change to multi-line again divide 1,2,3,4 line via bottle division board, via the front 1,2,3,4
bottle separately reach photoelectric inspection, convey belt stop, place-limit gas-cylinder work, wrappage was conveyed to
cutting and sealing machine to seal and cut, wrappage was conveyed to contraction machine to contract via convey device, again
convey to stock rack via cooling convey belt, when the first bag convey to contraction machine, the second bag auto arrange, then
conveyed to sealing and cutting machine via pushing cylinder, again repeat the first bag recycle procedure.



Technical parameter
suitable max size
D 25-120mm, H 30-250mm
shrinkage film size
PE,PVC,POF
shrinkage thermo thickness
0.03-0.15mm
thermo shrinkage tunnel temperature
160 - 260°can adjust at will.
pressure requirement
380/220V
facility weight
1.2T
fan machine
1.1Kw 2set 380V, 65W 4set 380V



Technical condition and requirement
1. Package type
(1)350/500/550/600ML big bag:4×6,4×5 ;small bag,3×4,3×5 four type of package.
(2)1L/1.5L/2L/2.5L big bag:3×3,3×4;small bag,2×2,2×3 four type of package
2. Regarding can, we suggest adopt to package with tray, pack steadily.
3. Meet with pre-treatment filling speed of filling machine.
(1) 350/500/550/600ML big bag:4×6,4×5,(12000-15000b/hr),small bag:3×5,3×4,(8000-10000b/hr).
(2)1L/1.5L/2L big bag:3×4,3×3(5000-6000b/h), small bag:2×3,2×2(3000-4000b/hr).



Solution for bottle shrink wrapper
1. According production line, auto arrange, and combine our company MB-150A automatic sealing and cutting mature structure, as the
machine fracture.
2. The production line can match with any company filling device. For it stability, the production line main component all adopt
to import, joint venture famous brand.
3. If pre-treatment filling machine output is comparatively high, can divide two-way, auto seal and cut at the same time, to meet
with output requirement, among WD-150A fracture has original creation, it is the highest-efficiency, highest economical collocate
at the same time.
4. PE film adopt to flake, upper and down roll, auto seal and cut to roll type and up to shrinkage efficiency.



Application:



Automatic L Type PE Shrink Film Wrapper Water Beverage PET Glass Bottle Can Equipment 0
