Automatic 3 In 1 Water Filling Machine With 5 Gallon Plastic Bottle

Automatic 3 In 1 Water Filling Machine With 5 Gallon Plastic Bottle

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE,ISO
Model Number: QGF-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Blanket cloth or wooden case package as machine need
Delivery Time: 15-20 days
Payment Terms: L/C, T/T,
Supply Ability: 30 sets/month
Get Best Price Contact Now

Detail Information

Application: 5 Gallon Water Filling Function: Washing, Filling, Capping
Material: Stainless Steel Filling Material: Pure Water, Mineral Water, Non-carbonated Liquid
Capacity: 200BPH Container: 5 Gallon Bottles
High Light:

automatic filling machine


bottle filler machine

Product Description

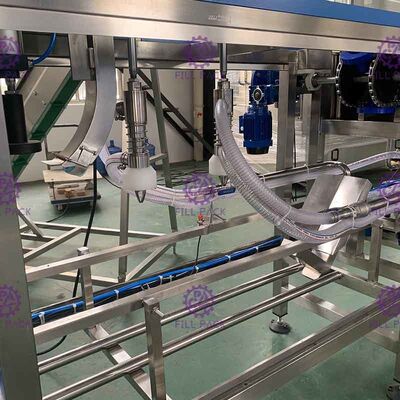

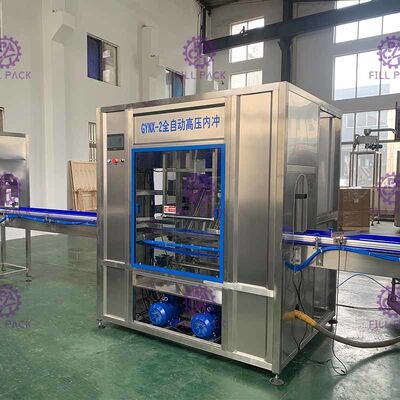

Automatic 3 In 1 Water Filling Machine With 5 Gallon Plastic Bottle
Quick Detail:
1. Automatic control
2. Capacity: 200 Barrel/H
3. Filling position: 2
4. Capping position: 1
5. Washing position: 5
6. With 5 gallon plastic bottle
7. After sales service provided: Engineers avilable to service machinery overseas

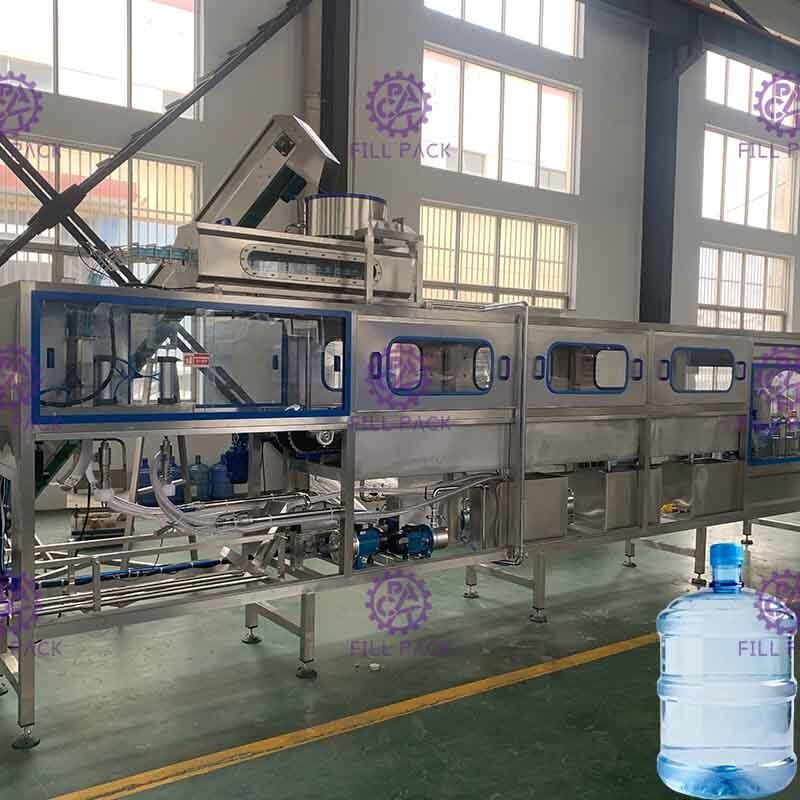

    The one unit main machine includes the washer, dryer, filler and capper for the production of
5 gallon barreled drinking water. The washing process includes alkaline liquid inside and outside
washing by dirty remover! inside and outside washing by disinfecting water inside and outside
washing by pure water, the alkaline and disinfecting water can be used cyclically. The whole
Washing, filling and sealing price is controlled by PC, and has the safe device for interlock,
signal and self-detection.

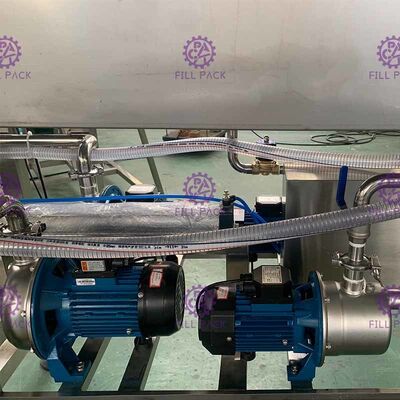

     Host is consist of frame, water tank, pipe, pump, cylinder, transmission, electrical appliances
and other parts ,which can complete the empty barrels of washing, filling, and capping. Through
multi-channel flushing process, it can fill quantitatively and cap automatically. The whole process
is controlled by computer, so it has stable flushing effect, accurate filling volume, and good sealing
A. The device employs key components of electrical appliances and metal materials manufactured
by name brand factories from home and abroad.
B.  It is not only with the advanced technology, high automatization, easy operation and reliable
performances as the genuine device from abroad, but also features with small size, small weight
and beautiful appearance,
C. Anti-corrodibility, thorough disinfection, effective anti-air pollution and high quality.
D. Available for the production of 5 & 3 gallons bottle filling, Capacity: 900B/H
E.  Apply to the food & drink industry, medical industry and chemical industry widely

After sales service:


1. Find our products through
2. One year warranty for the whole system
3. Free equipment installation and debugging
4. After one year, we can help you to maintain the machine and the accessories are provided
only one the cost price
5. Every 3 years, we can help to overhaul the machine free (Labor)
6. We can provide internship service and help you train the operator and mechanic
7. Free production technology and process configuration
8. We can help you to design the production line, workshop and provide turn-key project




Capacity 200 barrels / hour
Filling head 2
Material SUS304
Suitable bottle  5 gallon
Motor power 3.5 KW
Dimension 2200*70000*1750mm
Weight 800kg
