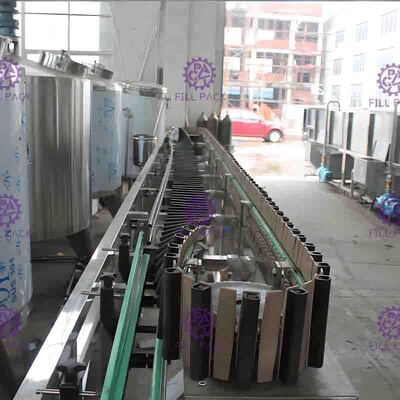

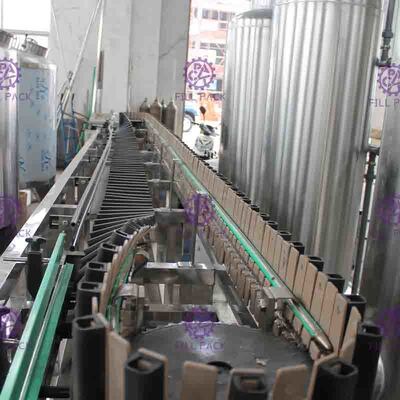

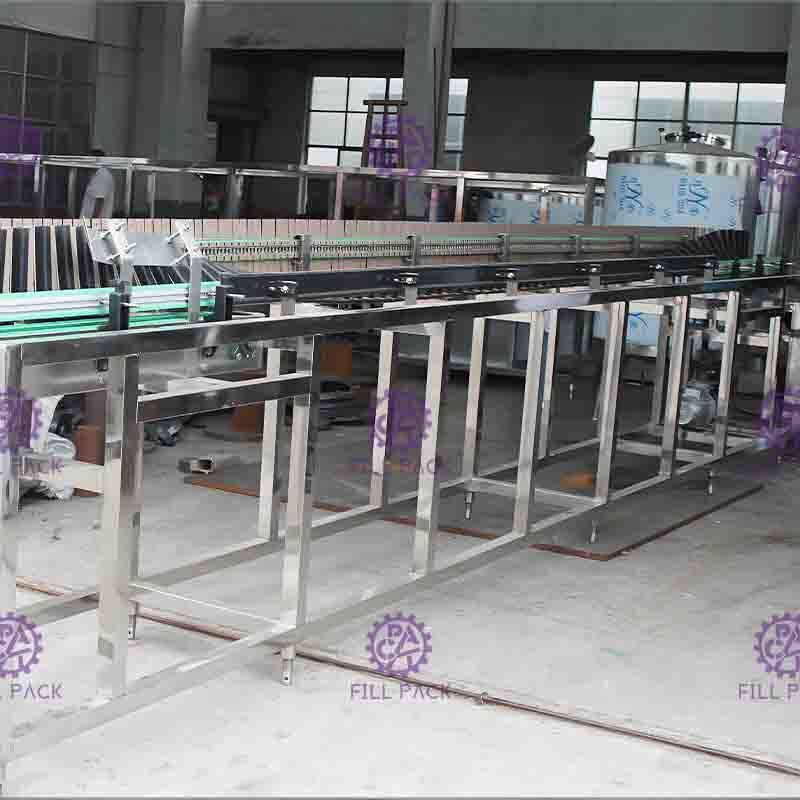

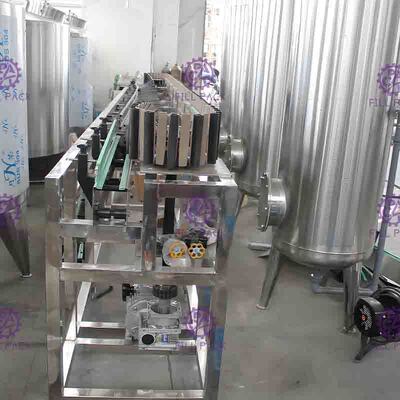

90 Degree Bottle Inverse Automatic Sterilizer With 10000BPH Capacity

90 Degree Bottle Inverse Automatic Sterilizer With 10000BPH Capacity

90 Degree Bottle Inverse Automatic Sterilizer With 10000BPH Capacity

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: DP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Sea worthy package
Delivery Time: 15 days after deposit receipt
Payment Terms: TT / LC / Western union
Supply Ability: 5 sets / month
Contact Now
Detailed Product Description
Process Type: Kill Bacteria In Bottle Cap Power: 3.8kw
Capacity: 8000-10000BPH Material: SUS304
Application: Tea Drink Filling Line Driving Type: Electric

90 Degree Bottle Inverse Automatic Sterilizer With 10000BPH Capacity





Quick Detail:



Processing type Beverage sterilizing system
Material Stainless steel 304
Function Kil bacteria in bottle caps
Capacity 8000-10000BPH
Driven type Electric





Description:



The bottle inverse sterilization is mainly used in sterilizing PET bottles mouth and inside surface of caps in which haven't been disinfected by thermal tea or juice which having been filled in PET bottle.



The bottle inverse sterilization mainly consist of chief conveyoring chain system, stand, bottle reversing chain system, bottle recersing guiding rod and bottle repositioning rod.



Use its inner thermal medium to disinfect bottle mouth and caps without any other heat source, so it can save energy. The machine is fully made of SUS 304, more convenient in operation.





Chacteristics:



# Thebottle inverse sterilization can be costomize basing on client's capacity;

# The whole material is stainless teel 304 (or customize material);

# Normally, it is applied in hot filling line including juice / tea / energy drink filling line;

# Promise 20 seconds sterilizing time;

# Easy operation and maintainence;





Specifications:



Model Production capacity (BPH) Bottle reversing time (s) Belt speed (m/min) Power (kw)
DP-8 3000-8000 15-20 4-20 3.8
DP-12 8000-15000 15-20 4-20 5.6





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project



90 Degree Bottle Inverse Automatic Sterilizer With 10000BPH Capacity
