300BPH Semi Automatic Inner - Outer 5 Gallon Water Filling Machine Stainless Steel 304
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE,ISO |
| Model Number: | BS-1 |
| Suitable bottle: | 5 gallon bottle |
|---|---|
| Power: | 1.1 kw |
| Driven type: | Electric type |
| Condition: | New |
| Guarantee time: | 1 year |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Blanket cloth or wooden case as machine need |
| Delivery Time: | 5-7days |
| Payment Terms: | 30% T/T deposit, 70% before shipment |
| Supply Ability: | 200 sets/month |
|
Detail Information |
|||
| Automatic Grade: | Semi Automatic | Processing Type: | Gallon Bottle Brushing |
|---|---|---|---|
| Production Capacity: | 80-300BPH | Material: | Full Stainless Steel 304 |
| Power: | 1.1Kw | Brushes: | 8pcs |
| Highlight: | bottle filler machine,commercial bottling equipment |
||
Product Description

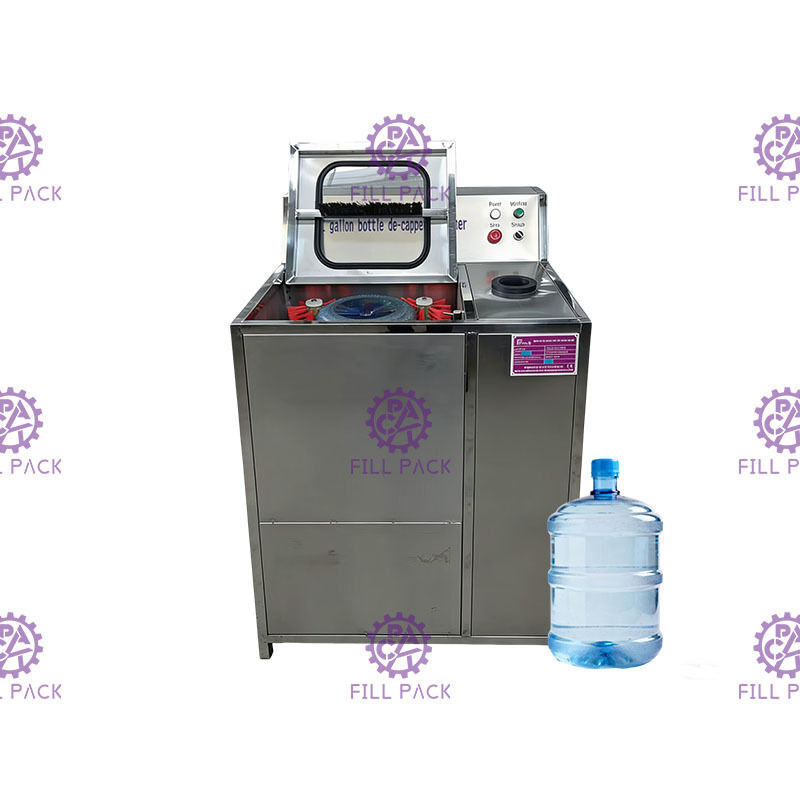

300BPH Semi automatic inner - outer 5 gallon rinser in full stainless steel 304
Quick Detail:
| Capacity | 80-300BPH |
| Suitable bottle | 5 gallon bottle |
| Material | Full stainless steel 304 |
| Automatic grade | Semi - auto type |
| Cap pulling head | 1 head |
| Brushing head | 1 head |

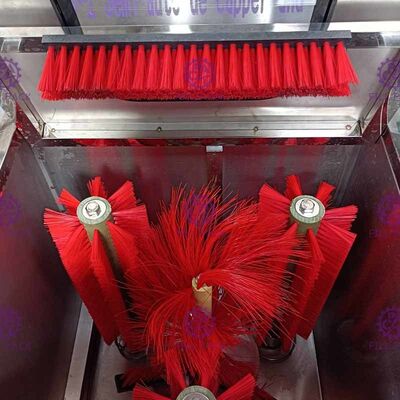

| Brushes | 8 pcs |
Description:
5 gallon rinser is mainly used for barreled mineral water and pure water line. It needs to push the barrels above with manual help. 5 gallon rinser has the advantages of stable capacity, good brushing effect, easy operation, easy maintenance and nice appearance. The material is made of high quality of stainless steel. 5 gallon rinser has long lifespan and is really with good quality and economic price.
Working process:

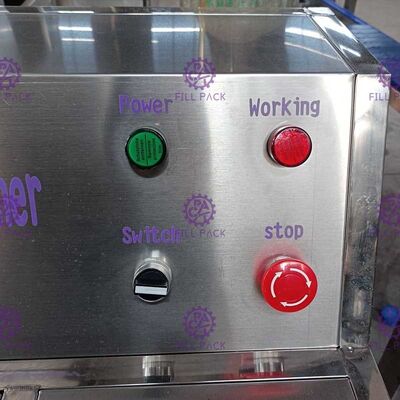

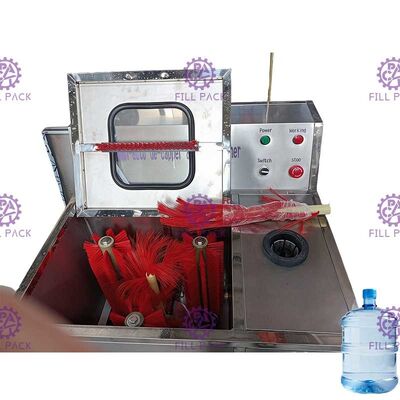

When get through the power and air source, manual put the gallon bottle upside down into the cap puller part, like the photo, then open the machine switch, manual feet tread the switch under the floor, then the gallon cap will be remove and slip from the cap hole on the right side. Then manual put the gallon bottle upside down into the machine, click the “operation” button to have the automatically inside and outside of brushing, after a while, close the switch and take out the gallon bottle, then it’s finished. The brushing time depends on the gallon bottle state.
Specifications:
| Model | BS-1 |
| Capacity | 80-300 barrels / hour |
| Automatic type | Semi auto |
| Pulling head | 1 head |
| Washing head | 1 head |
| Brusher | 8 pieces |
| Suitable bottle | 5 gallon |
| Motor power | 1.1KW |
| Dimension | 800*800*1200mm |
| Weight | 110kg |
please kindly click the play button to watch the video
