PLC Control Liquid Filling Machines With Stainless Steel Gallon Holder

PLC Control Liquid Filling Machines With Stainless Steel Gallon Holder

    • PLC Control Liquid Filling Machines With Stainless Steel Gallon Holder
    • PLC Control Liquid Filling Machines With Stainless Steel Gallon Holder
    • PLC Control Liquid Filling Machines With Stainless Steel Gallon Holder
    • PLC Control Liquid Filling Machines With Stainless Steel Gallon Holder
  • PLC Control Liquid Filling Machines With Stainless Steel Gallon Holder

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: QGF-900

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case package as machine need
    Delivery Time: 25 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 30 sets/month
    Contact Now
    Detailed Product Description
    Application: 5 Gallon Water Filling Function: Washing, Filling, Capping
    Material: Stainless Steel Filling Material: Pure Water, Mineral Water, Non-carbonated Liquid
    Capacity: 900BPH Control: PLC Control And Touch Screen
    Sutabel Bottle: 5 Gallon Bottle Power: 9.75Kw

     PLC control auto gallon feeding type gallon bottle filler with stainless steel gallon holder



    Quick Detail:



    1. Automatic control

    2. Capacity: 900 Barrel/H

    3. Filling position: 6

    4. Capping position: 1

    5. Washing position: 6

    6. With 5 gallon plastic bottle

    7. After sales service provided: Engineers avilable to service machinery overseas





    Description:



        The one unit main machine includes the washer, dryer, filler and capper for the production of

    5 gallon barreled drinking water. The washing process includes alkaline liquid inside and outside

    washing by dirty remover! inside and outside washing by disinfecting water inside and outside

    washing by pure water, the alkaline and disinfecting water can be used cyclically. The whole

    Washing, filling and sealing price is controlled by PC, and has the safe device for interlock,

    signal and self-detection.

         Host is consist of frame, water tank, pipe, pump, cylinder, transmission, electrical appliances

    and other parts ,which can complete the empty barrels of washing, filling, and capping. Through

    multi-channel flushing process, it can fill quantitatively and cap automatically. The whole process

    is controlled by computer, so it has stable flushing effect, accurate filling volume, and good sealing

    effect.





    Application range



    Jar filling machine is used for 5 gallon water filling, which is composed of washer, filling and capper.

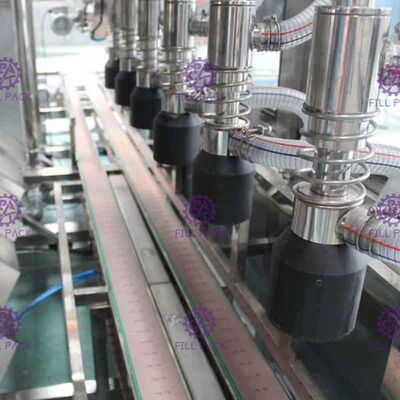

    1.304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.

    2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.

    3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts.

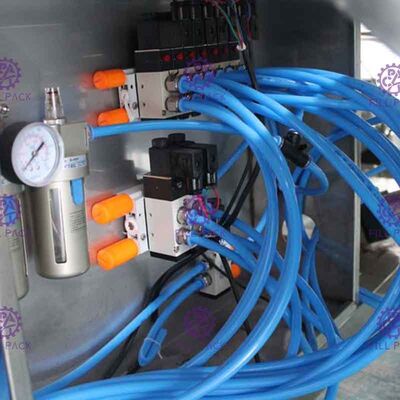

    4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.

    5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows.





    Advantages:



    A. The device employs key components of electrical appliances and metal materials manufactured

    by name brand factories from home and abroad.

    B.  It is not only with the advanced technology, high automatization, easy operation and reliable

    performances as the genuine device from abroad, but also features with small size, small weight

    and beautiful appearance,

    C. Anti-corrodibility, thorough disinfection, effective anti-air pollution and high quality.

    D. Available for the production of 5 & 3 gallons bottle filling, Capacity: 900B/H

    E.  Apply to the food & drink industry, medical industry and chemical industry widely





    Specifications:



    Model

    QGF-900

    Capacity 900 barrels / hour
    Filling head 4
    Material SUS304
    Suitable bottle 5 gallon
    Motor power 9.75 KW
    Dimension  5000*4000*1600
    Weight 3500kg







    PLC Control Liquid Filling Machines With Stainless Steel Gallon Holder

    please kindly click the play button to watch the video
