Belt Capping Type Wine Bottle Filler With Cap Lifter Level Filling Controlled

Belt Capping Type Wine Bottle Filler With Cap Lifter Level Filling Controlled

    • Belt Capping Type Wine Bottle Filler With Cap Lifter Level Filling Controlled
    • Belt Capping Type Wine Bottle Filler With Cap Lifter Level Filling Controlled
    • Belt Capping Type Wine Bottle Filler With Cap Lifter Level Filling Controlled
    • Belt Capping Type Wine Bottle Filler With Cap Lifter Level Filling Controlled
  • Belt Capping Type Wine Bottle Filler With Cap Lifter Level Filling Controlled

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: QGF-900

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case package as machine need
    Delivery Time: 25 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 30 sets/month
    Contact Now
    Detailed Product Description
    Application: 5 Gallon Water Filling Material: Stainless Steel
    Filling Material: Pure Water, Mineral Water, Non-carbonated Liquid Capacity: 900BPH
    Control: PLC Control And Touch Screen Sutabel Bottle: 5 Gallon Bottle
    Power: 9.75Kw Product Name: Gallon Bottle Filling

            Level filling controlled belt capping type 3 in 1 gallon bottling machine with cap lifter





    Gallon bottling machine----APPLICATION:

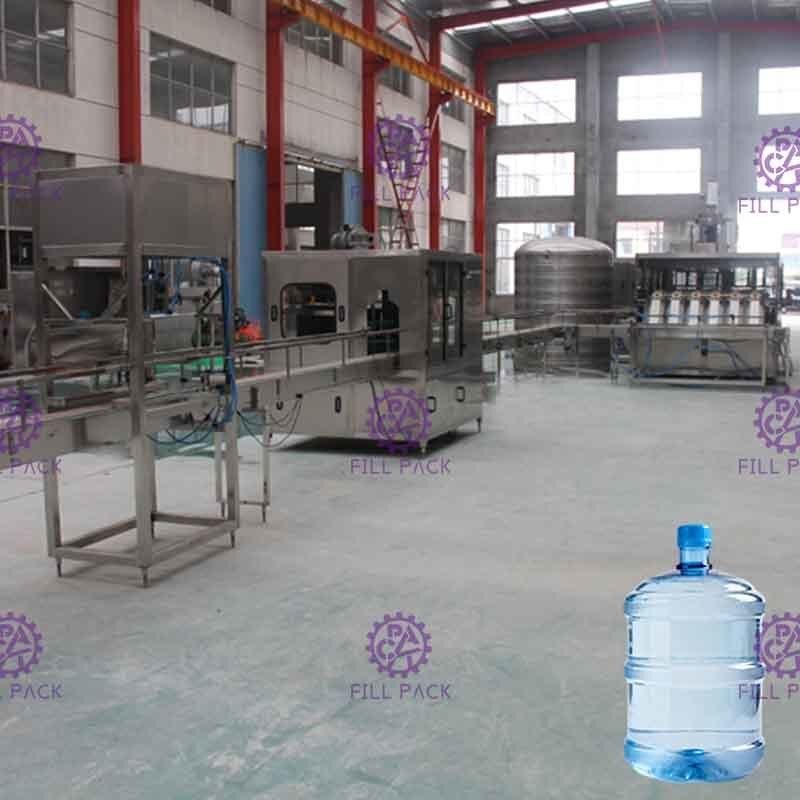

    Gallon bottling machine is especially used for 5 Gallon barrel pure water washing, filling, capping production line.





    Gallon bottling machine---CHARACTERISTICS:



    The parts with touch water adopt high-quality stainless steel. The cylinder gear runs smoothly and the fixed position is correct. It adopts inserting-type washing technology to remove washing blind angle.





    Gallon bottling machine---Product Description



    1) Gallon bottling machine combines the functions of rinsing, filling and capping.

    2) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.

    3) The main electrical parts are from Siemens and Omron.

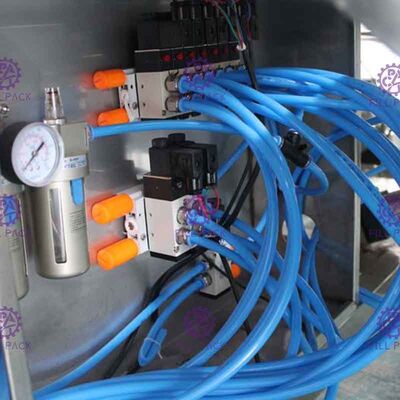

    4) Pneumatic parts are imported.

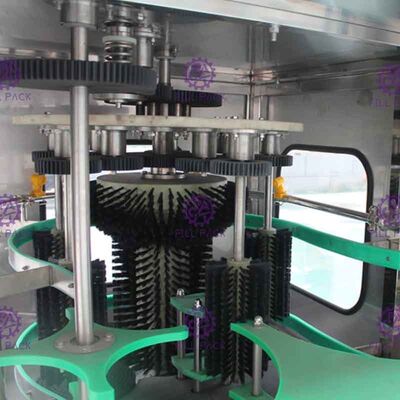

    5) Rinsing nozzles adopt American spraying system technology.

    6) With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine





    Gallon bottling machine----More technical details



    model production capacity power  overall dimensions
    QGF---120 120B/H 2.8kw 2500*900*1445
    QGF---200 200B/H 3.3kw 3000*1350*1560
    QGF---300 300B/H 4.5kw 3500*1400*1560
    QGF---600 600B/H 5.7kw

    4500*3000*1560

    QGF---900 900B/H 9.75kw

    5000*4000*1600











    Belt Capping Type Wine Bottle Filler With Cap Lifter Level Filling Controlled






    Belt Capping Type Wine Bottle Filler With Cap Lifter Level Filling Controlled



    please kindly click the play button to watch the video
