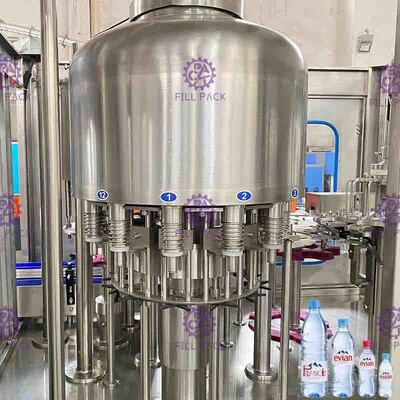

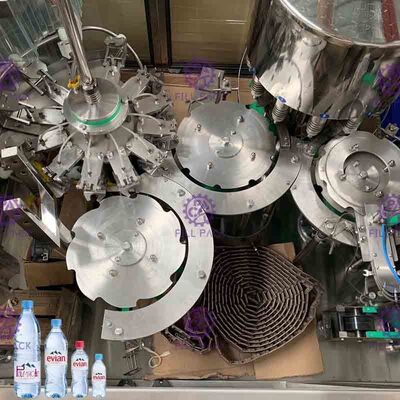

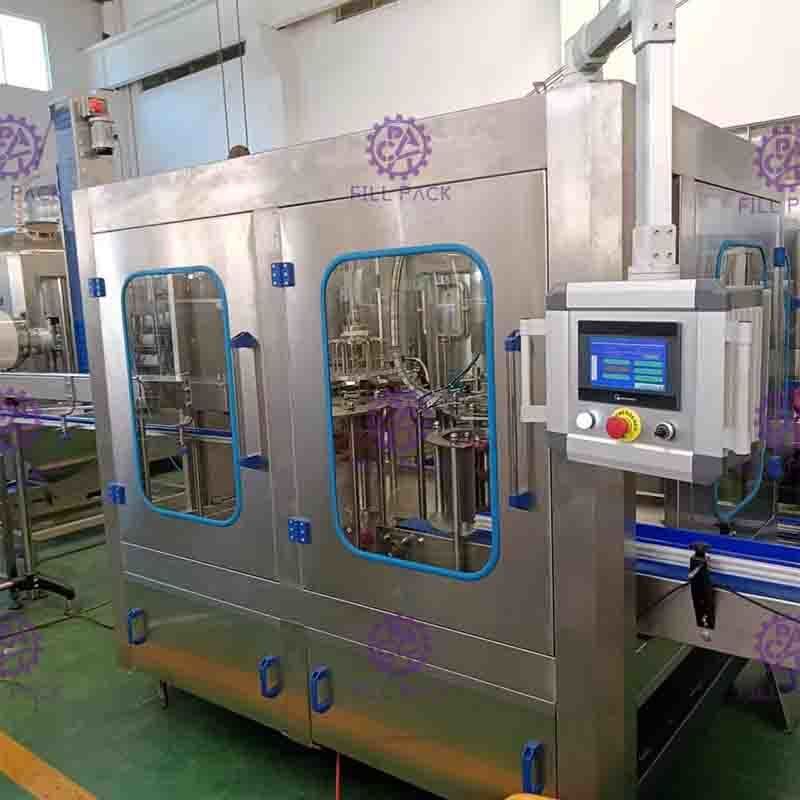

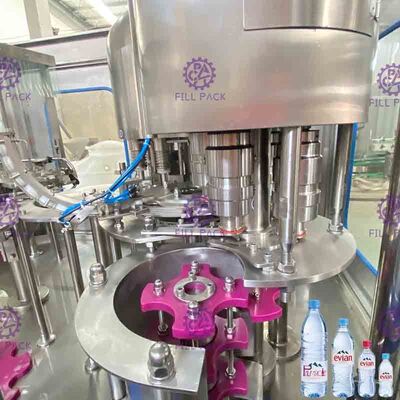

Non - Carbonated Drink Automatic Filling Machine 1200bph Rotary 3 In 1

Non - Carbonated Drink Automatic Filling Machine 1200bph Rotary 3 In 1

    • Non - Carbonated Drink Automatic Filling Machine 1200bph Rotary 3 In 1
    • Non - Carbonated Drink Automatic Filling Machine 1200bph Rotary 3 In 1
    • Non - Carbonated Drink Automatic Filling Machine 1200bph Rotary 3 In 1
    • Non - Carbonated Drink Automatic Filling Machine 1200bph Rotary 3 In 1
  • Non - Carbonated Drink Automatic Filling Machine 1200bph Rotary 3 In 1

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: CGF12-12-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: USD 19800/Set
    Packaging Details: Wooden case pacakge or Blanket cloth package
    Delivery Time: 25-30 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 20 Sets/Month
    Contact Now
    Detailed Product Description
    Type: Filling Machine Application: Beverage
    Packaging Type: PET Bottle- 45 Size Screw Cap, 2-5L Packaging Material: Plastic
    Automatic Grade: Automatic Filling Capacity: 1200BPH
    Structure: 3 In 1 Monoblock Conveyor: With 2m Feeding Chain Conveyor And 4m Outlet Conveyor
    Feature: With Belt Lubrication Function Power: 3.5kw
    Driven Type: Electric



    Non - Carbonated Drink Automatic Filling Machine 1200bph Rotary 3 In 1





    Quick Detail:



    1) Bottle water filling machine

    2) Filling capacity: 1200BP

    3)Filling material: Drinking water or mineral water

    4)Suitable bottle: PET bottle from 2-5L

    5)Automatic type: Full automatic with PLC touch screen

    6)Structure: 3 in 1 monoblock

    7)With independent cabinet





    Main Description:



    The 5L filler is used for filling drinking water, pure water, mineral water in 5L plastic bottle with screw cap for market selling.





    Features:



    1. The 5L filler is with bottle feeding, washing, filling, capping, cap sorting, cap loading function, cap wasing system, with belt lubrication function, no bottle no filling control system, no cap no work function.



    2. The 5L filler is monoblock with bottle washing, filling capping parts together, 12 rotary washing heads,12 rotary filling heads, 5 rotary capping heads, more convenient to use.



    3.The 5L filler is full automatic with PLC touch screen control system, speed is stepless adjustable.



    4. The 5L filler main adopts high quality of stainless steel 304 material, meet with the food grade.



    5. The 5L filler adopts the normal filling pressure, with stable filling function and high filling precision.



    6. The 5L filler set with 2m inlet air conveyor and 4m outlet chain conveyor, the conveyor width is adjustable as your bottle size.





    Main Technician Datas:



    Model CGF12-12-5
    Capacity 1200BPH (5L)
    Washing head 12
    Filling head 12
    Capping head 5
    Main material SUS304
    Applicable bottle PET bottle-screw cap, 2-5L
    Filling pressure Normal pressure
    Washing material Clear water, pure water
    Water washing pressure 0.25Mpa
    Filter membrane shell FRP membrane shell
    Pump power 3.5kw
    Size 3100*2300*1970mm
    Weight 3200kg




    Non - Carbonated Drink Automatic Filling Machine 1200bph Rotary 3 In 1

    please kindly click the play button to watch the video
