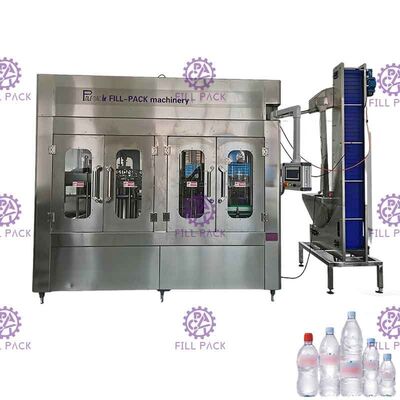

Monoblock Drinking Water Filling Machine , Washing Filling and Sealing 3 in 1

Monoblock Drinking Water Filling Machine , Washing Filling and Sealing 3 in 1

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FillPack
Certification: CE / ISO9001 - 2008
Model Number: CGF32-32-10
Application: PET bottle water
Automatic grade: Automatic
Fuction: washing filling capping in one unit
Capacity: 2000 - 3000BPH
material: stainless steel

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 30000-35000 USD
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Deposit
Payment Terms: L/C, T/T,
Supply Ability: 20 Sets Per Months
Get Best Price Contact Now

Detail Information

Application: Non Gas Water Automatic: Automatic
Warranty: 1 Year Function: Rinsing, Filling, Capping In One Unit
Capacity: 15000 Bottles Per Hour Voltage: Customize
Product Name: Drinking Water Filling Machine Processing Line: Drinking Water Filling
High Light:

water bottle filling machine

,

water filler machine

Product Description

Washing, Filling and Sealing 3 in 1 Monoblock Drinking Water Filling Machine





Quick Detail:



Machine: Small Bottle Automatic Water Filling Machine Monoblock

Applicative Bottle: PET bottle

Applicative cap: palstic screw cap

Applicative volume: 0.2 - 2L

Applicative liquid: non gas water
Production Capacity: 15000bph
Machine construction: washing filling capping 3 in 1

Advantage: USA - Germany technology

Service: Engineers availble to service Machinery overseas





Description:



1. This water filling machine : used for pure water,mineral water , drinking water filling into PET bottles,

or glass bottles.

2. The water filling machine is Wash-filling-capping 3-in-1unit.

3. The water filling machine is sutiable for 500-2000ml PET bottle filling, this machine can realize one

machine different size , just change the different star wheels.

4. The water filling machine capacity can be 1000-20000bph .

5. We strictly manufacture and manage according to IOS9001:2000 System.And we sincerely

welcome customers all over the world vist our company,or browse,visit our website.Any requirement,

please contact us via E-mail,we will provide beat service for customers.





Running principle:

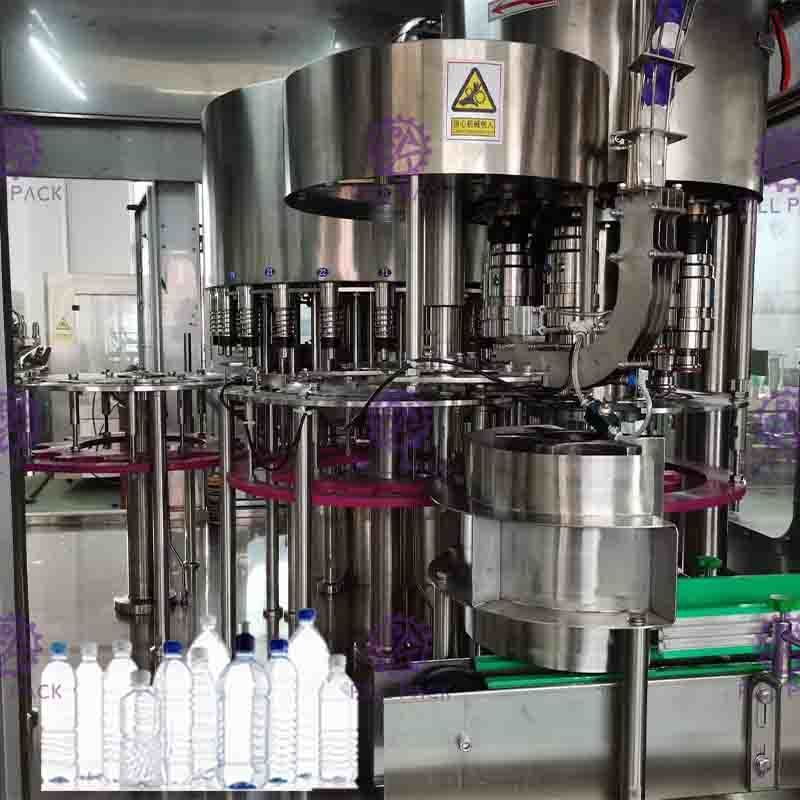

1. Bottles are delivered by air conveyor to 3 in 1 unit of washing part. The bottle neck will be hold

tightly by clamp to upside down the bottles, which will not damage bottle. Then the bottles are

washed by pumped water.

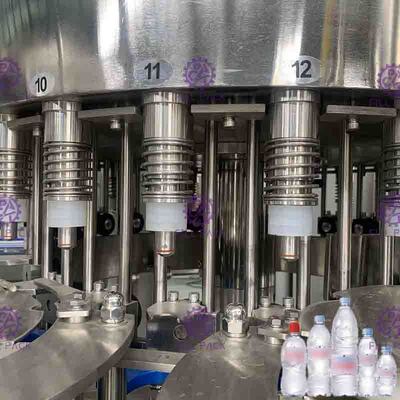

2. After washing, bottles are rotated by the star-wheels to the filling position. Bottle neck is also

hold tightly by clamp. There is a cam to up and down the bottles to make bottle mouth position

with filling head, and then to realize filling. The filling volume and filling time will be pre-set in PLC.

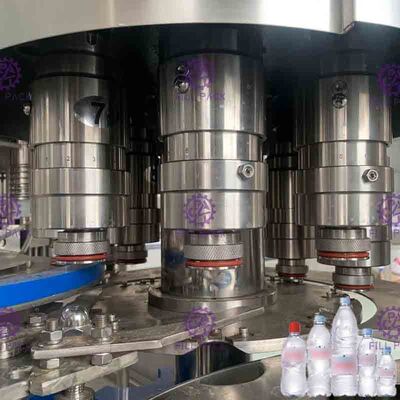

3.After finish filling, bottles are still rotated by star-wheels to capping position. Here we design a bottle

caps unscrambler and an automatic cap dropping to make the caps drop correctly to bottle mouth. If

the cap is upside down or damaged, the machine will automatically delete the caps. After finish all

actions, bottles are delivered to the packaging line.





Advantages:



- Small in size

- High level of automation: PLC control, no bottle, no filling

- Easy operation and maintanance

- High level of filling precision

- Material: SUS 304





Main technical data:



Model CGF8-8-3 CGF12-12-4 CGF18-18-6 CGF24-24-8 CGF32-32-10
Washing Head No 8 12 18 24 32
Filling Head No 8 12 18 24 32
Capping Head No 3 4 6 8 10

Rated

Capacity

(500ml)

3000BPH 4000BPH 7000-8000BPH 10000-15000BPH 15000-20000BPH
Overall Size

1900*1420*

2000mm

2200*1600*

2300mm

2450*1900*

2300mm

2750*1180*

2400mm

4000*2300*

2300mm

Weight 1.5T 2.2T 3.0T 4.0T 8.0T

Power

(KW)

3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
Rated Voltage Customized Customized Customized Customized

Customized







After-sales service:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only

one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
