46 Filling Nozzles Semi Automatic Liquid Filling Machine With Vacuum Pump

46 Filling Nozzles Semi Automatic Liquid Filling Machine With Vacuum Pump

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: FillPack
Certification: CE,ISO
Model Number: CGF46-46-14

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD 50000-60000 per Set
Packaging Details: Blanket cloth package
Delivery Time: 30-35 days
Payment Terms: T/T, L/C,
Supply Ability: 20 Sets/Month
Get Best Price Contact Now

Detail Information

Type: Water Filling Machine Filling Capacity: 25000BPH (500ml)
Packaging Type: PET Bottle 200-2000ml With Screw Cap Packaging Material: Plastic
Automatic Grade: Automatic With Siemens PLC Touch Screen Structure: Polygon
Feature: Without Outside Frame Filling Type: With Vacuum Pumping Function
Gravity: Low Gravity Power: 10kw
Driven Type: Electric Condition: New
High Light:

water bottle filling machine

,

water filler machine

Product Description

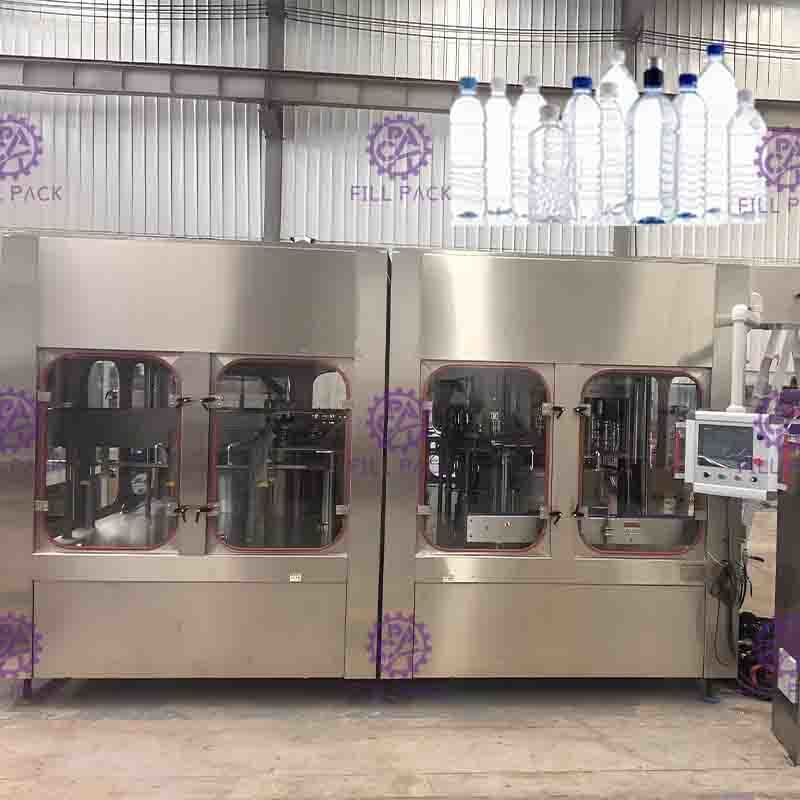

46 filling nozzles water bottle filling machine with vacuum pump and transparent cap rinsing device





Quick Detail:



Type Water Filling Machine
Filling capacity 25000BPH (500ml)
Packaging Type PET bottle 200-2000ml with screw cap
Automatic Grade  Automatic with Siemens PLC touch screen
Structure Washing filling capping 3 in 1 monoblock
Feature 1 Without outside frame
Feature 2 Polygon
Feature 3 With vacuum pumping function
Feature 4 Whole machine is made with two pieces part, easy to remove and shipping.
Feature 5 Low gravity





Parameters:



Model CGF46-46-14
Capacity 25000BPH (500ml)
Washing head 46
Filling head 46
Capping head 14
Main material SUS304
Applicable bottle PET bottle-screw cap, 200-2000ml
Automatic type  Siemens PLC touch screen
Filling pressure Normal pressure
Washing material Clear water, pure water
Water washing pressure 0.25Mpa
Power 10kw
Size 4000*2500*2000mm
Weight 4000kg





Usage:



 The water bottle filling machine is used for filling pure water or mineral water in PET bottles with screw cap.

Washing, filling and capping is intergrated in one machine.

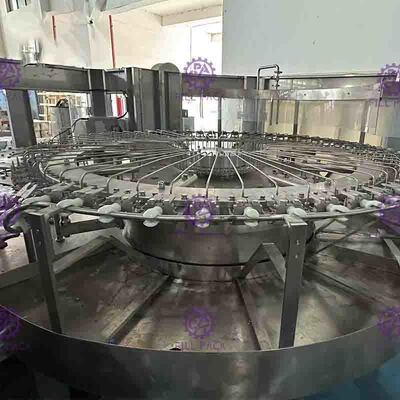

1) Washer



-- 46 Washing heads

--No glass and steel outside protection frame

--Non pipe rinsing

--Stainless steel 304 rinsing cramps are used in the bottle washing process, which is hygienic and durable.

--The empty bottles can be turned over 180° along the conveying rail.

--There are two times of internal and external washing, the efficiency of bottle washing is high.

--Washing machine adopts Sunswell original overturn and double-opened bottle clip.

--Washing cramps is set with efficient spray on nozzle.

--The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.

--Equipped with bottle jam protection device.

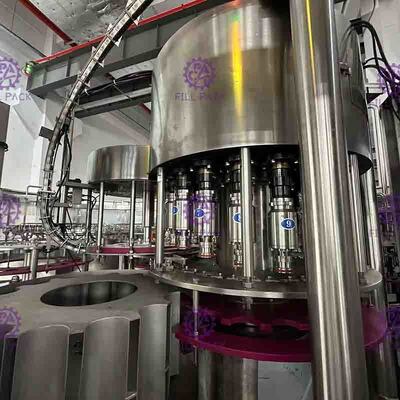

2) Filler



-- 46 Filling heads

--No glass and steel outside protection frame

--With streamline dial wheel and low gravity

--The speed is enhanced.

--Adopts the Siemens PLC touch screen

--Speed adjustable

--Adopts the hot filling structure for water filling, with vacuum pumping function, liquid high level tank.

-- The water bottle filling machine is reasonable and hygiene dead angle.

-- The filling valve material is SUS304.
-- The filling system has liquid level automatic control.
-- Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill.

--Bottle is conveying by the dia wheel in the filling part.





3) Capper



-- 14 Capping heads

--No glass and steel outside protection frame

--With transparent cap rinsing device.

--Plastic screw cap capping device

--With anti-cap removing unit

--The machine is polygon type with two pieces, which is easy to remove and shipping.





4) Vacuum pump:



Vacuum pumping for drinking water.
