2000BPH Automatic Drinking Water Filling Machine For Small PET Bottle

Product Description

2000BPH Automatic Drinking Water Filling Machine For Small PET Bottle

Product description :

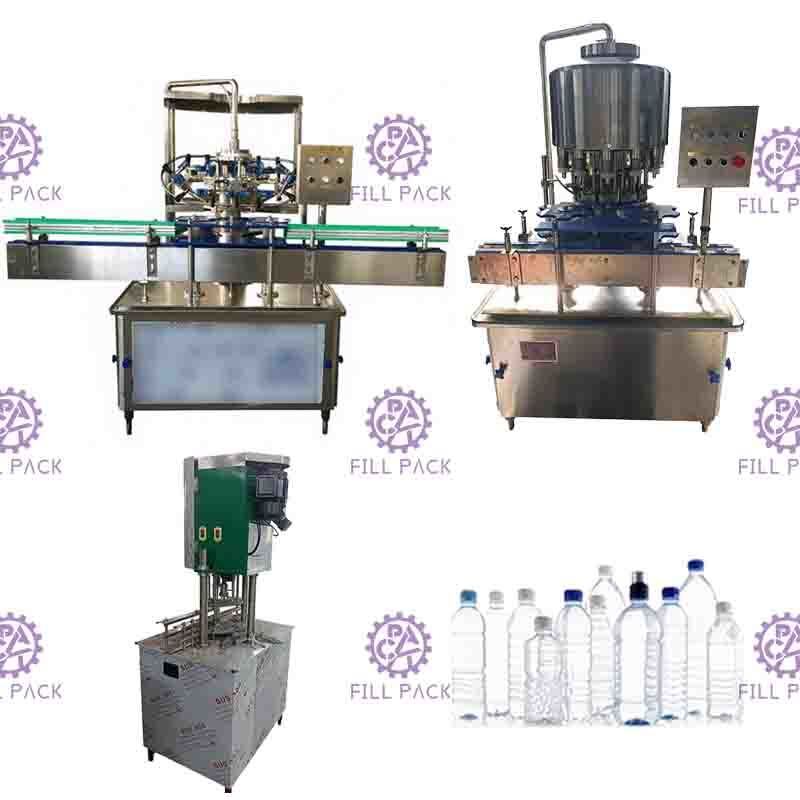

The bottle filling line contains three parts, washer ,filler and capper devices.

- Linear drinking water filling plant;

- Solinoid valve control;

- Stainless steel material which touch the filling material;

- Suitable for filling drinking water, sauce etc;

- Different bottles can be applied in same machine by changing some parts;

- Suitable for small scale project;

- Well-known electric components;

- Easy operation and maintenance

Principle:

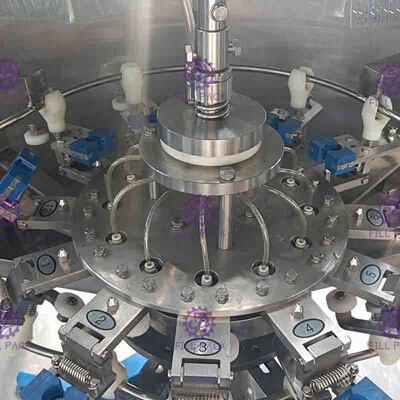

1.The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station.

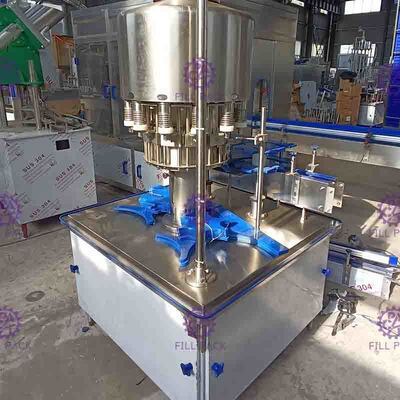

2.The bottles will be taken into filler by conveyor, the dia plate will turn each bottle to be caught by holding clap, with driven energy of motor, the holding claps will go up and down as main axis, when clap hold bottle, it will go up to press bottle mouth closely to filling head, at the meantime, filling value open and start to fill, when the bottle mouth leave the filling head, filling stop.

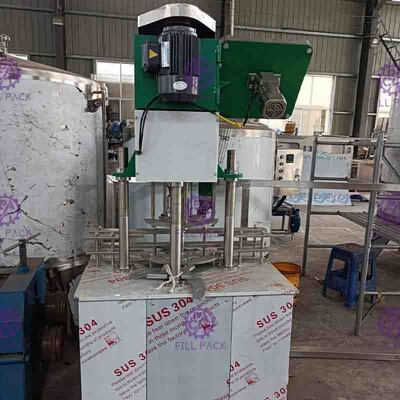

3.The machine is used for capping for plastic screw caps, it includes auto cap loader and capping system 2 parts. Workers put bulk qty caps into cap loader, the cap loader will unscramble caps automatically and bring caps down in cap rail and then to capping head. Cap loader can hold more than 200pcs of caps each time, it will be convenient for adding caps often. When capping head catch cap, it will go down to bottle mouth and finish capping.

Quick Detail:

Capacity:                 2000BPH @500ml plastic bottle

Machine structure: Linear type filling line

Material:                   SUS304 / SUS316

Processing type:    fill standard drinking water into plastic containers

Filling type:              Normal pressure filling machine

Capping type:         screw cap capping machine

Warranty time:        one year

Rotary bottle washer:

Rising heads: 12 pcs

Capacity: 0-3000BPH (each bottle rinsing time 4s)

Power: 0.92KW

Dimension: 1050*950*1700mm

Weight: 700KG

Applicable bottle: D∮50-100mm,H 50-350mm

Normal pressure filler:

Filling heads: 12 pcs

Power: 1.1KW

Dimension: 1100*1050*1850mm

Weight: 800KG

Screw cap capping machine:

Capping head: 1 pc

Power: 1.1KW

Dimension: 1000*850*2000mm

Weight: 600KG

Competitive Advantage:

1.The bottle filling line has a equipment installation and debugging

2. Every 3 years, we can help to overhaul the machine free (Labor)

3. Free production technology and process configuration

4. We can help you to design the production line, workshop and provide turn-key projec

6. We can provide internship service and help you train the operator and mechanic

7. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
