500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Filling Equipment / Plant / Machine / System / Line

500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Filling Equipment / Plant / Machine / System / Line

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FillPack
Certification: CE / ISO9001 - 2008
Model Number: CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 20000-40000USD
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Deposit
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 15 Sets Per Months
Get Best Price Contact Now

Detail Information

Warranty: 1 Year For Spare Parts Capacity: 3000-24000 Bph
Fuction: Washing Filling Capping 3 In 1 Suitable Bottle Size: 0.3-2L PET Bottle
Application: PET Bottle Water Power: 5.2 Kw
Dimension(L*W*H): 2750*2400*2400mm Weight: 2500kg
High Light:

water bottle filling machine

,

water filler machine

Product Description

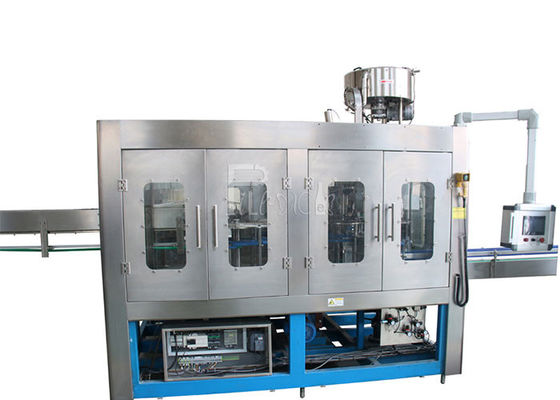

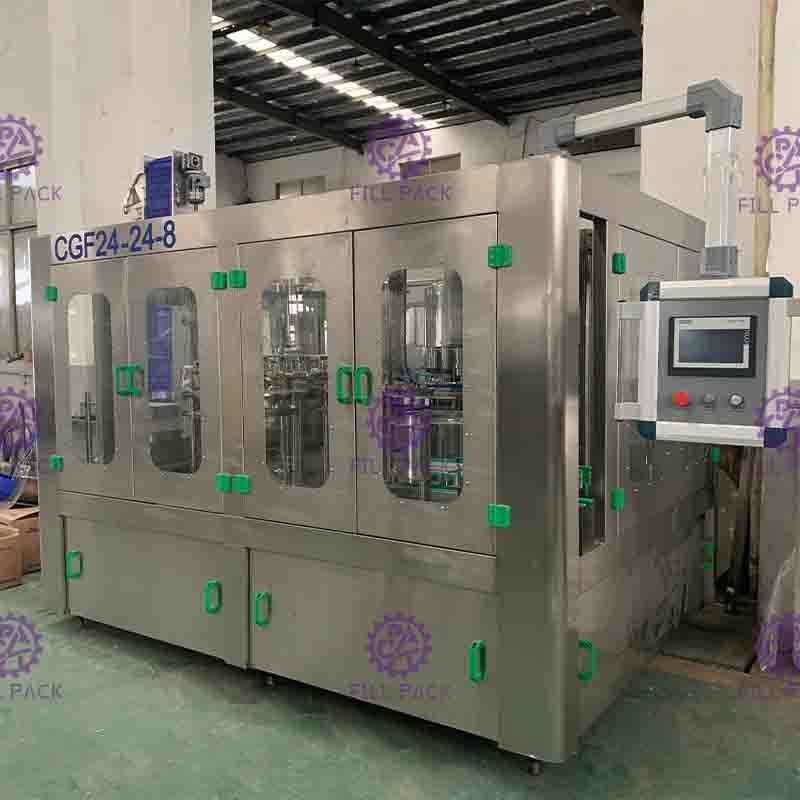

Decription of CGF24-24-8 Pure drinking water PET bottle 3 in 1 bottling line for 0-2L bottle

>>>Production:

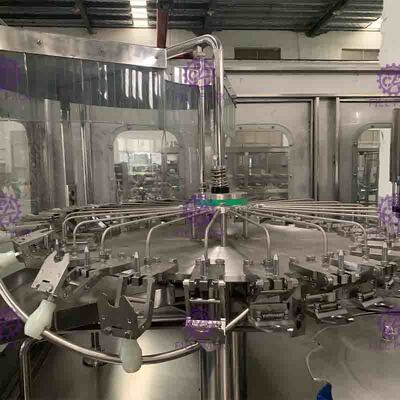

★ The 2L water producing machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.

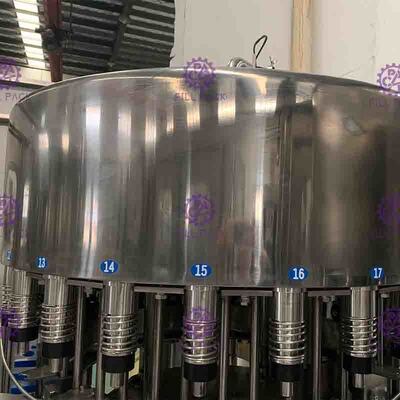

★ The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used.The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

1. Drinking water filling machine PET water bottling machine Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.
2. The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.

1) Drinking water filling machine PET water bottling machine Adopted Germanyanti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2) The rotate plate is made of SUS AISI304, large flat toothed bearing.


This drinking water filling machine is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality.

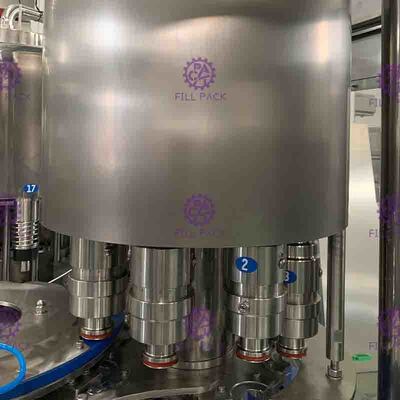

1) Introduce most advanced cap sealing technology called France "ZALKIN ". With the help of expert from institute of electro mechanics and mechanical engineering of Shanghai Communications University, we successfully designed. For example: I) the screwing capping head cam (the main parts which can assure the machine run stationary), while adopting "ZALKIN" technology, the expert improve the authenticity and stability of the machine focused on dynamics and kinematics. II) Screwing capping head (the main parts which can assure the capping quality)



Parameter
Model
CGF24-24-8
Capacity(B/H)
12000
Bottle size
Neck :φ50-100mm:Height:150-320mm
Water pressure
0.18-0.25Mpa
Water consumption(kg/h)
1000
Washing station
18
Loading-Dripping-discharge station
2-2-2
Filling precision
<+1MM
Air pressure
0.5Mpa
Air consumption (m³/min)
0.3
Power(kw)
5.2
Weight(kg)
4000
Dimension(L*W*H)(mm)
2750*2400*2400 mm
Electrical apparatus
Transducer
Simens-Germany
Touch screen
Simens-Germany
PLC
Simens-Germany
Stabilized voltage supply
MingWei-TaiWan
Contactor
Schnider-French
Approach switch
Schnider-French
Air switch
Schnider-French
Optional RO water treatment machines in the water filling line
Model
Capacity(liter per hour)
RO-1000
1000LPH
RO-3000
3000LPH
RO-5000
5000LPH
RO-6000
6000LPH
RO-10000
10000LPH
Optional Washing-filling-capping machines in the filling line(3-in-1 and Linear type)
3in1(0-2L bottle)
Capacity(bottle per hour)
3in1(3-10L bottle)
Capacity
Linear type(3-10L bottle)
Capacity
CGF8-8-3
2000-3000BPH
CGF8-8-3B
0-1000
CGF4-4-1
500BPH
CGF12-12-4
3000-4000BPH
CGF12-12-4B
0-1500
CGF6-6-1
750BPH
CGF18-18-6
6000-7000BPH
CGF18-18-6B
0-2500
CGF8-8-1
1000BPH
CGF24-24-8
11000-12000BPH
CGF24-24-8B
0-3500
CGF10-10-1
1500BPH
CGF32-32-10
14000-15000BPH
CGF32-32-10B
0-5000
CGF12-12-1
2000BPH
CGF40-40-10
19000-20000BPH




CGF50-50-12
23000-24000BPH





More capacities if you need, we can also customize that for you. please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.


500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Filling Equipment / Plant / Machine / System / Line 0



Other machines in this production line

1, Bottle blow molding machine

2, Water treatment system

3, Labeling machine

4, Code printer

5, Film shrinking packing machine
How to choose the machine? You need to tell us what kind of film you need and what kind of bottle arrangement you need.
