500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Bottling Equipment / Plant / Machine / System / Line

500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Bottling Equipment / Plant / Machine / System / Line

    • 500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Bottling Equipment / Plant / Machine / System / Line
    • 500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Bottling Equipment / Plant / Machine / System / Line
    • 500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Bottling Equipment / Plant / Machine / System / Line
  • 500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Bottling Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CGF24-24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Capacity: 3000-24000 Bph Suitable Bottle Size: 0.3-2L PET Bottle
    Automation: Automatic Condition: New
    Dimension(L*W*H): 2750*2400*2400mm Voltage: 380V 50Hz

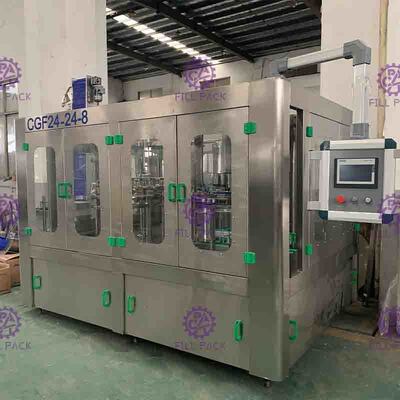

    Decription of CGF24-24-8 Pure drinking water PET bottle 3 in 1 bottling line

    >>>Production:

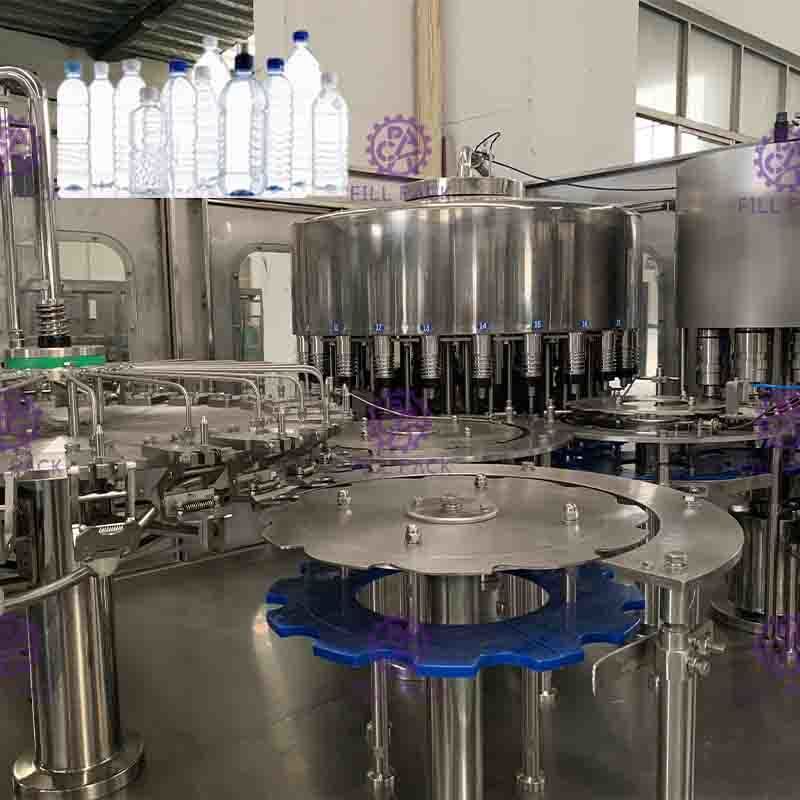

    ★ The PET water bottling machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.

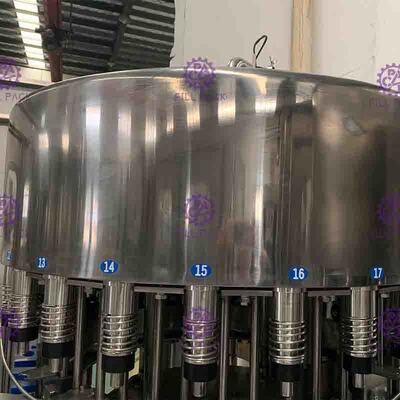

    ★ The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used.The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

    1. PET water bottling machine Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.
    2. The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.

    1) PET water bottling machine Adopted Germanyanti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
    2) The rotate plate is made of SUS AISI304, large flat toothed bearing.

    This PET water bottling machine is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality.

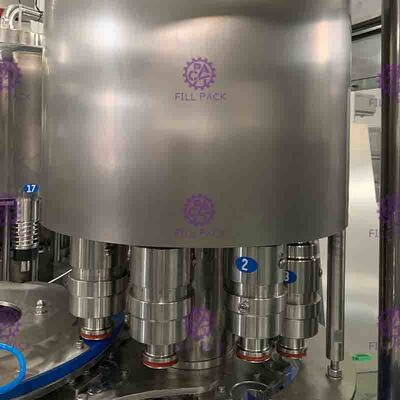

    2) The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.

    Parameter
    Model
    CGF24-24-8
    Capacity(B/H)
    12000
    Bottle size
    Neck :φ50-100mm:Height:150-320mm
    Water pressure
    0.18-0.25Mpa
    Water consumption(kg/h)
    1000
    Washing station
    18
    Loading-Dripping-discharge station
    2-2-2
    Filling precision
    <+1MM
    Air pressure
    0.5Mpa
    Air consumption (m³/min)
    0.3
    Power(kw)
    5.2
    Weight(kg)
    4000
    Dimension(L*W*H)(mm)
    2750*2400*2400 mm



    Electrical apparatus
    Transducer
    Simens-Germany
    Touch screen
    Simens-Germany
    PLC
    Simens-Germany
    Stabilized voltage supply
    MingWei-TaiWan
    Contactor
    Schnider-French
    Approach switch
    Schnider-French
    Air switch
    Schnider-French



    Optional RO water treatment machines in the water filling line
    Model
    Capacity(liter per hour)
    RO-1000
    1000LPH
    RO-3000
    3000LPH
    RO-5000
    5000LPH
    RO-6000
    6000LPH
    RO-10000
    10000LPH
    Optional Washing-filling-capping machines in the filling line(3-in-1 and Linear type)
    3in1(0-2L bottle)
    Capacity(bottle per hour)
    3in1(3-10L bottle)
    Capacity
    Linear type(3-10L bottle)
    Capacity
    CGF8-8-3
    2000-3000BPH
    CGF8-8-3B
    0-1000
    CGF4-4-1
    500BPH
    CGF12-12-4
    3000-4000BPH
    CGF12-12-4B
    0-1500
    CGF6-61
    750BPH
    CGF18-18-6
    6000-7000BPH
    CGF18-18-6B
    0-2500
    CGF8-8-1
    1000BPH
    CGF24-24-8
    11000-12000BPH
    CGF24-24-8B
    0-3500
    CGF10-10-1
    1500BPH
    CGF32-32-10
    14000-15000BPH
    CGF32-32-10B
    0-5000
    CGF12-12-1
    2000BPH
    CGF40-40-10
    19000-20000BPH




    CGF50-50-12
    23000-24000BPH





    More capacities if you need, we can also customize that for you. please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.


    500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Bottling Equipment / Plant / Machine / System / Line

    Other machines in this production line
    1, Bottle blow molding machine
    ★ Automation grade: We have Semi-auto and automatic type, the semi-auto type have preform heater and bottle blowing machine.
    2, Water treatment system
    3, Labeling machine
    4, Code printer
    5, Film shrinking packing machine
