500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line

500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line

    • 500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line
    • 500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line
    • 500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line
  • 500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CGF24-24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Capacity: 3000-24000 Bph Fuction: Washing Filling Capping 3 In 1
    Suitable Bottle Size: 0.1-2L PET Bottle Dimension(L*W*H): 2750*2400*2400mm

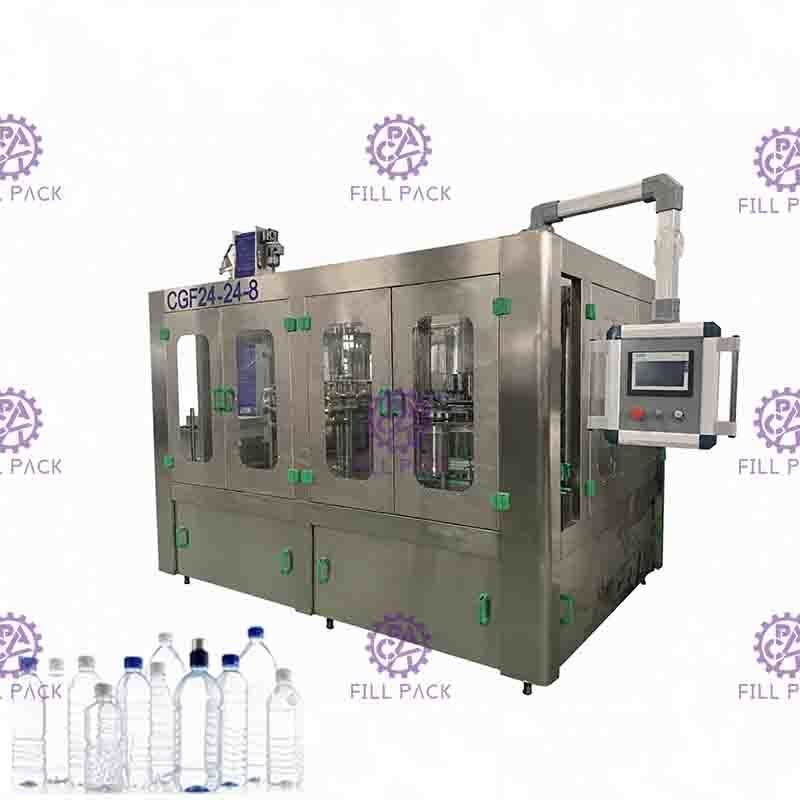

    Decription of CGF24-24-8 Pure drinking water PET bottle 3 in 1 bottling line

    >>>Production:
    ★The 1L monoblock manufacturing machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.
    ★The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

    1.1L monoblock manufacturing machine Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.
    2.By adjusting the height of the rotary parts to adapt for different bottle height.

    1) 1L monoblock manufacturing machine Adopted Germanyanti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.

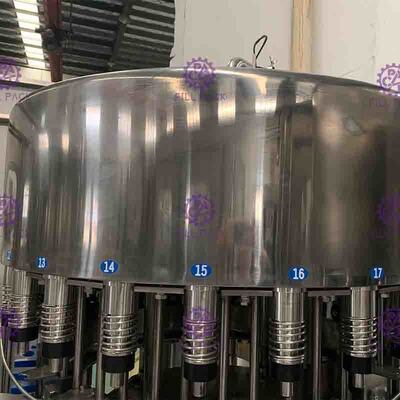

    2) The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling.

    This 1L monoblock manufacturing machine is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality.

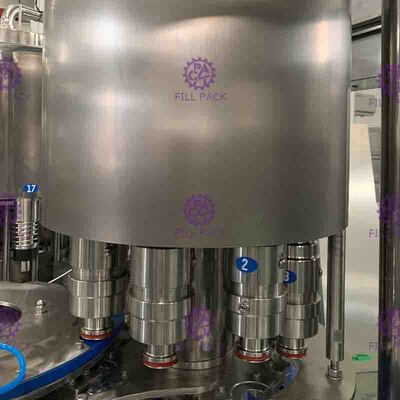

    A bottle inlet detect switch is settled on the screwing capper.

    Parameter
    Model
    CGF24-24-8
    Capacity(B/H)
    12000
    Bottle size
    Neck :φ50-100mm:Height:150-320mm
    Water pressure
    0.18-0.25Mpa
    Water consumption(kg/h)
    1000
    Washing station
    18
    Loading-Dripping-discharge station
    2-2-2
    Filling precision
    <+1MM
    Air pressure
    0.5Mpa
    Air consumption (m³/min)
    0.3
    Power(kw)
    5.2
    Weight(kg)
    4000
    Dimension(L*W*H)(mm)
    2750*2400*2400 mm

    500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line

    Other machines in this production line

    1, Bottle blow molding machine

    ★Usually the system is equipped with Air compressor, air filter and optional device including air storage tank, air dryer, mould chiller.

    2, Water treatment system

    3, Labeling machine

    4, Code printer

    5, Film shrinking packing machine
