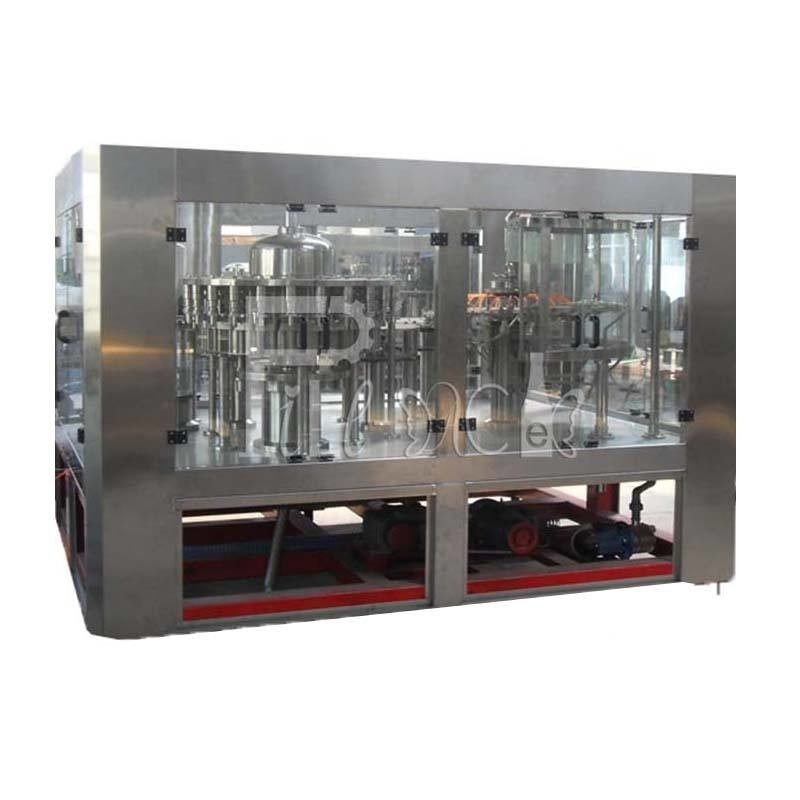

Air Lifting Beverage Filling Equipment 12000BPH With Metal Caps

Air Lifting Beverage Filling Equipment 12000BPH With Metal Caps

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: RCGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Color: Silver Gray Electrical Brand: Mitsubishi, OMRON, SIEMENS
Capacity: 6000-8000BPH Cap Style: Metal Caps
Suitable Bottle Size: 0.3-2L Glass Bottle Control: PLC Control With Touch Screen
High Light:

Air lifting beverage filling equipment

,

12000BPH beverage filling equipment

,

12000BPH beverage bottling machine

Product Description

Air lifting elevator bottled drink filling device / unit / system 12000-15000BPH



The transmission for bottles is adopted with locked the bottle neck. The advantages are:
(1) When customer needs to change the bottle shape, but the diameter of the bottle is the same or only small change, don't need to make any adjustment of the filling machine, can meet customer’s needs. When customer changes the bottle shape and diameter is bigger, also only need to use a shorter time to replace the body of the star wheel part. bottled drink filling device is convenient for the customer's use, save the bottle shape change cost and time.
(2) Avoiding the second pollution of bottle neck.

Characteristics & Advantage

1. bottled drink filling device is designed more compact, more stable of controlling system, adopts with German FESTO, easy to operate and high automatically.
2. Using high accuracy and high speed filling valve. Liquid level is more accurate without water loss, ensuring the quality of filling.
3. Capping heads use magnetic torque device, ensuring the capping effect and protect the bottle cap.
4. Using frequency conversion motor of German SEW or America ABB, can be more convenient to adjust the capacity.
5. Controlling system has the liquid level control function, lack of cap detection alarm function, automatic alarm for card bottles function etc.
6. Using advanced touch screen control, can realize human-machine conservation.

Model
RCGF32-32-12
Capacity (B/H)
12000-15000(500ml)
Bottle size
Neck :φ50-100mm:Height:150-320mm
Water Pressure
0.18-0.25Mpa
Water consumption(kg/h)
1000
Filling precision
<+0.5MM
Air pressure
0.5Mpa
Air consumption
0.3m3/min
Weight(kg)
12000-15000
Dimension(L*W*H)
3800*2800*2500mm
Electrical apparatus:
Transducer
Mitsubishi
Touch screen
Easyview-TaiWan
PLC
Mitsubishi
Stabilized voltage supply
MingWei-TaiWan
Contactor
Schneider
Approach switch
Autonics
Air switch
Schneider
