Small Bottle Automatic Water Filling Machine Monoblock

Small Bottle Automatic Water Filling Machine Monoblock

    • Small Bottle Automatic Water Filling Machine Monoblock
    • Small Bottle Automatic Water Filling Machine Monoblock
    • Small Bottle Automatic Water Filling Machine Monoblock
    • Small Bottle Automatic Water Filling Machine Monoblock
  • Small Bottle Automatic Water Filling Machine Monoblock

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CGF12-12-4
    Condition: New
    Application: PET bottle water
    Automation: Automatic
    Suitable Bottle Size: 0.3-2L PET Bottle
    Fuction: washing filling capping monoblock
    Capacity: 3000-4000BPH
    Warranty: 1 Year for Spare Parts
    Service: Technician avaliable overseas

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 12000-30000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: TT & L/C
    Supply Ability: 20 Sets Per Months
    Contact Now
    Detailed Product Description

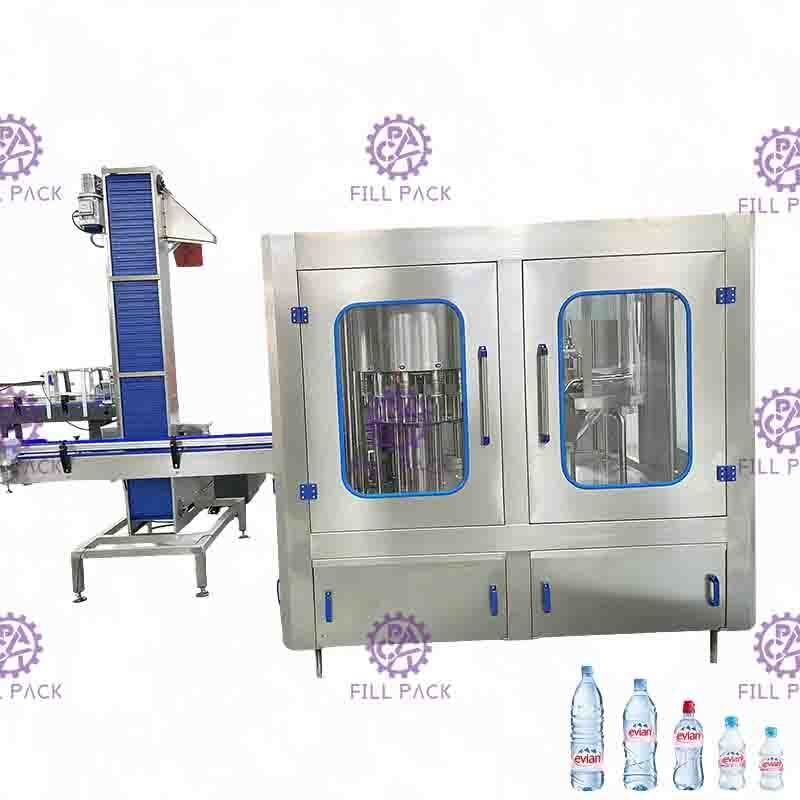

    Small Bottle Automatic Water Filling Machine Monoblock





    Quick Detail:



    Name: Small Bottle Automatic Water Filling Machine Monoblock

    Suitable Bottle: PET bottle

    Suitable cap: Screw cap

    Suitable volume: 0.3-2L

    Suitable liquid: non gas water
    Capacity: 3000-4000bph
    Working method: washing filling capping 3 in 1

    Advantage: USA - Germany technology





    Description:



    1. The Small Bottle Automatic Water Filling Machine Monoblock is always short called Monoblock, usually it is used for small bottles which range is from 0.25L to 2L.

    2. The Small Bottle Automatic Water Filling Machine Monoblock is composed by rotary washer, normal pressure filler, screw type capper and conveying system.

    3. The Small Bottle Automatic Water Filling Machine Monoblock is using bottle neck holding technology for transfering system, that means bottles are held with star wheel and side plate at neck ring when transfering from washer to capper. It is easy for different volume bottles change.

    4. The speed of Small Bottle Automatic Water Filling Machine Monoblock is higher than traditional linear type machine.

    5. It is used for filling all kinds of non gas water, such as still water, mineral water, flavored water, spring water, oxygen water, hydrogen water.

    6. The usual production capacity is in 1000-24000bph, 0.2-2L PET bottle is available.





    Specifications:



    Model CGF8-8-3 CGF12-12-4 CGF18-18-6 CGF24-24-8 CGF32-32-10
    Washing Head No 8 12 18 24 32
    Filling Head No 8 12 18 24 32
    Capping Head No 3 4 6 8 10

    Rated

    Capacity

    (500ml)

    3000BPH 4000BPH 7000-8000BPH 10000-15000BPH 15000-20000BPH
    Overall Size

    1900*1420*

    2000mm

    2200*1600*

    2300mm

    2450*1900*

    2300mm

    2750*1180*

    2400mm

    4000*2300*

    2300mm

    Weight 1.5T 2.2T 3.0T 4.0T 8.0T

    Power

    (KW)

    3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
    Rated Voltage Customized Customized Customized Customized

    Customized





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project
