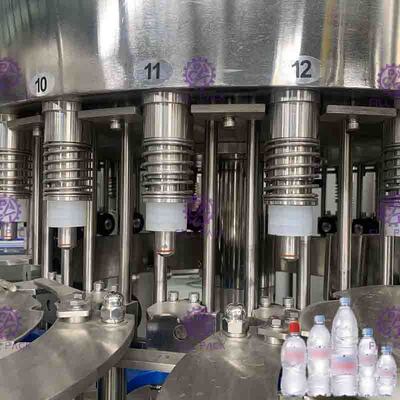

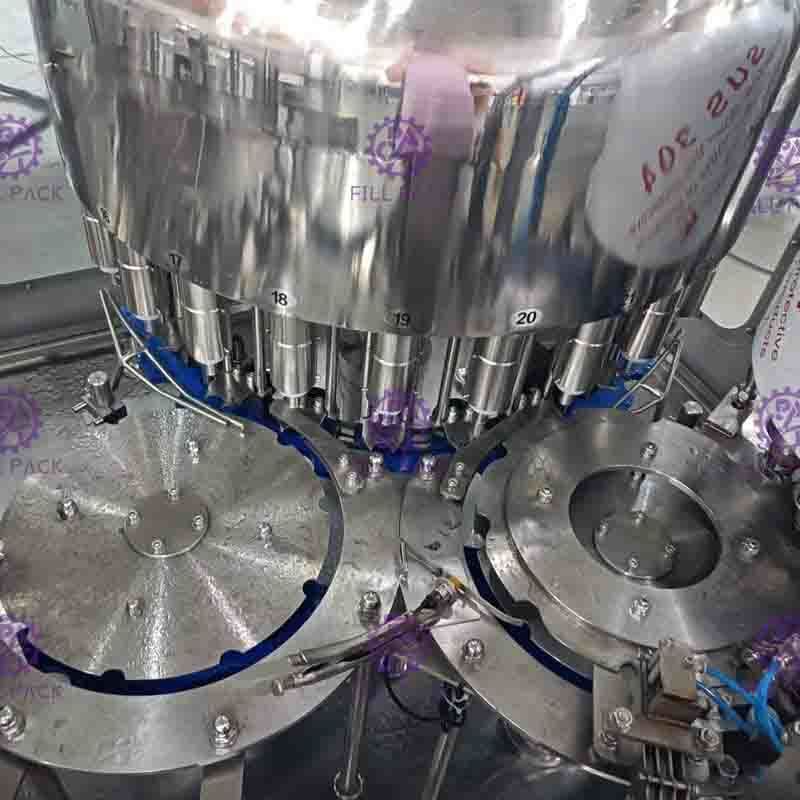

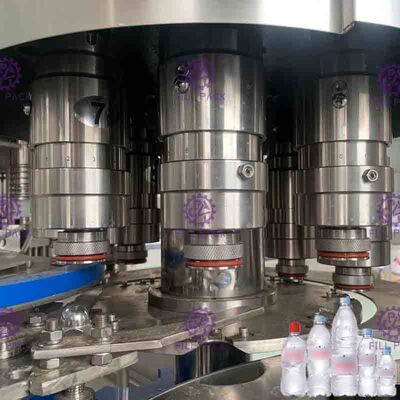

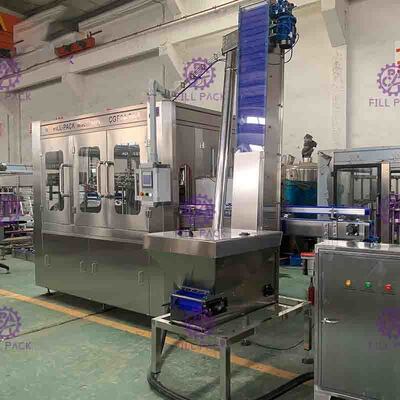

Full Auto Mineral Water Filling Machine 8000 Bottles Per Hour Speed

Full Auto Mineral Water Filling Machine 8000 Bottles Per Hour Speed

Full Auto Mineral Water Filling Machine 8000 Bottles Per Hour Speed

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FillPack
Certification: CE / ISO9001 - 2008
Model Number: CGF24-24-8
Condition: New
Application: PET bottle water
Automation: Automatic
Suitable Bottle Size: 0.3-2L PET Bottle
Fuction: linear washing filling capping line
Capacity: 8000-10000BPH
Warranty: 1 Year for Spare Parts
Service: Technician avaliable overseas

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 15000-25000USD
Packaging Details: Sea worthy Package
Delivery Time: 20 Working Days After Deposit
Payment Terms: TT & L/C
Supply Ability: 50 Sets Per Months
Contact Now
Detailed Product Description
High Light:

water production line

,

water bottle filling machine

Full Auto Mineral Water Filling Machine 8000 Bottles Per Hour Speed





Quick Detail:



Type: water filling machine

Filling valve: water filling normal pressure valve

Production rate: 8000 bottles per hour
PLC brand: Mitsubishi or client nomination





Description:



1. The Full Auto Mineral Water Filling Machine is used to fill pure water, mineral water and other non-carbonated beverage.

2. All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand..

3. The Full Auto Mineral Water Filling Machine is equipped with suspension type air conveyor and frequency control of motor speed.

4. This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

5, This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.





Specifications:



Model CGF8-8-3 CGF12-12-4 CGF18-18-6 CGF24-24-8 CGF32-32-10
Washing Head No 8 12 18 24 32
Filling Head No 8 12 18 24 32
Capping Head No 3 4 6 8 10

Rated

Capacity

(500ml)

3000BPH 4000BPH 5000-7000BPH 8000-12000BPH 12000-15000BPH
Overall Size

1900*1420*

2000mm

2200*1600*

2300mm

2450*1900*

2300mm

2750*1180*

2400mm

4000*2300*

2300mm

Weight 1.5T 2.2T 3.0T 4.0T 8.0T

Power

(KW)

3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
Rated Voltage Customized Customized Customized Customized Customized





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project





Market Distribution:



Market Revenue(Previous Year) Total Revenue (%)
Africa confidential 40%
Middle east confidential 15%
America confidential 5%
Euro confidential 4%
Middle Aisa confidential 3%
South-east Asia confidential 3%
Domestic confidential 30%



Full Auto Mineral Water Filling Machine 8000 Bottles Per Hour Speed
