24 Heads PET Bottle Drinking Water Filling Plant With PLC Control

24 Heads PET Bottle Drinking Water Filling Plant With PLC Control

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: XGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 Sets Per Months
Get Best Price Contact Now

Detail Information

High Light:

water production line


water filler machine

Product Description



24 Heads PET Bottle Drinking Water Filling Plant With PLC Control



Quick Detail:


Name: 24 Heads PET Bottle Drinking Water Filling Plant With PLC Control

Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 8000-12000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.2-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas

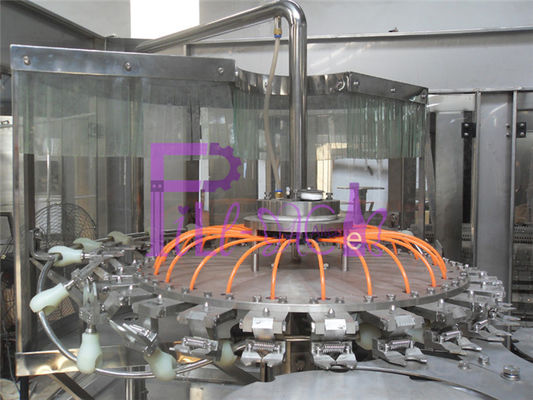

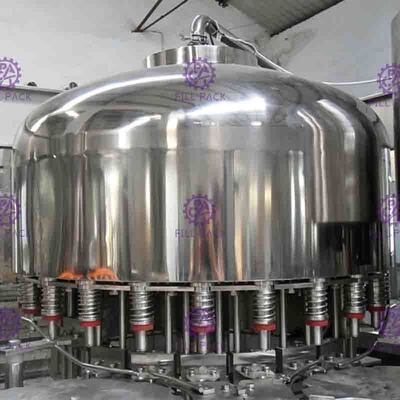

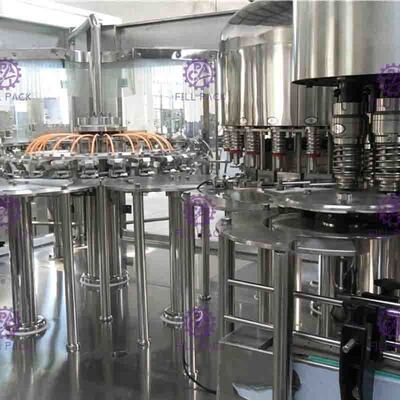

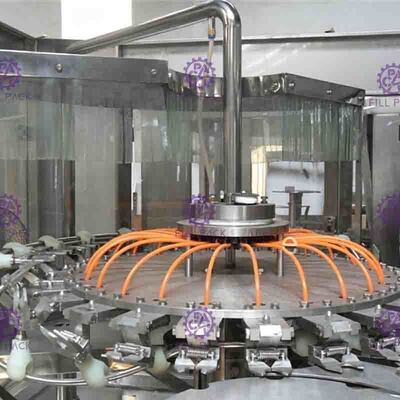

1. This machine is mainly applied for filling drinking water. It combines rinsing bottle, filling and capping into one machine. The full procedure is automatics. It is suitable for PET bottle and plastic bottle to fill drinking water, mineral water, pure water, if add temperature control device, even suitable for hot filling.

2. The adjustment for bottle type of each unit is fulfilled by turning handle; it is simple, easy and quick. The filling method applies new micro pressure filling so that the filling speed become more quick and stable.

3. Compared with similar machines, it has higher yield, more benefit. The machine applies advance Mitsubishi programmable controller (PLC) to control machine’s auto-running, the input bottle chain way changes its speed by frequency converter. Cooperate more stable and reliable.

4. As each unit’s running is detected by photoelectric elements. So it has high automation and simple operation. On this basis, changing filling unit can change to low vacuum filling method and isotonic filling method. Low vacuum filling method (Z type machine) is applied for glass bottle to fill alcoholic liquor; soy etc. and the capping method can be aluminum anti-theft cap and plastic cap. The isotonic filling method (D type machine) is applied for PET bottle; plastic bottle to fill CO2 contained drinks.

5. It is the ideal top choice equipment of drinking water production enterprise.





Model XGF12-12-4 XGF18-18-6 XGF24-24-8 XGF32-32-8 XGF40-40-10 XGF50-50-12
Capacity(500ml) 4000b/h 6000b/h 10000b/h 14000b/h 18000b/h 24000b/h
Bottle Shape Round or Square
PET Bottle(mm) (Bottle Diameter): φ50 - φ110mm (Height): 150-340mm
Cap: PE Screw Cap
Filling Precision: ≤±5mm
Filling Pressure:(Mpa) 0.15-0.35
Rinsing Pressure:(Mpa) 0.2-0.25
Total power(Kw) 3.58 4.68 6.58 9.68 9.68 10.8



Competitive Advantage:


1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
