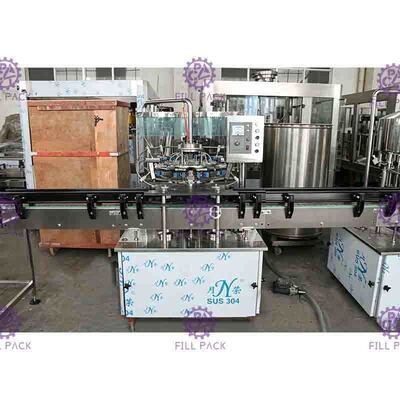

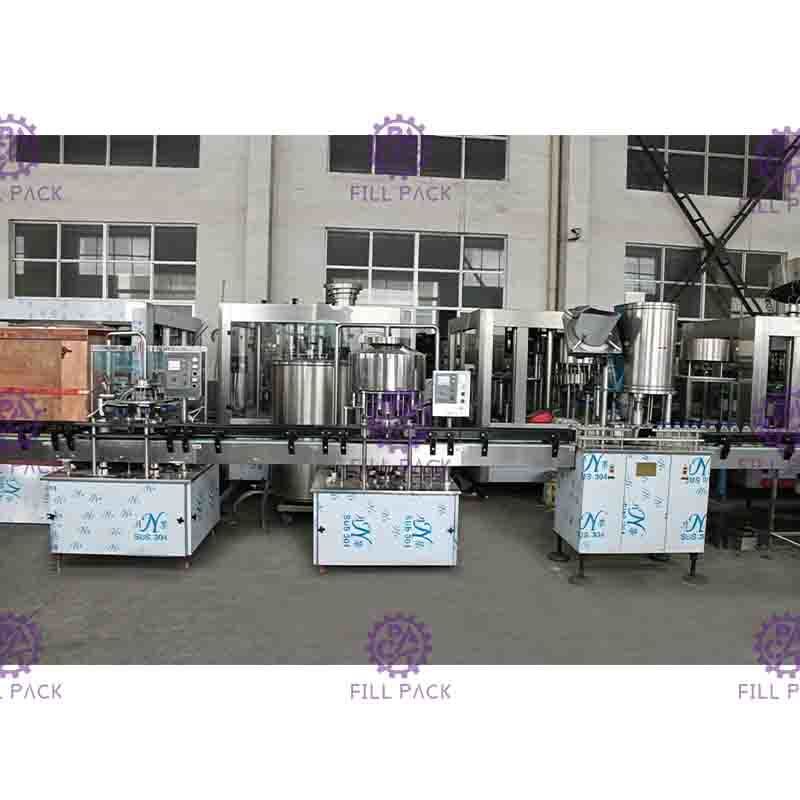

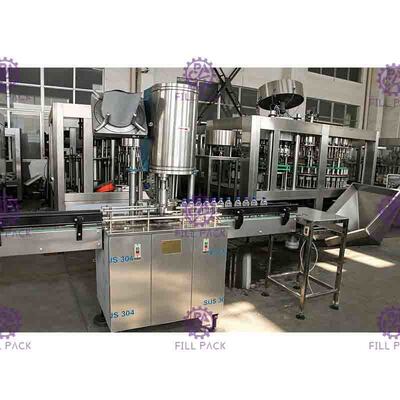

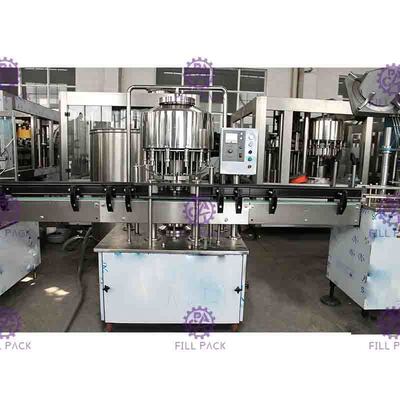

SUS304 / SUS316 Water Bottle Filling Machine , Small Scale Pure Liquid Filling Line

SUS304 / SUS316 Water Bottle Filling Machine , Small Scale Pure Liquid Filling Line

    • SUS304 / SUS316 Water Bottle Filling Machine , Small Scale Pure Liquid Filling Line
    • SUS304 / SUS316 Water Bottle Filling Machine , Small Scale Pure Liquid Filling Line
    • SUS304 / SUS316 Water Bottle Filling Machine , Small Scale Pure Liquid Filling Line
    • SUS304 / SUS316 Water Bottle Filling Machine , Small Scale Pure Liquid Filling Line
  • SUS304 / SUS316 Water Bottle Filling Machine , Small Scale Pure Liquid Filling Line

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO9001:2008
    Model Number: QS-12 / CG-12/ FXZ-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden Case Package
    Delivery Time: 20-30 Working Days After Receiving Your Deposit Payment
    Payment Terms: TT & L/C
    Supply Ability: 25 Sets Per year
    Contact Now
    Detailed Product Description
    Filling Type: Normal Pressure Filling Machine Capacity: 2000BPH For 500ml
    Material: SUS304/SUS316 Capping Type: Screw Caps
    Bottle Type: Plastic Containers Control Manner: Solinoid Valve Control

    SUS304 / SUS316 Water Bottle Filling Machine , Small Scale Pure Liquid Filling Line





    Quick Detail:



    Capacity: 2000BPH @500ml plastic bottle

    Machine structure: Linear type filling line

    Material: SUS304 / SUS316

    Processing type: fill standard drinking water into plastic containers

    Filling type: Normal pressure filling machine

    Capping type: screw cap capping machine

    Warranty time: one year

    Turn-key project and engineer available to be abroad for machine commissioning




    Flow chart:



                                                                                                                          ion re-birth device

                                                                                                                                         ¦

    Raw water source > original pump > quartz sand filter > active carbon filter > water softener > precision



    filter > RO unit > UV sterilizer > pure water tank > Filling machine > labeling machine > date printer

                                                                ^                          ^                                                     ¦

                                                  Ozone generator       PET blowing machine                    packing machine





    Description:



    - Linear drinking water filling plant;

    - Solinoid valve control;

    - Stainless steel material which touch the filling material;

    - Suitable for filling drinking water, sauce etc;

    - Different bottles can be applied in same machine by changing some parts;

    - Suitable for small scale project;

    - Well-known electric components;

    - Easy operation and maintenance





    Specifications:



    Model: QS-12 Power:0.75KW
    Voltage:400V/50HZ/3PHASE  Dimension:1330*1220*1700MM
    Weight:300KG Capacity:5000B/H



    Model: CG-12 Power:1.5KW
    Voltage:400V/50HZ/3PHASE  Dimension:1270*1170*2000MM
    Weight:360KG Capacity:5000B/H



    Model: FXZ-1 Power:1.5KW
    Voltage:400V/50HZ/3PHASE  Dimension:1040*920*2450MM
    Weight:450KG Capacity:5000B/H





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project





    Company Description



        Zhangjiagang city Yufeng beverage machinery Co.,Ltd. is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.



        At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.



        Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.





    Market Distribution:



    Market Revenue(Previous Year) Total Revenue (%)
    Africa confidential 40%
    Middle east confidential 15%
    America confidential 5%
    Euro confidential 4%
    Middle Aisa confidential 3%
    South-east Asia confidential 3%
    Domestic confidential 30%
