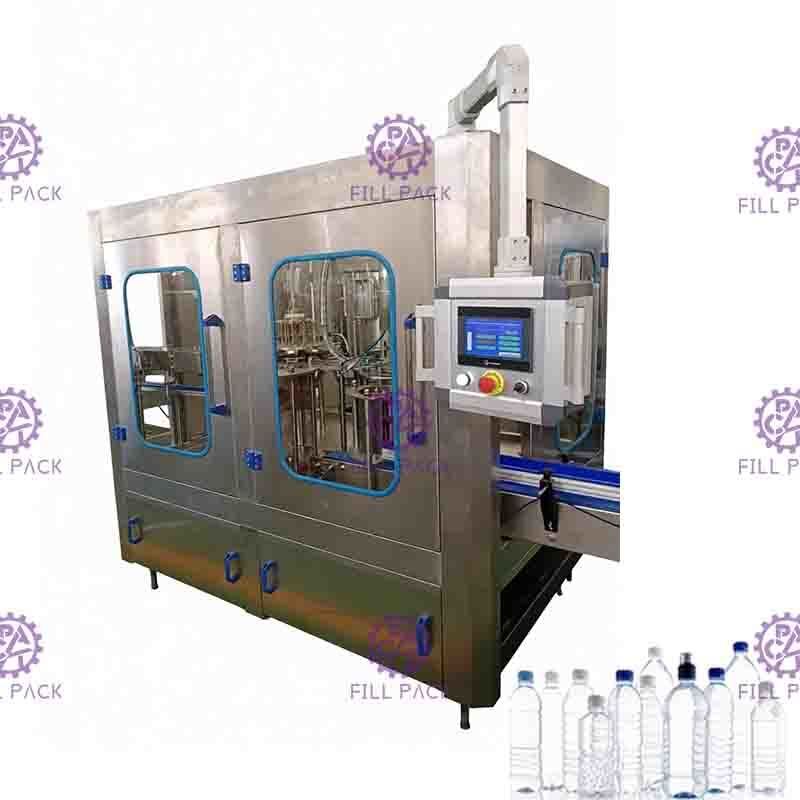

12 Heads Big Bottle Vacuum Filling Machine With Chain Feeding Conveyor

12 Heads Big Bottle Vacuum Filling Machine With Chain Feeding Conveyor

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: FillPack
Certification: CE,ISO
Model Number: CGF12-12-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD 19800/Set
Packaging Details: Wooden case pacakge or Blanket cloth package
Delivery Time: 25-30 days
Payment Terms: T/T, L/C,
Supply Ability: 20 Sets/Month
Get Best Price Contact Now

Detail Information

Type: Filling Machine Application: Beverage
Packaging Type: PET Bottle- 45 Size Screw Cap, 2-5L Packaging Material: Plastic
Automatic Grade: Automatic Filling Capacity: 1200BPH
Structure: 3 In 1 Monoblock Conveyor: With 2m Feeding Chain Conveyor And 4m Outlet Conveyor
Feature: With Belt Lubrication Function Power: 3.5kw
Driven Type: Electric
Highlight:

water production line

,

water bottle filling machine

Product Description



12 heads big bottle filler for water with chain feeding conveyor





Quick Detail:



Machine type Bottle water filling machine
Filling capacity 1200BP
Filling material Drinking water or mineral water
Suitable bottle PET bottle from 2-5L
Automatic type Full automatic with PLC touch screen
Structure 3 in 1 monoblock
Electrical control  With independent cabinet





Main Description:



The 5L filler is used for filling drinking water, pure water, mineral water in 5L plastic bottle with screw cap for market selling.





Main Technician Datas:



Model CGF12-12-5
Capacity 1200BPH (5L)
Washing head 12
Filling head 12
Capping head 5
Main material SUS304
Applicable bottle PET bottle-screw cap, 2-5L
Filling pressure Normal pressure
Washing material Clear water, pure water
Water washing pressure 0.25Mpa
Filter membrane shell FRP membrane shell
Pump power 3.5kw
Size 3100*2300*1970mm
Weight 3200kg






Features:



--Set with 2m inlet bottle conveyor and 4m outlet chain conveyor, the conveyor width is adjustable as your bottle size.

--With bottle feeding conveyor, washing part, filling part, capping part, cap sorting, cap loading function, cap washing system, with belt lubrication function, sperately electric control cabinet.

--Full automatic with PLC touch screen control system, speed is stepless adjustable.

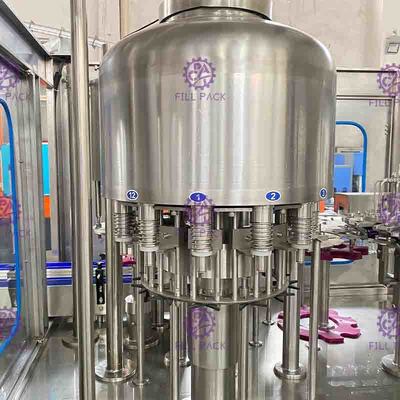

--Monoblock with bottle washing, filling, capping parts together, 12 rotary washing heads,12 rotary filling heads, 5 rotary capping heads, more convenient to use.

--Main adopts high quality of stainless steel 304 material, meet with the food grade.

--Adopts the normal filling pressure, with stable filling function and high filling precision.





--12 rotary washing heads

--With stainless steel washing clamps.

--With stainless steel transmission system





--With rotary 12 filling heads, 5 capping heads.

--Normal filling pressure, high precision filling head.

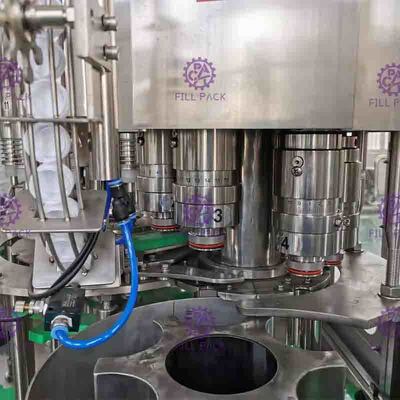

--Screwing capping head dual-purpose design; for flat cap and sport cap.

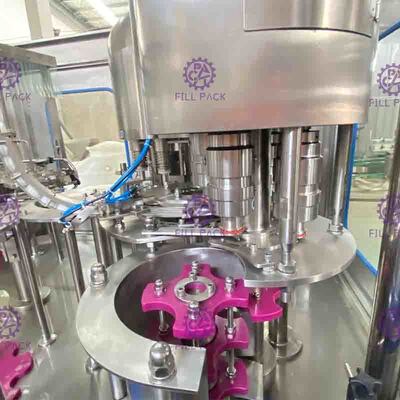

--Capping part can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide.

--Photoelectric switches are settled on cap-falling guide,stop when there is no cap on the guide.
