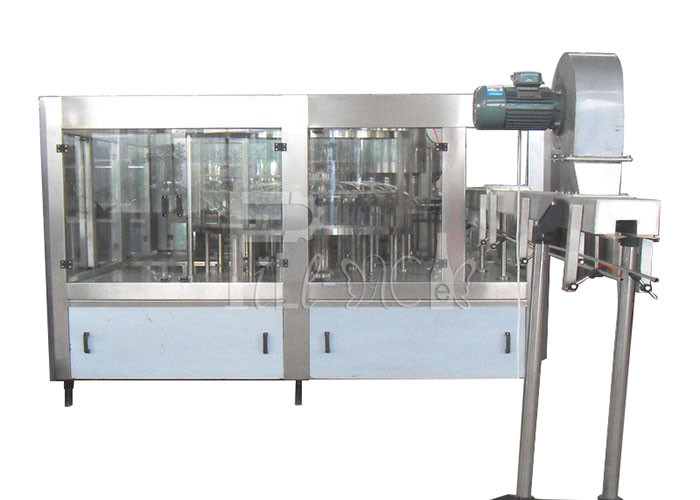

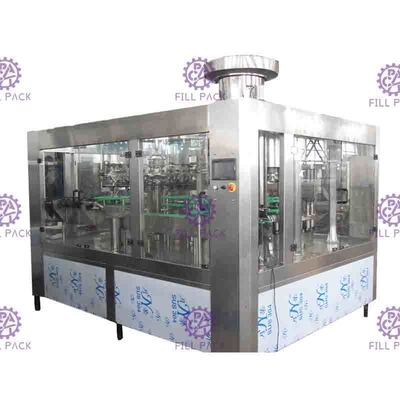

Carbonated Water Juice Wine PET Plastic Glass 3 In 1 Monobloc Bottle Production Machine / Equipment / Plant / System
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE & ISO & TUV & SGS |
| Model Number: | DCGF24-24-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 20000-50000USD |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Dimension(L*W*H): | 2980*2200*2250 Mm | Weight: | 4500KG |
|---|---|---|---|
| Power: | 6.2KW | Packaging Type: | PET Plastic Bottle |
| Application: | Beverage | Capacity: | 5000-7000bph |
| Cap Style: | Plastic Screw Cap | Voltage: | 380V/220V 50HZ |
| Highlight: | soda making machine,drink production line |
||
Product Description
Your thinking, our solution Customize carbonated filling machine for you

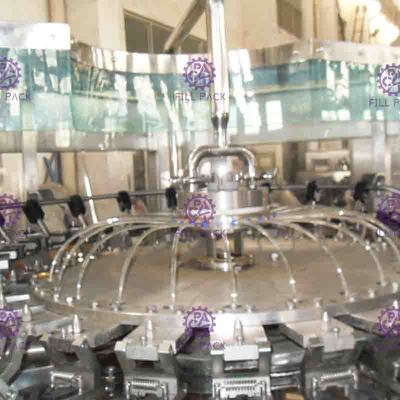

★By clamping the bottle mouth, the bottles are reversed 180 degrees, so that the bottle mouth is down, spraying and washing the inside and outside of the bottle. The rinsing water used is pure water. The rinsing water will be concentrated in the receiving plate and discharged by the designated outlet. The rinse here is simply to remove small particles of impurities that may exist in the air inside the glass bottle.
1. This Machine can be used in pure water, mineral water,fruit juice and fruit wine,etc. For washing filling capping controlled by PLC.
Description:
2.The gravity fixed liquid surface filling is fast.
3.The magnetic torque is used for screw capping.
4.The Machine by PLC automatic control, the production capacity can be displayed digitally and can be adjusted conveniently.
|
Teachnical parameters of DCGF24-24-8
|
||||||
|
Filling precision
|
≤+/-1mm(liquid level)
|
|||||
|
Filling pressure
|
≤0.4MPa
|
|||||
|
PET bottle specification
|
(Bottle diameter)50-115mm (Height)160-320mm
|
|||||
|
Suitable cap shape
|
Plastic or other material screw cap
|
|||||
|
Filling temperature
|
0℃—5℃
|
|||||
|
|
||||||
|
Our family of plastic bottle carbonated filling machine
There's always one suitable for you
|
||||||
|
Model
|
Rinsing filling capping heads
|
Capacity(BPH)
|
Power(kw)
|
Weight(Kg)
|
Dimension(mm)
|
|
|
DCGF12-12-4
|
12/12/4
|
2000-3000
|
4.4
|
2500
|
2250*1650*2250
|
|
|
DCGF18-18-6
|
18/18/6
|
3000-5000
|
5.2
|
3500
|
2600*1965*2250
|
|
|
DCGF24-24-8
|
24/24/8
|
5000-7000
|
6.2
|
4500
|
2980*2200*2250
|
|
|
DCGF32-32-10
|
32/32/10
|
7000-10000
|
6.2
|
6000
|
3880*2200*2250
|
|
|
DCGF40-40-12
|
40/40/12
|
10000-15000
|
7.5
|
7200
|
4000*2250*2500
|
|
|
DCGF50-50-15
|
50/50/15
|
16000-20000
|
11
|
10000
|
5500*2250*2500
|
|
|
DCGF60-60-15
|
60/60/15
|
20000-24000
|
15
|
11500
|
6500*5500*2550
|
|
|
|
||||||
|
If you need glass bottle carbonated filling machines, please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
|
||||||

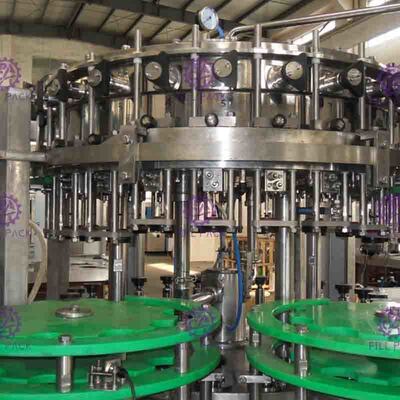

Filling heads.
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing
