2000LPH Three layers Beverage Processing Equipment With Agitator
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE,ISO |
| Model Number: | 2000LPH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | $2,590.00/set |
| Packaging Details: | The mixing tank is packed by wrapping film. |
| Delivery Time: | 15 days |
| Payment Terms: | 30% T/T deposit, 70% before shipment |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Type:: | Beverage Processing Equipment | Material:: | SUS304, SUS316 |
|---|---|---|---|
| Mixer Type:: | Agitator | Material Processed:: | Chemicals, Food, Medicine |
| Features:: | Three Layers | Working Processing:: | Mixing |
| High Light: | Beverage Processing Equipment With Agitator,2000LPH Beverage Processing Equipment,ISO Three Layers Juice Processing Machine |
||
Product Description

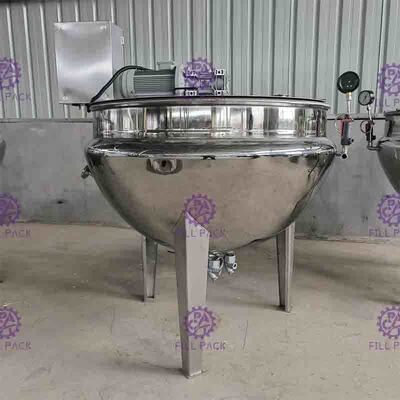

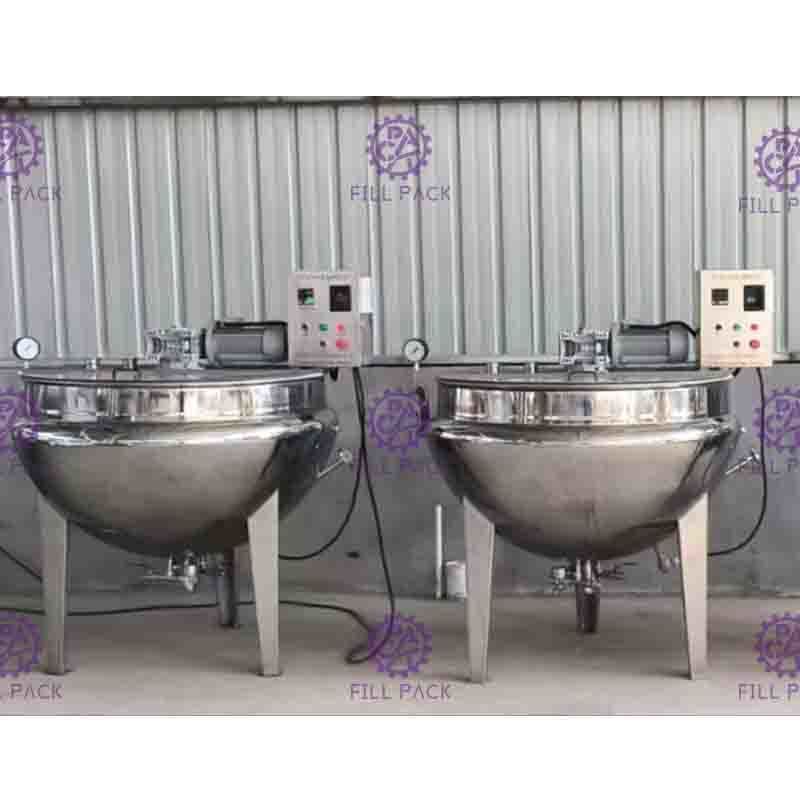

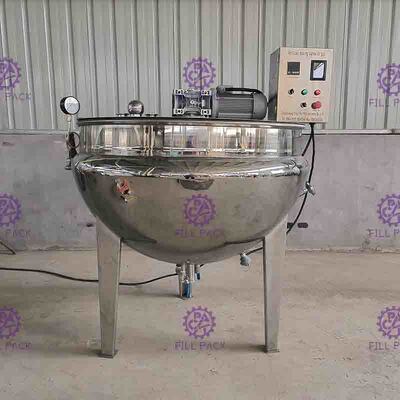

Gas burning Jacketed Kettle / Pan / Cooking Sauce Food Pot Cooking Equipment / with Agitator
General:
The system is composed of boiler and stand. The boiler is double layer ball, Natural gas,coal gas, and liquefied gas can be used as heat sources, and the gas is led to the gas stove through the inlet, and it is heated after being ignited.
Gas burning jacketed kettle is suitable for cooking food, boiling syrup, frying vegetables, condiments, medicinal materials and baking, etc. It is often used for heating, stirring and frying in the process of catering and food processing or chemical pharmacy.
Characteristics:
heating area is big, high heating efficiency; B: boiling time short, heating temperature average and easy to control; C: design temperature is 300-500℃,more suitable for high temperature frying.
Structure:Vertical type,Tiltable type; Sealing type: easy open top; Material: Inner boiler -SUS304,Outer boiler- SUS304; Heating medium:Natural gas, liquefied gas
|
Parameter
|
|
||||||
|
Capacity
|
50L
|
100L
|
200L
|
300L
|
400L
|
500L
|
600L
|
|
Heating method
|
Gas heating
|
||||||
|
Outer layer (mm)
|
3
|
||||||
|
inner layer (mm)
|
3
|
3
|
3
|
3
|
4
|
4
|
4
|
|
Material
|
SUS304
|
||||||
|
Max. pressure of jacket
|
0.29Mpa
|
||||||
|
Max. temperature
|
300-500℃
|
||||||
|
Pan depth(mm)
|
400
|
500
|
400
|
450
|
500
|
550
|
600
|
|
Pan diameter (mm)
|
500
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
Total height (mm)
|
1200
|
1250
|
1350
|
1450
|
1500
|
1550
|
1650
|
|
Motor power (KW)
|
0.37
|
0.55
|
0.75
|
1.5
|
1.5
|
1.5
|
2.2
|
|
Motor speed (rpm)
|
24
|
||||||
|
Gas consumption
|
3
|
4.5
|
5
|
6
|
6.5
|
7
|
7
|
