Steam Jacket Heating Juice Processing Equipment With Agitator
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE,ISO |
| Model Number: | 2000LPH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | $2,590.00/set |
| Packaging Details: | The mixing tank is packed by wrapping film. |
| Delivery Time: | 15 days |
| Payment Terms: | 30% T/T deposit, 70% before shipment |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Type:: | Beverage Processing Equipment | Material:: | SUS304, SUS316 |
|---|---|---|---|
| Mixer Type:: | Agitator | Material Processed:: | Chemicals, Food, Medicine |
| Features:: | Three Layers | Working Processing:: | Mixing |
| High Light: | Steam heating juice processing equipment,Steam heating juice production machine,SUS316 juice production machine |
||
Product Description

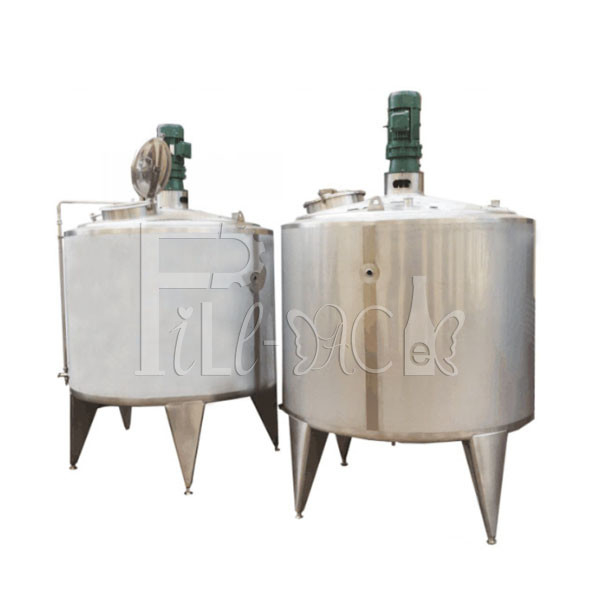

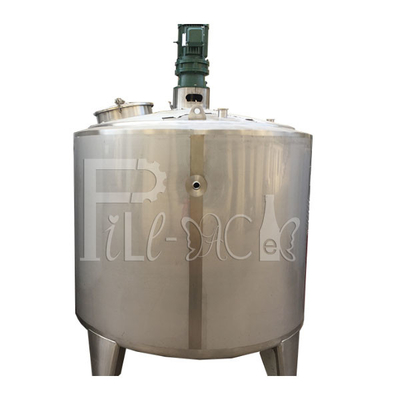

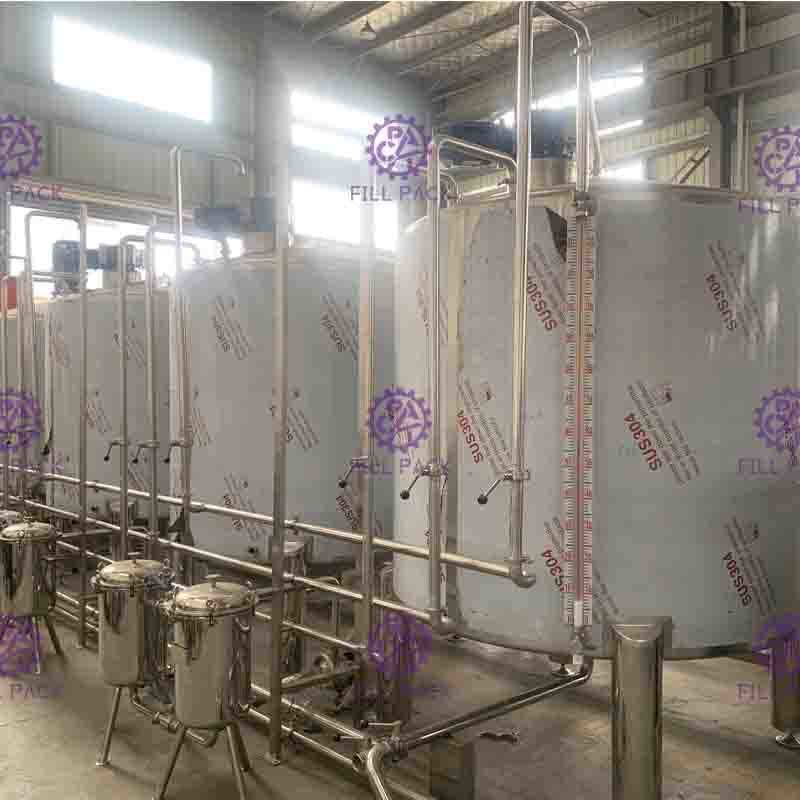

Factory Direct Sale Steam Jacket Heating Liquid Mixer Mixing Tank With Agitator
Steam heating jacket mixing tank application:

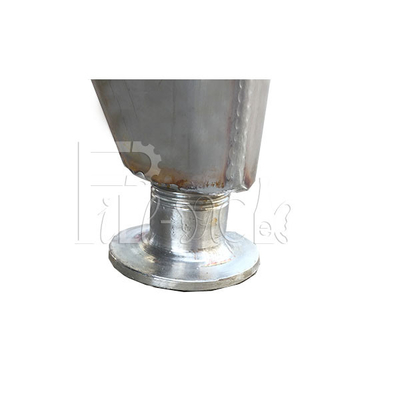

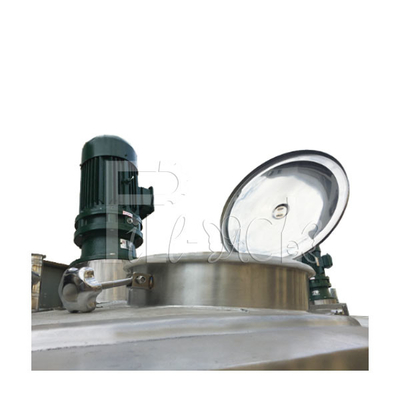

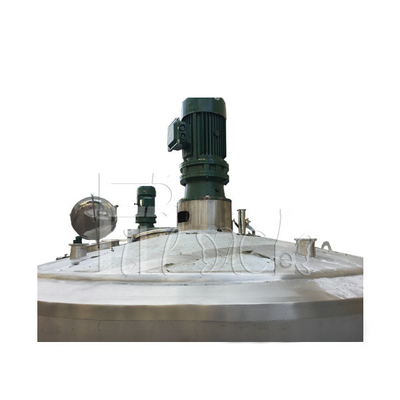

This steam heating jacket mixing tank is used to mixing material like juice, milk, drink, chemicals, cosmetics and so on. It is with electric mixer and the motor could be regulated. It adopts the high quality of SUS304 material and meet with the food grade. It is easy to operate and washing. Also it could be set with automatic CIP spraying head for more easy washing. the heating method, we use steam heating. Steam heating jacket mixing tank including: 1, quick open manhole at top 2, anti foaming liquid inlet, 3, CIP cleaning head, 4, dust proof respirator, 5, glass lever gauge 6, sampling valve 7, anti rotational flow outlet 8, low liquid lever sensor 9, height adjustable stand 10, Inclined oar agitator
Steam heating jacket mixing tank parameter:
|
Capacity
|
500LPH
|
1000LPH
|
2000LPH
|
3000LPH
|
4000LPH
|
5000LPH
|
6000LPH
|
|
Material
|
SUS304
|
||||||
|
Pressure
|
0.6Mpa
|
||||||
|
Structure
|
inner layer+middle layer+insulation+outer layer
|
||||||
|
Heating way
|
Steam heating
|
||||||
|
Motor power (kw)
|
0.75
|
0.75
|
1.1
|
1.5
|
2.2
|
3
|
6
|
|
Motor speed (rpm)
|
35
|
||||||
|
Inner thickness(mm)
|
3
|
||||||
|
Middle layer
thickness(mm) |
1.5
|
||||||
|
Insulation thickness(mm)
|
50
|
||||||
|
Outer thickness(mm)
|
1.5
|
||||||
|
Insulation material
|
Polyurethane foam
|
||||||
|
Manhole diameter(mm)
|
400
|
||||||
|
Diameter of inlet&outlet(mm)
|
38
|
38
|
38
|
38
|
38
|
51
|
51
|
|
Dimension of tank body(mm)
|
800*1000
|
1100*1220
|
1450*1200
|
1600*1500
|
1600*2000
|
1660*2300
|
1800*2400
|
|
Total Height(mm)
|
2100
|
2420
|
2420
|
2700
|
2900
|
3200
|
3300
|
|
Weight(KG)
|
310
|
400
|
600
|
700
|
800
|
900
|
950
|
