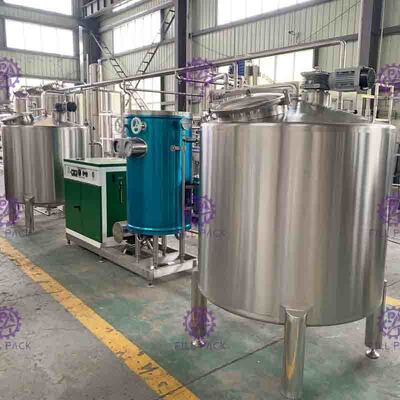

Flavored Beverage Juice Mixing Processing Line 7000L/H With UHT Plate Sterilizer

Product Description

5000L/H-7000L/H Complete Blended Beverage Flavored Juice mixing processing Line Plant System with UHT plate sterilizer

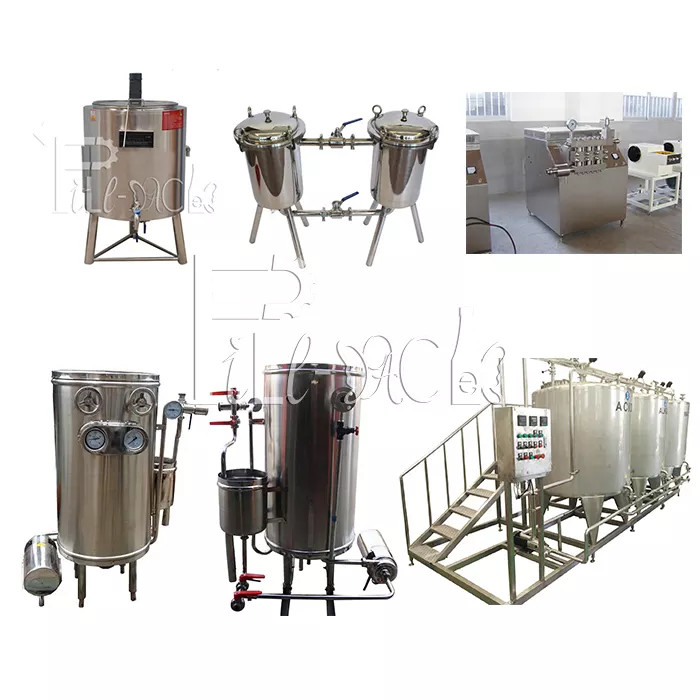

Related Machines in the juice mixing processing line:

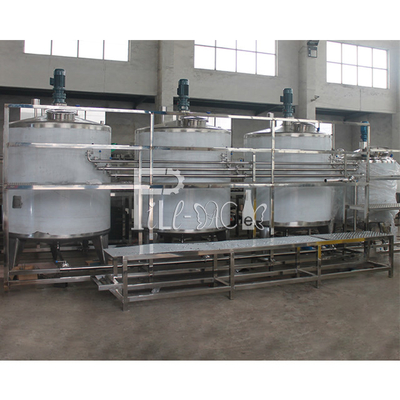

1. Blending System----Sugar Melting Boiler/Tank

There are two types of blending tank, single layer and three layers. Single layer type blending tank is with blending motor, but without heating function; three layers type is heated by steam, and it can also be cooled down by chilled water. The blending tank is made of stainless steel 304, with internal and external polished. It is easy cleansing and corrosion resistance.

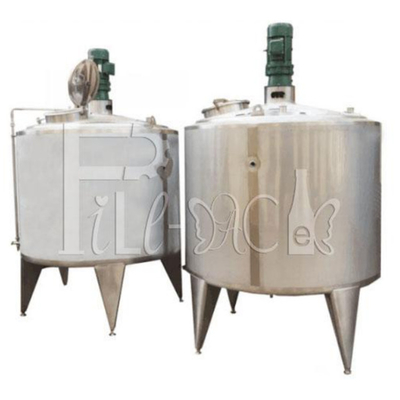

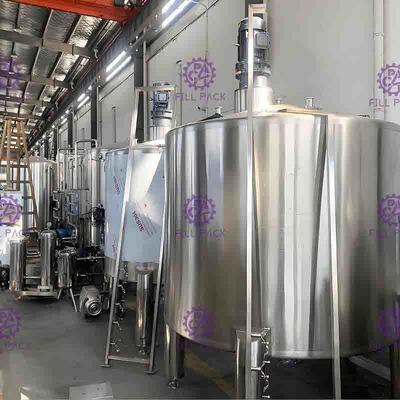

2. Mixing Tank/Agitator tank

To choose the right machine will greatly advance your production efficiency and production quality. The stainless steel mixing tank can engineer heating, cooling or vacuum or other process, we have rich practical data for different product, with the data can help customer to choose the right machine.

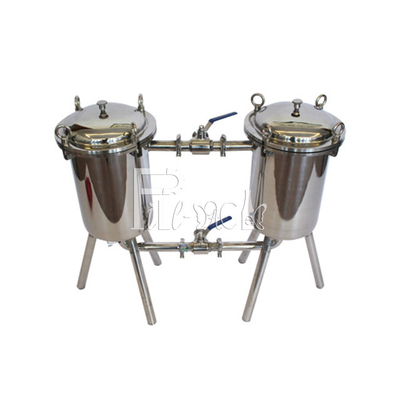

3. Duplex filters

Duplex filters are all made of high-quality stainless steel SUS304, is composed of two cylinders. Inside and outside polishing 0.4μm, equipped with a pressure gauge at the top row of table valve, is suitable for the removal of liquid milk, sugar, beverage, oral liquid, such as invisible solid impurities in the liquid purification.Two filters are used interchangeably, in the case of non-stop filter replacement, suitable for long-term continuous production.

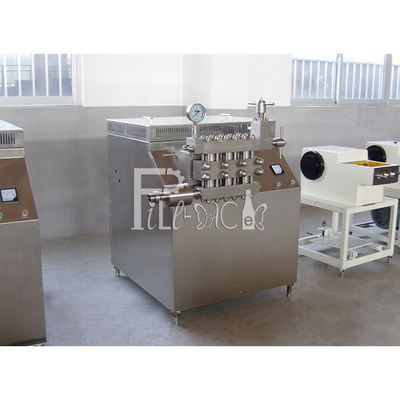

4, Homogenizer

The Homogenizerr equipment with extensive uses, which can homogenize and fine material liquids or make the material liquids to form high-pressured spray. It is widely used in the production of milk, cold drink, beverage, edible chemicals, and areas such as pharmacy, biologic technology and etc. When the material liquid is homogenized under high pressure, the liquid delamination can be prevented or reduced while the fineness, cleanliness, looseness and inner quality can be improved.

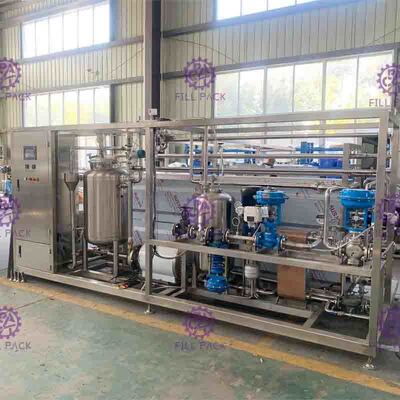

5.UHT plate sterilizer

1. This is an once integrated sterilizing equipment which is used to heat,sterilize,warm and cool heat-sensitive liquid such as fresh milk,juice beverage and wine. It can make the materials to prolong the quality guarantee time through sterilization and cooling.

2. Adopt the treating methods of the ultra high temperature:

It can make the liquid milk, tea drink and juice to reach a strict sterilization, then transfer it to aseptic package. The sterilizing temperature is 80-137℃ and the warming time is 5-30s.The machine could keep the original color and flavor of the beverage and dairy product as much as possible. The guarantee time can reach 6 to 12 months.

3. The equipment has the features of high recovery rate, compact structure, beautiful appearance and easy safe temperature control. The liquid through the sterilization of the machine can be used to hot filling and cold filling. The temperature of the outlet materials can be controlled automatically. The equipment has two modes of PLC control type and semi-automatic type. It also has safety protection measurement, alarm for high temperature and function of low temperature reflow. It can make various assembly designs.

4. Main configuration of equipment: material pump, balancing tank, hot water system, temperature controller and recording meter, electrical control system.

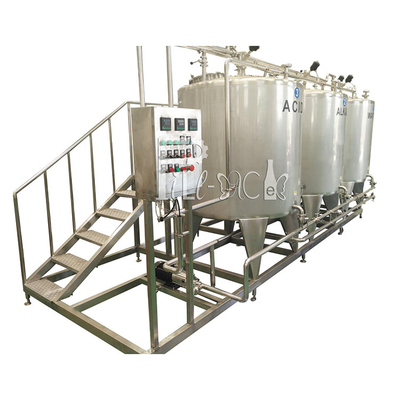

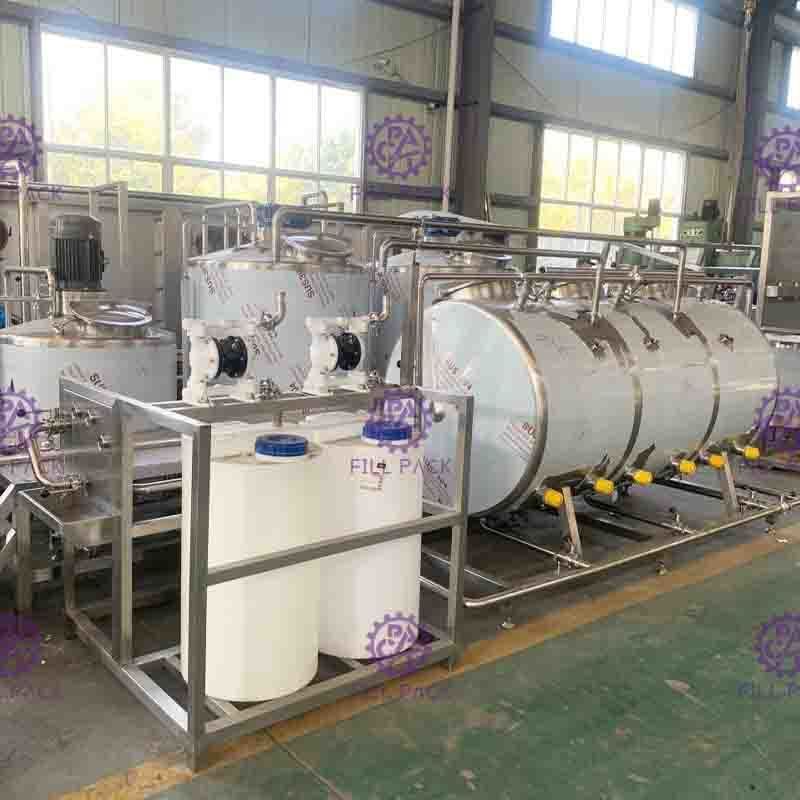

6.Semi-auto CIP

Separate alkali, acid tank, hot water tank;

Heating pipes used for cleaning liquid heating by steam connection or hot water boiling recycling;

Centrifugal pump to discharge cleaning liquid to the machines which need to be washed;

Feedback pump can be added for cleaning liquid recycling;
