3T/H UHT Plate Type Sterilizer Machine easy operation

3T/H UHT Plate Type Sterilizer Machine easy operation

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FillPack
Certification: CE / ISO9001
Model Number: 3T/H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 21,200USD/unit
Packaging Details: sea worthy packing
Delivery Time: 25 Working Days After Deposit
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 10 Sets Per Months
Get Best Price Contact Now

Detail Information

Capacity:: 3000BPH Sterilization Temperature:: 130℃
Core Components:: PLC Heat Exchange Area:: 28m²
Sterilization Material: Milk, Juice Etc Liquid Key Selling Points: Easy To Operate
Cooling Water Consumption:: 2T/h
High Light:

3T/H Sterilizer Machine

,

Plate Type Sterilizer Machine

,

3T/H portable sterilizer machine

Product Description

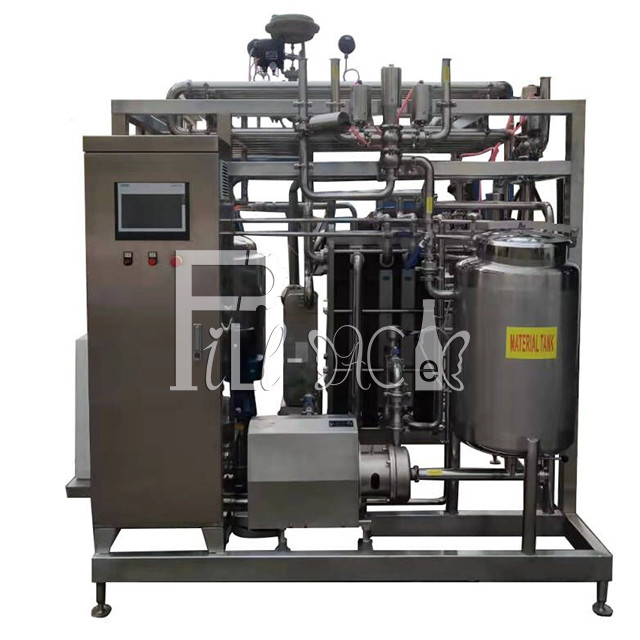

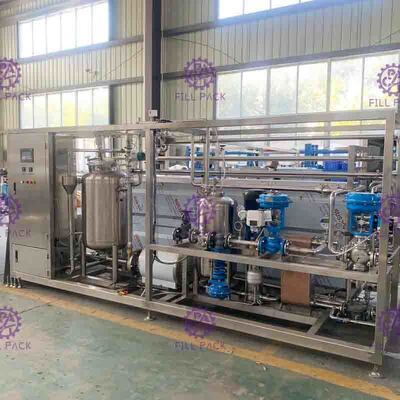

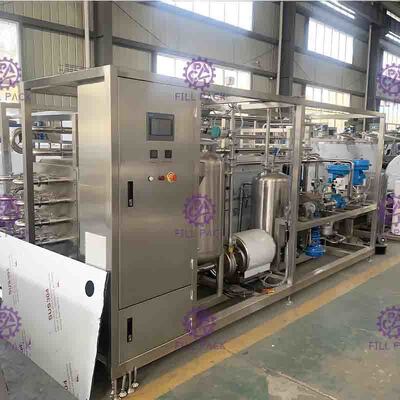

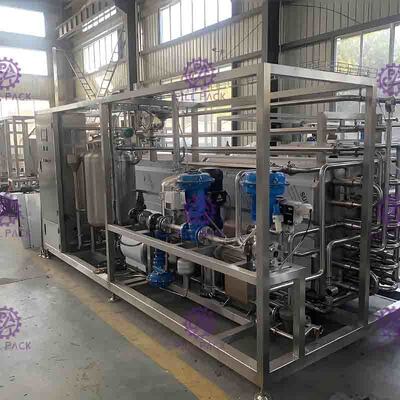

3T/H UHT Plate Type Sterilizer Machine Sterilization for Milk / Juice Fruit



Description

1.This is an once integrated sterilizing equipment which is used to heat,sterilize,warm and cool heat-sensitive liquid such as fresh milk,juice beverage and wine. It can make the materials to prolong the quality guarantee time through sterilization and cooling. 2. Adopt the treating methods of the ultra high temperature: It can make the liquid milk, tea drink and juice to reach a strict sterilization, then transfer it to aseptic package. The sterilizing temperature is 80-137℃ and the warming time is 5-30s.The machine could keep the original color and flavor of the beverage and dairy product as much as possible. The guarantee time can reach 6 to 12 months. 3.The equipment has the features of high recovery rate, compact structure, beautiful appearance and easy safe temperature control. The liquid through the sterilization of the machine can be used to hot filling and cold filling. The temperature of the outlet materials can be controlled automatically. The equipment has two modes of PLC control type and semi-automatic type. It also has safety protection measurement, alarm for high temperature and function of low temperature reflow. It can make various assembly designs. 4. Main configuration of equipment: material pump, balancing tank, hot water system, temperature controller and recording meter, electrical control system.



Main technical parameter

Capacity:
3T/H
4T/H
5T/H
Sterilizer unit

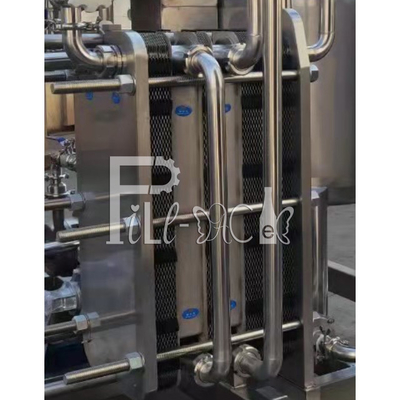

Heat exchange area:
28m²
36m²
48M²
Pressure:
0.5 Mpa
0.5 Mpa
0.5 Mpa
Material unit
Material inlet temperature:
60℃
Sterilization temperature:
130℃
Sterilization time:
3-30S adjustable
Material outlet temperature:
85℃
compressed air unit
compressed air pressure
0.5MPa
0.5MPa
0.5MPa
Compressed air consumption
0.4m3/min
0.4m3/min
0.4m³/min
Steam unit
Steam inlet pressure
≥0.5MPa
Steam working pressure:
0.4MPa
Steam consumption:
300Kg/h
400Kg/h
480 Kg/h
Pump unit
centrifugal pump
1.5KW
3KW
4KW
hot water pump
1.1KW
1.1KW
1.1KW
Manifold unit
Pneumatic rotary butterfly valve
Φ32 8pcs
Φ38 8pcs
Φ38 8pcs
2/3 way reversing valve
Φ32 1pc
Φ38 1pc
Φ38 1pc
Two-position four-way reversing valve
Φ32 2pcs
Φ38 2pcs
Φ38 2pcs
Material pipeline
Material tank
100L
Shut-off valve
Φ32 1pc
Φ38 1pc
Φ38 1pc
one-way valve
Φ32 2pcs
Φ38 2pcs
Φ38 2pcs
Flow control valve
Φ32 1pc
Φ38 1pc
Φ38 1pc
Flow-meter sight glass
Φ32 1pc
Φ38 1pc
Φ38 1pc
Material pipe diameter
Φ32 1suit
Φ38 1suit
Φ38 1suit
High and low level float
1suit
Hot water pipe
Hot water tank
100L
(double-layer insulation, high and low liquid level floats automatically control water replenishment)
Flow control valve
Φ32 1pc
Φ38 1pc
Φ38 1pc
Sheathed bi-metal thermometer
0-150℃ 1pc
0-150℃ 1pc
0-150℃ 1pc
High and low level float
1suit
1suit
1suit
Steam pipes

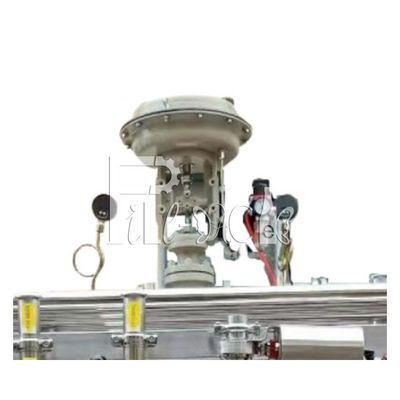

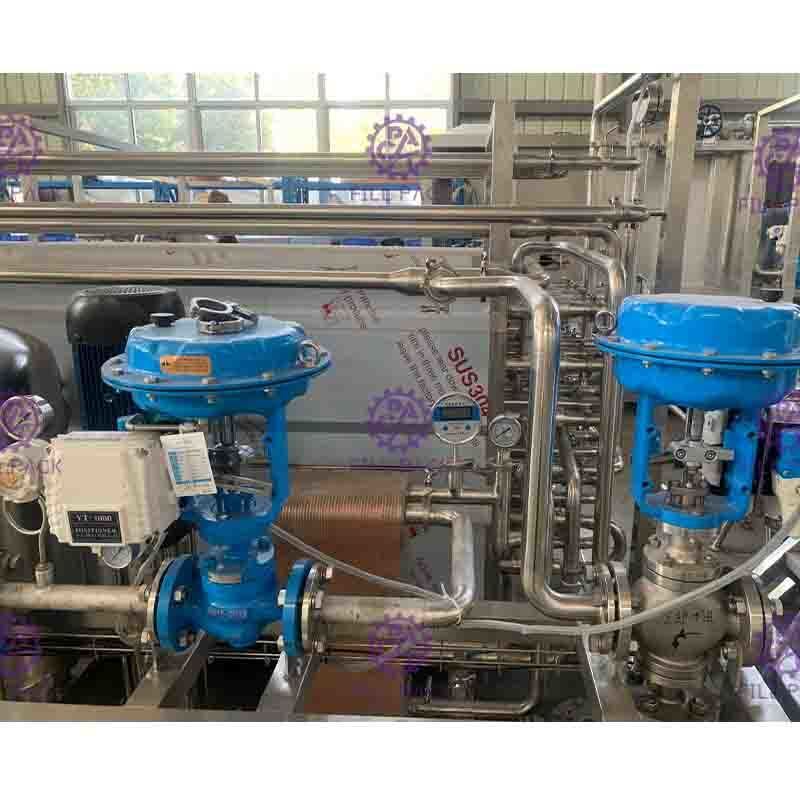

Steam automatic control valve
DN40 1pc Korea
DN50 1pc Korea
DN50 1pc Korea
Diaphragm steam shut-off valve
DN40 1pc
DN50 1pc
DN50 1pc
steam filter valve
DN40 1pc
DN50 1pc
DN50 1pc
steam pressure reducing valve
DN40 1pc
DN50 1pc
DN50 1pc
Steam pipe diameter
DN40
DN50
DN50
Cooling water pipeline
Cooling water working pressure:
0.3MPa
0.3MPa
0.3MPa
Cooling water inlet temperature:
≤30℃
≤30℃
≤30℃
Cooling water consumption:
2T/h
2T/h
3T/h
Cooling water pipe diameter:
Φ38 1suit
Φ38 1suit
Φ38 1suit
