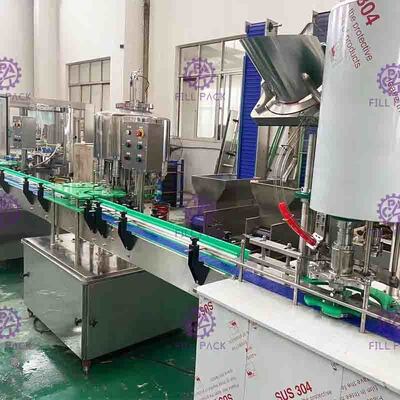

PET Bottle Soft Drink Processing Line Carbonated Beverage Linear Filling Machine
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE,ISO |
| Model Number: | DG-12 |
| Application: | Carbonated drink mixing, filling sealing |
|---|---|
| Material: | SUS304 |
| Driven type: | Electric |
| Certification: | CE, ISO |
| Guarantee time: | 1 year |
| Condition: | New |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Blanket cloth or wooden case as machine need |
| Delivery Time: | 10-15 days |
| Payment Terms: | 30% T/T deposit, 70% before shipment |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Highlight: | soda making machine,drink production line |
||
|---|---|---|---|
Product Description
PET Bottle Soft Drink Processing Line Carbonated Beverage Linear Filling Machine
Quick Detail:
1. Capacity: 2000BPH
2. PET bottle - screw cap, 200-2000ml
3. Material: SUS304
4. Speed adjustable
5. Rotary 12 heads washing, 12 heads filling, 1 head capping, with linear conveyor connection
Description:
This soft drink processing line is mainly used to process the carbonated drink, soft drink, soda water, beer for latter filling in bottles, here the treatment capacity is 1000L/H.
All the main material is SUS304 material, which meets with the food grade.
It's set after water purification, before bottle filling machine, main contains the follow machines:
1) Solid sugar melting tank:
To melt the sugar for liquid syrup for latter use, 200kg/time
2) Syrup filter: (you can choose or not as your sugar liquid purifity)
To filter the liquid syrup to be more fine for latter beverage mixing use, 320kg/time
3) Mixing tank:
To use to mixing syrup, liquid, and other material for use, 1000L volume
4) Double filter:
To filter the liquid mixing material to be fine for latter use, 1T/H
5) Water / drink cooling tank:
To use to cool the mixing liquid to be with more lower temperature for better CO2 mixing in the beverage in next CO2 mixing machine.
6) CO2 mixing machine:
To use to mix the CO2 into liquid beverage for final carbonated drink for filling, capacity 1000L/H.
7) Bottle washing machine, bottle filling machine, bottle capping machine, conveyor and motor
For more specific details, please feel free to let me know.
