CIP Cleaning System Soft Drink Processing Line Semi Auto With 500L Tank
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE,ISO |
| Model Number: | CIP-500L |
| Application: | For cleaning the pipe and system in place in juice or carbonated drink |
|---|---|
| Packaging Type: | SUS304 |
| Driven type: | Electric |
| Certification: | CE, ISO |
| Guarantee time: | 1 year |
| Condition: | New |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Blanket cloth or wooden case as machine need |
| Delivery Time: | 10-15 days |
| Payment Terms: | 30% T/T deposit, 70% before shipment |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Highlight: | soft drink making machine,soda making machine |
||
|---|---|---|---|
Product Description

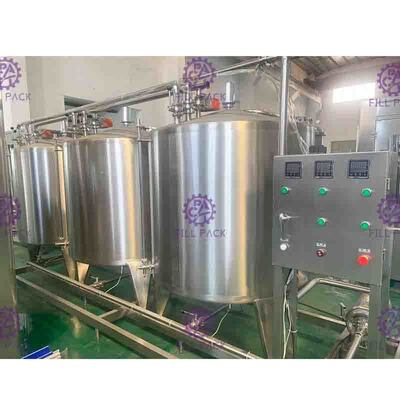

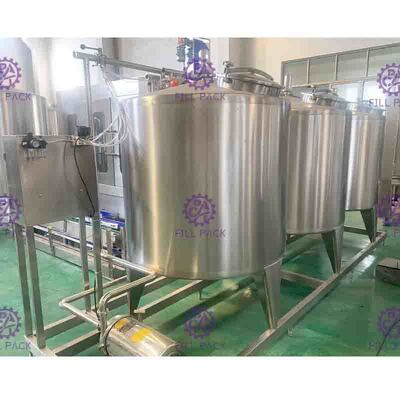

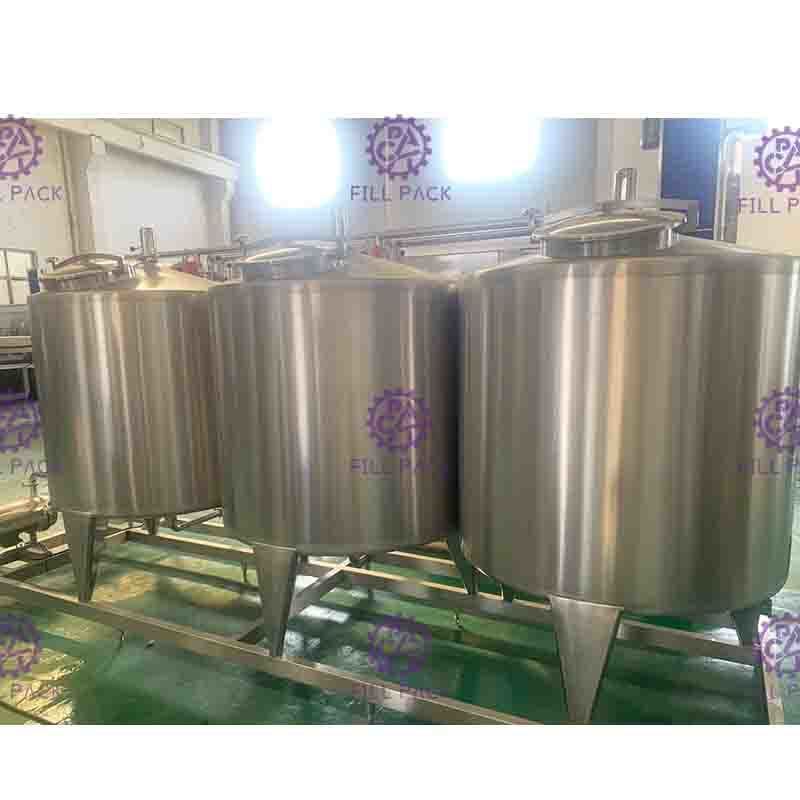

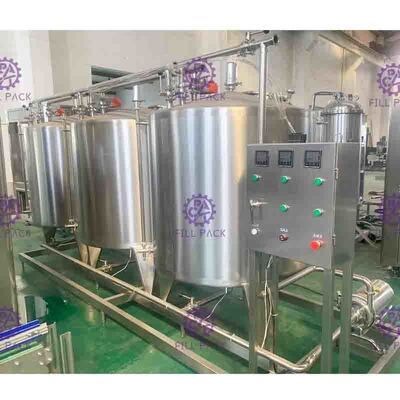

CIP Cleaning System Soft Drink Processing Line Semi Auto With 500L Tank
Quick Detail:
1. Capacity: 500L
2. With acid tank, alkline tank, water tank separately for cleaning
3. Tank material: SUS304, liquid feeding pump: SUS316
4. With a frame support to load the three tanks
5. For carbonated drink, juice, milk processing line
6. Set with heating coil pipe for heating function of liquid
7. Automatic type: Semi-auto
Description:
This Semi-auto CIP Cleaning System is in place cleaning system for system and pipes and valves in carbonated drink, milk, juice processing line.
As the needed cleaning system, we set with this semi-auto CIP cleaning system with 500L. It main contains the 500L acid tank, 500L alkline tank, 500L water tank with heating function, one feed pump and frame support, valves and pipes connect the tanks and machines.
Normally, we have SUS304 and SUS316 material in tank for your choice as your need. The feed pump and return pump are all SUS316 material.
And we have easy open top cover and closed tank top for choice.
It's double layer with insulation layer to keep the liquid temperature in tank for better cleaing, with sealed head, and manhole for easy washing, inlet and outlet hole set on top and bottom of tank, with three way valves for convenient connection of pipes.
For more specific details, please feel free to let me know.
