Semi Automatic Oil Liquid Water Filler Horizontal Magnetic Pump Alcoholic Beverage Bottling

Product Description

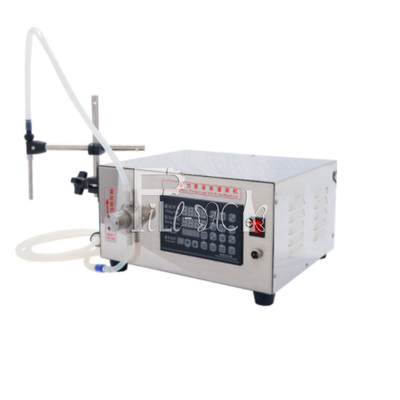

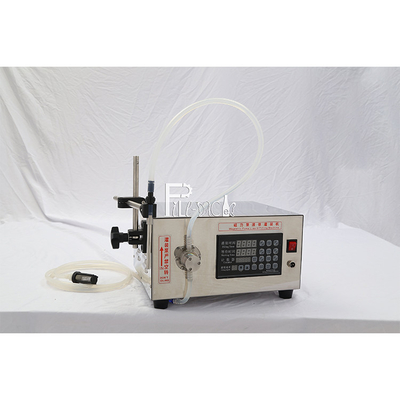

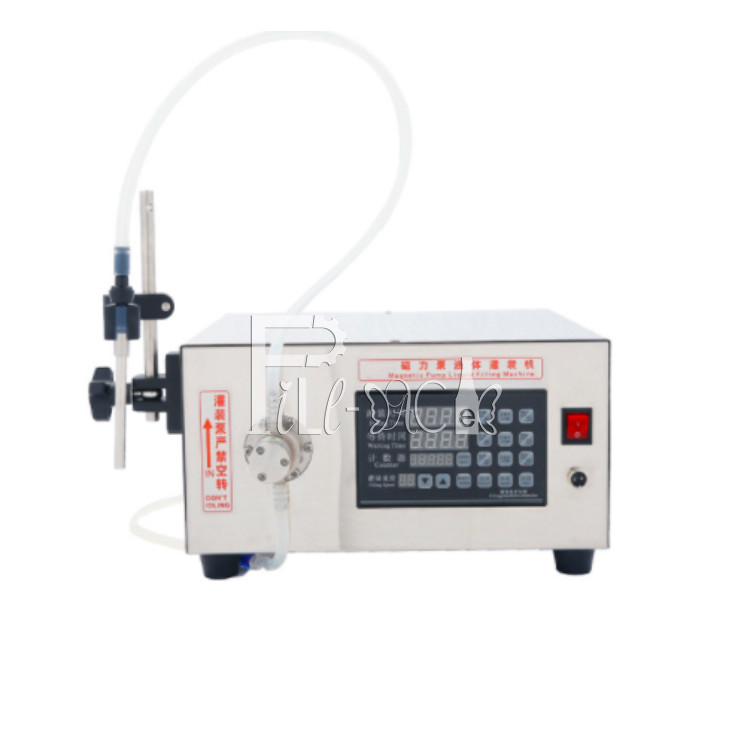

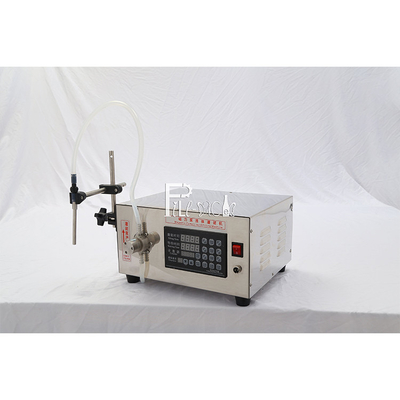

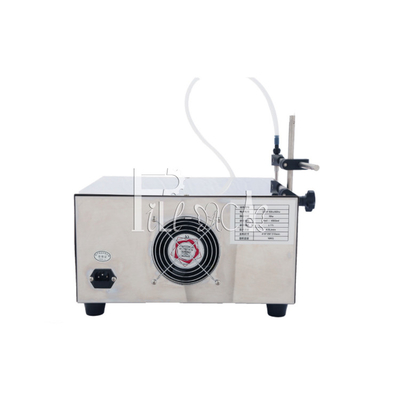

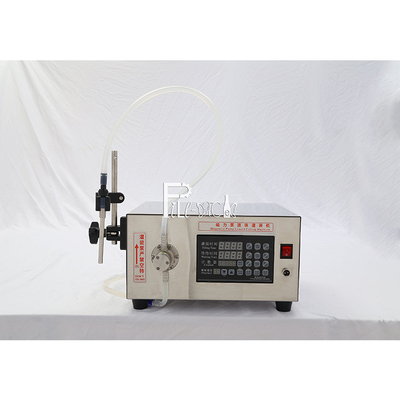

Semi Automatic Horizontal Magnetic Pump Alcoholic Beverage Bottling Oil Liquid Water Filling Machine

Instructions:

Magnetic pump type filling machine is suitable for liquid filling.

Bracket installation refer to the above picture installation;

Function introduction:

A, [filling time]: adjust the time of the pump work; control the amount of filling;

B, [waiting time]: the interval between the first and second automatic filling state; used in the automatic filling state;

C, [Counter]: Memorize the amount of production within a certain period of time;

D, [Filling speed]: Adjustment of dosing time;

E, [Filling setting]: Automatically set the filling amount button; when the machine is switched on, start the filling setting; when the amount of machine filling reaches the amount you need; Repress filling setting, the machine automatically memorizes the filling time; so the amount of filling is set;

F, [Manual]: manual state switching and use of electric filling key switch;

G, [Auto]: Automatic state switching and use of automatic filling key switch

Easy to use instructions: start the machine; put the container you need under the discharge port; start the filling setting and start the filling; when the material is filled to the position or weight you need; turn off the filling setting;This machine will automatically memorize your filling volume; then choose [automatic] or [manual] to start work;

Performance and Features:

1. LCD liquid crystal display, panel operation more convenient and simple

2. Outlet nozzle anti-drip design, filling high precision, accurate measurement.

3. Automatic counting function, effective control of the number of filling.

Parameters:
