Top Covered Hygeian Water Filling Machine 32 - 32 - 10 15000BPH
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE & ISO |
| Model Number: | CGF32-32-10 |
| Control: | PLC Control With Touch Screen |
|---|---|
| Processing: | Japan & Germany |
| Capacity: | 12000-15000BPH |
| Electrical Brand: | Mitsubishi, OMRON, SIEMENS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 12000-40000USD |
| Packaging Details: | Wooden Case Package for water bottle filling machine |
| Delivery Time: | 30 Working Days for water bottle filling machine |
| Payment Terms: | T/T, L/C, , MoneyGram |
| Supply Ability: | 20 Sets Per Year |
|
Detail Information |
|||
| Processing Type: | Water Bottle Filling Machine | Material: | Touch Parts SUS304/SUS316 |
|---|---|---|---|
| Machine Structure: | Monoblock Machine | Filling Type: | Normal Pressure Filling |
| Cap Style: | Plastic Screw Cap | Electrical Brand: | Mitsubishi, OMRON, SIEMENS |
| Highlight: | Hygeian Water Filling Machine,Top Covered Water Filling Machine,Hygeian Filling Machine |
||
Product Description

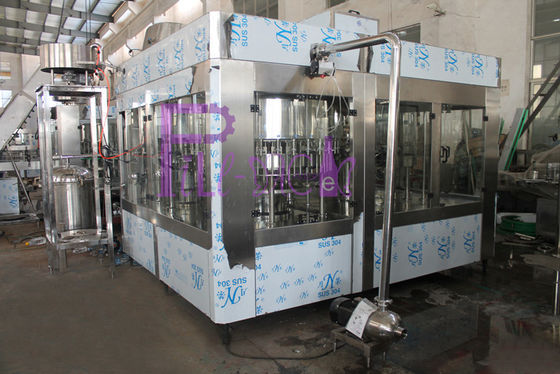

Top covered hygeian water bottle filling machine 32 - 32 - 10 15000BPH
Quick Detail:
|
Machine structure |
Washing, filling, capping 3 in 1 unit |
|
Filling type |
Normal pressure filling machine |
|
Bottle type |
15000BPH plasic bottles |
|
Cap type |
Bio caps: plastic screw cap & sport cap |
Description:
The water bottle filling machine is one of the most pupular filling machine for filling water into plastic bottles with screw caps.
The water bottle filling machine is suitable for filling water, fresh juice etc.
Characteristics:
|
Machine structure |
1, Washing, filling, capping in one unit 2, More compact 3, Ring type water cylinder 4, Rotary type filling machine - No residual 5, Top covered by stainless steel 304 6, UV lamb inide for killing bacteria 7, Low labor |
|
Filling type& speed |
1, More precise 2, High capacity 3, Normal pressure filling machine |
|
Material |
1, Stainless steel 304 2, Contact parts: Stainless steel 316 3, Pipe & valve connection: food grade seamless pipe |
|
Controlling system |
1, PLC cntrol 2, Touch screen 3, Solenoid valve 4, Low labor |
Specifications:
|
Model |
CGF8-8-3 |
CGF12-12-6 |
CGF18-18-6 |
CGF24-24-8 |
CGF32-32-10 |
|
Rinsing Head No |
8 |
12 |
18 |
24 |
32 |
|
Filling Head No |
8 |
12 |
18 |
24 |
32 |
|
Capping Head No |
3 |
6 |
6 |
8 |
10 |
|
Rated Capacity (500ml) |
2000BPH |
4000BPH |
7000-8000BPH |
10000-15000BPH |
15000-20000BPH |
|
Overall Size |
1900*1420* 2000mm |
2200*1600* 2300mm |
2450*1900* 2300mm |
2750*1180* 2400mm |
4000*2300* 2300mm |
|
Weight |
1.5T |
2.2T |
3.0T |
4.0T |
8.0T |
|
Power (KW) |
3.0kw |
3.5kw |
4.0kw |
4.8kw |
7.6kw |
|
Rated Voltage |
Customized |
Customized |
Customized |
Customized |
Customized |
General structure of water bottle filling machine for ref
Ion Re-birth Device
V
Raw Water Source > Booster Pump > Quartz Sand Filter > Active Carbon Filter > Water Softener>RO
Unit > UV Sterilizer > Pure Water Storage Tank < Ozone Machine
(Steam Generator)
V
Bottle Blowing System > Monoblock Water Filling Machine > Labeling machine > (Shrinking Tunnel)>Code
Printer > Shrink Wrapping Machine
*** *** *** *** *** *** *** *** ***
